Flotec Multi-Stage Pump User Manual

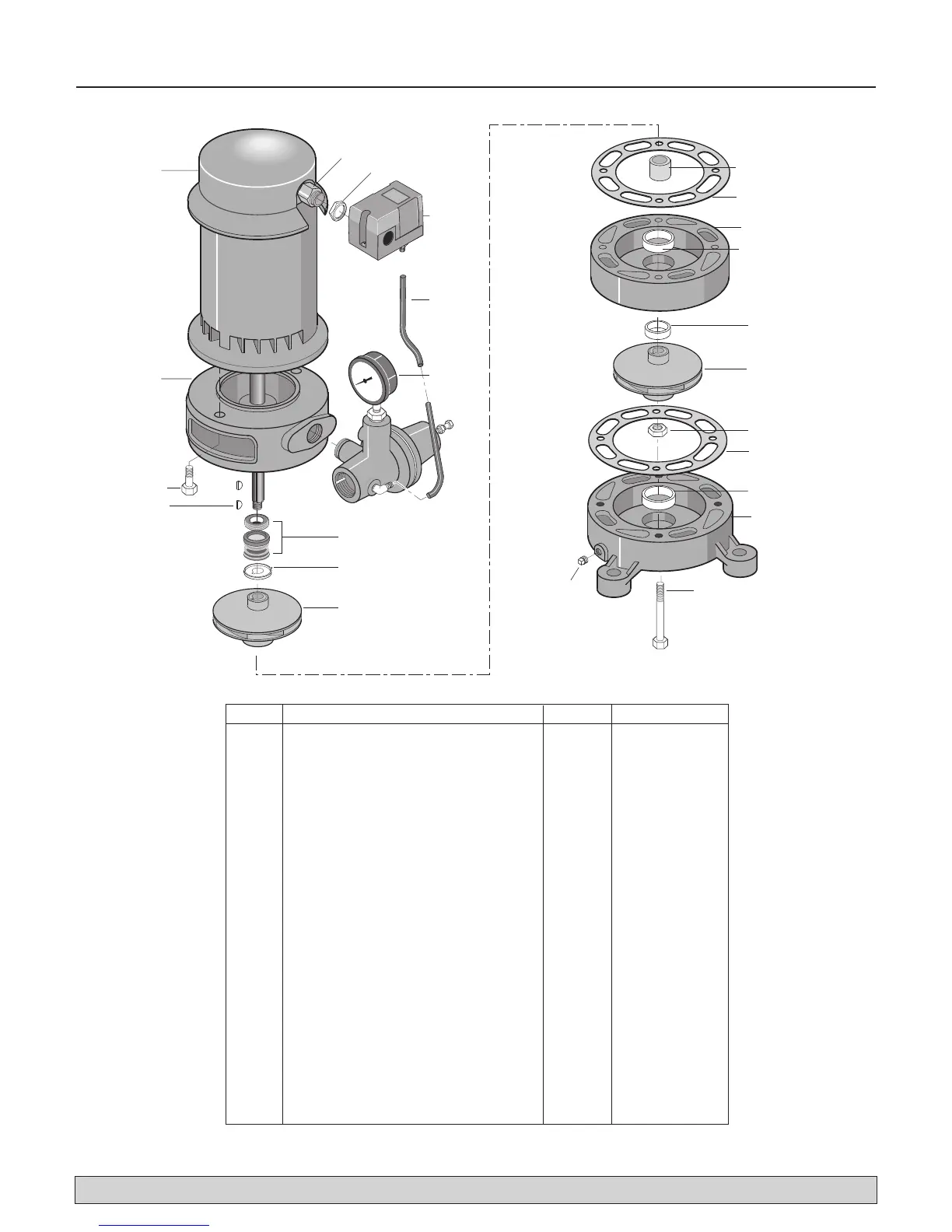

Repair Parts 12
For parts or assistance, call Flotec Customer Service at 1-800-365-6832
20
100
80
60
40
9
10
1
3
4
5
6
7
8
2
11
21
19
18
14
14
16
16
17
13
15
20
1281 0705
12
12
* Standard hardware item, available locally.
Key No. Part Description Qty. FP4432-01
1 Motor 1 A300EH
2 1/2" Connector 1 U43-13C
3 1/2" Locknut 1 *
4 Pressure Switch 1 U217-1228
5 1/4" Tubing 1 *
6 Pressure Regulator Assembly 1 J212-24E
7 Pump Adapter 1 L2-16A
8 3/8-16 x 1" Capscrew 2 *
9 #3 Woodruff Shaft Key 2 U65-15SS
10 Shaft Seal 1 17351-0101A
11 Spring Holder 1 J24-11
12 Impeller 2 J105-76P
13 Impeller Spacer 1 J43-23
14 Gasket 2 J20-11
15 Intermediate Volute 1 J101-26
16 Wear Ring 2 J23-10
17 Wear Ring 1 J23-11
18 Impeller Nut 1 U36-175D
19 Base Volute 1 J101-33
20 3/8 - 16 x 4-1/4" Capscrews 2 *
21 1/4" NPT Square Head Pipe Plug 1 *
