Before Using the Machine
212601 14/03/2023
31

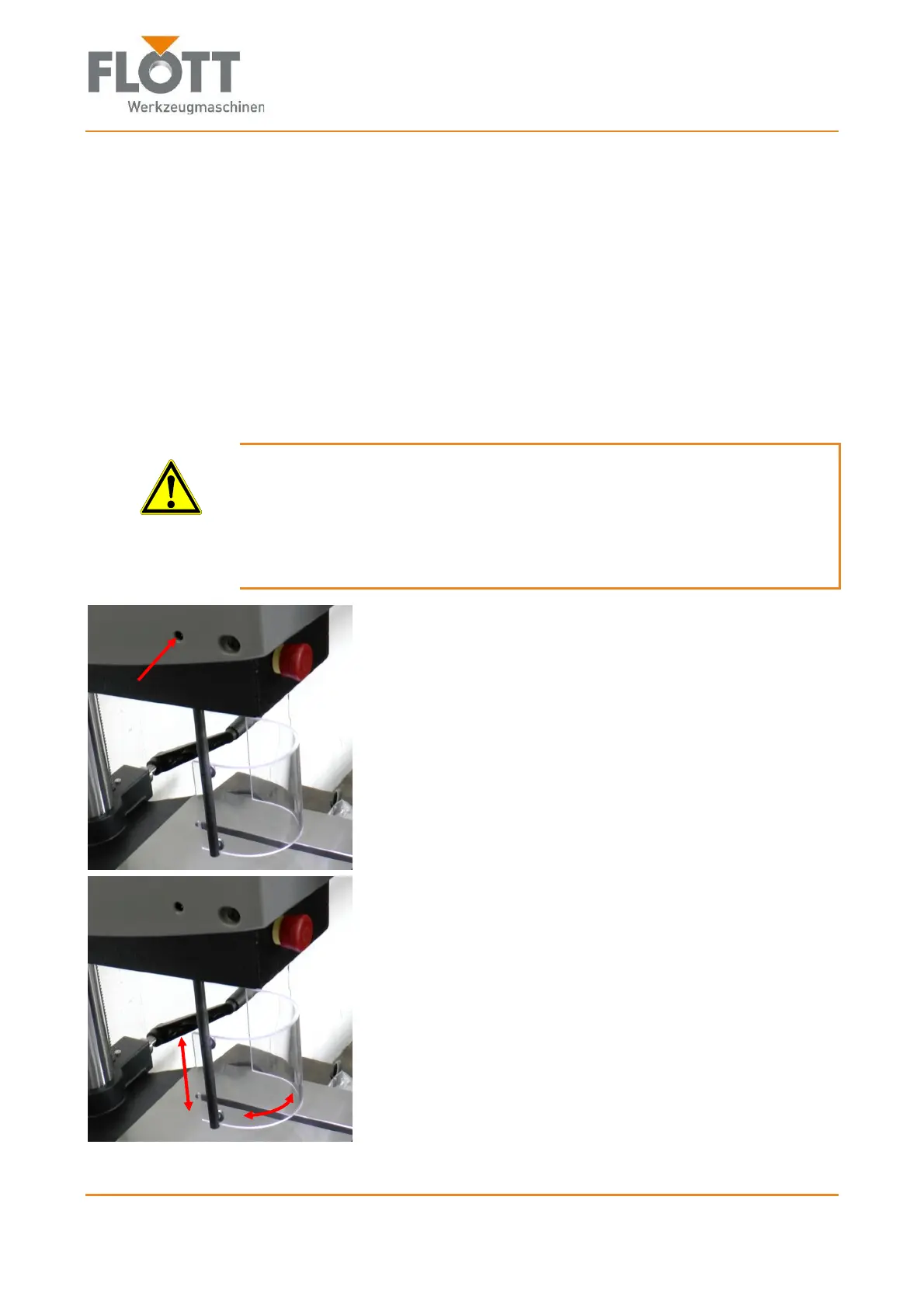

5.1.3 Set Drill Guard and Press
The drill guard is an important safety device of the machine and can be both
adjusted in height and swung sideways.
For the machining process, the height of the drill guard must be set correctly
and swung as far as possible in the direction of the cutter.
Adjusting the drill guard in height
The drill guard is fixed in the machine housing with a size 3 hexagon socket
screw. The fixation should be adjusted so that the drill guard
Remains in its respective position
Manually pushed up or pulled down to the desired position.
Warning
Danger of incorrectly set drill guard.
Hot drill swarf can fly around if the drill guard is set incorrectly. This can cause
serious injuries.
Therefore, adjust the drill guard to the height of the workpiece before each
machining operation.
1. If necessary:
Tighten the hexagon socket screws size 3 only so that the
drill guard can be pushed up or pulled down by hand to
the desired position.
Tighten the hexagon socket screw = counter clockwise
Loosen the hexagon socket screw = clockwise
The clamping of the drill guard bracket must not be
overtorqued
The drill guard must not slide down by its own weight.
2. Carefully adjust the height of the drill guard to the desired
position with both hands. Easy turning of the drill guard
simplifies this process.
