Before Using the Machine
32
14/03/2023 212601

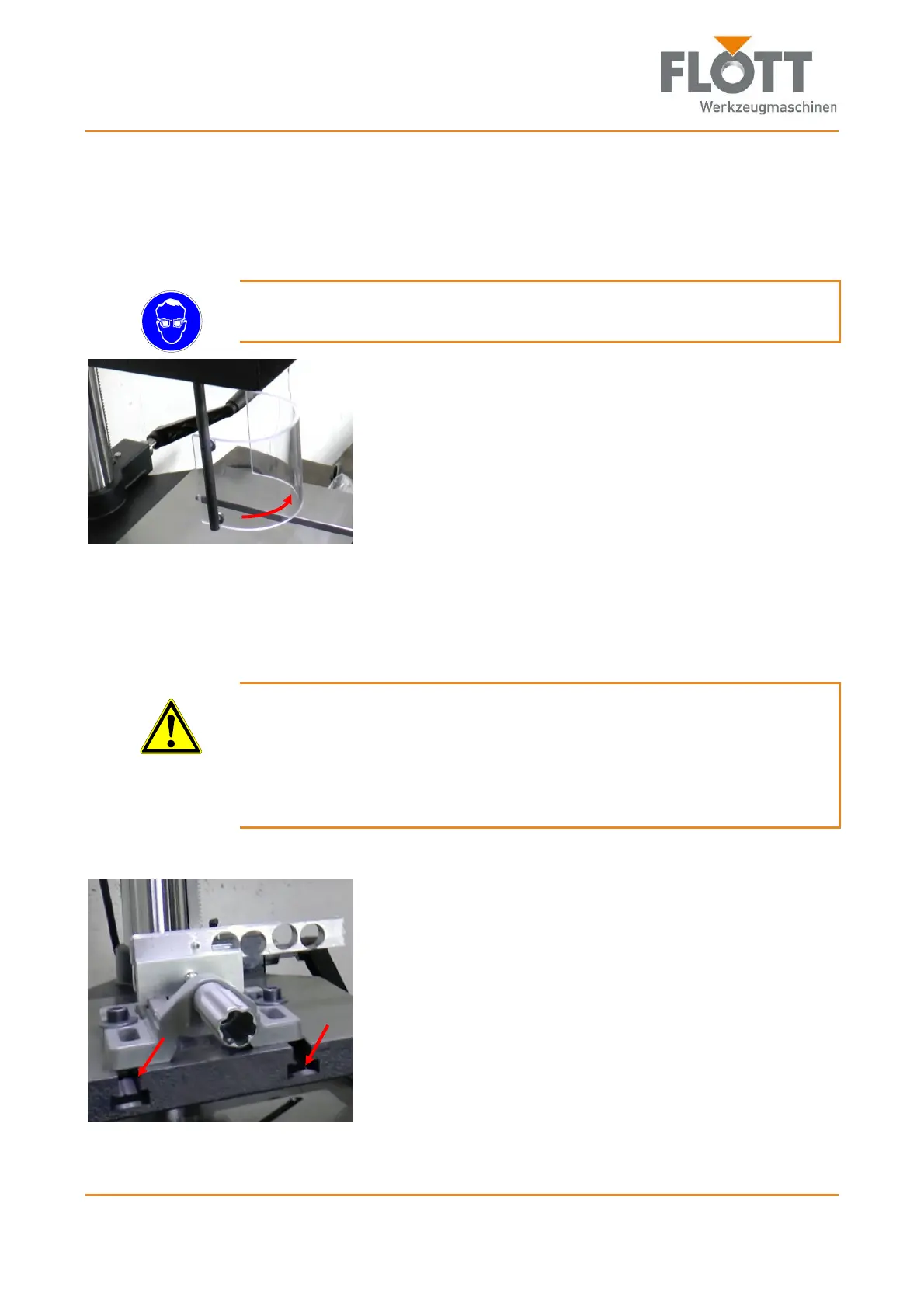

Operating drill guard
The drill guard is equipped with a protective switch in the machine housing.
Only when the drill guard is swivelled to its protection position, the protective
switch is activated and only then is released by the control system for opera-
tion.
Use safety goggles
Always wear the necessary goggles when working on and with the machine!
Before starting the machine, swivel the drill guard into its
protection position in front of the cutter.
5.1.4 Installing Machine Vice
The drilling table is used to safely secure the workpiece to be machined.
Clamping jaws or a vice can be secured with the T-blocks in the T-recesses in
the drilling table. These aids are used to secure the workpiece against rota-
tion.
Warning
Danger due to unsecured workpiece.
A sudden jamming of the cutter in the workpiece can cause an unsecured
workpiece to strike and cause injury.
Secure the workpiece to be machined against rotation by clamping it on the
drilling table or by a suitable stop.
The mounting of a machine vise to the drilling table is described below.
1. Slide the machine vice with the T-blocks into the T-
recesses of the drilling table.
2. Align the machine vice so that it his positioned centrally
under the spindle.
3. Hand-tighten the T-blocks to secure the machine vise to
the drilling table.
The vice or workpiece must be aligned in the vice relative to
the cutter for each machine operation.
