9.3 Installing/Removing the Protective Hood
In order to carry out the various maintenance and repair work on the electrical
system and the drive unit, the protective hood of the machine must be disman-
tled.
Danger
Danger by electric voltage.
Maintenance work on electrical components may only be carried out by au-
thorized personnel (electricians). Make sure that the electrical equipment of
the machine is de-energized for the period of maintenance.
Wait at least 15 minutes before removing the protective hood of the machine.
The DC bus capacitors must first discharge themselves independently during
this period.

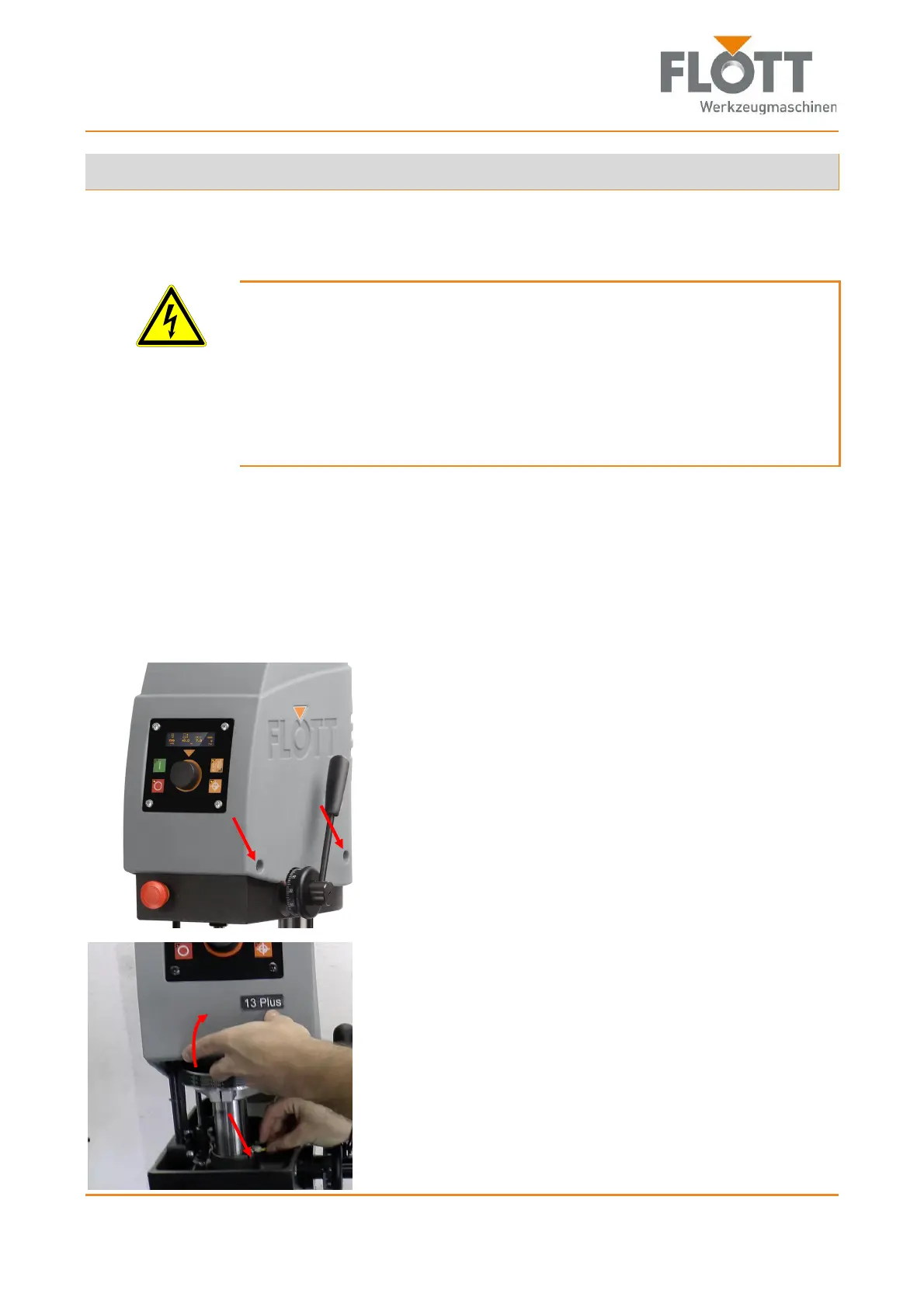

9.3.1 Remove Protective Hood
1. Wait at least 15 minutes before removing the protective
hood. Only then will the capacitors be discharged under
the protective hood.
2. Swing the drilling table to the right to deposit the protec-
tive hood on it.
Alternatively, you can also use a tool trolley or other suit-
able facility.
3. Remove the 2 side Phillips screws from the protective
hood.
4. Carefully tilt the protective hood slightly backwards and
hold it, so that you can reach under the protective hood
from the front or the side.
5. Remove the plug with the other hand by pressing and
pulling the release button on the plug.
The other plug can remain connected.
