Before Using the Machine
34
14/03/2023 212601

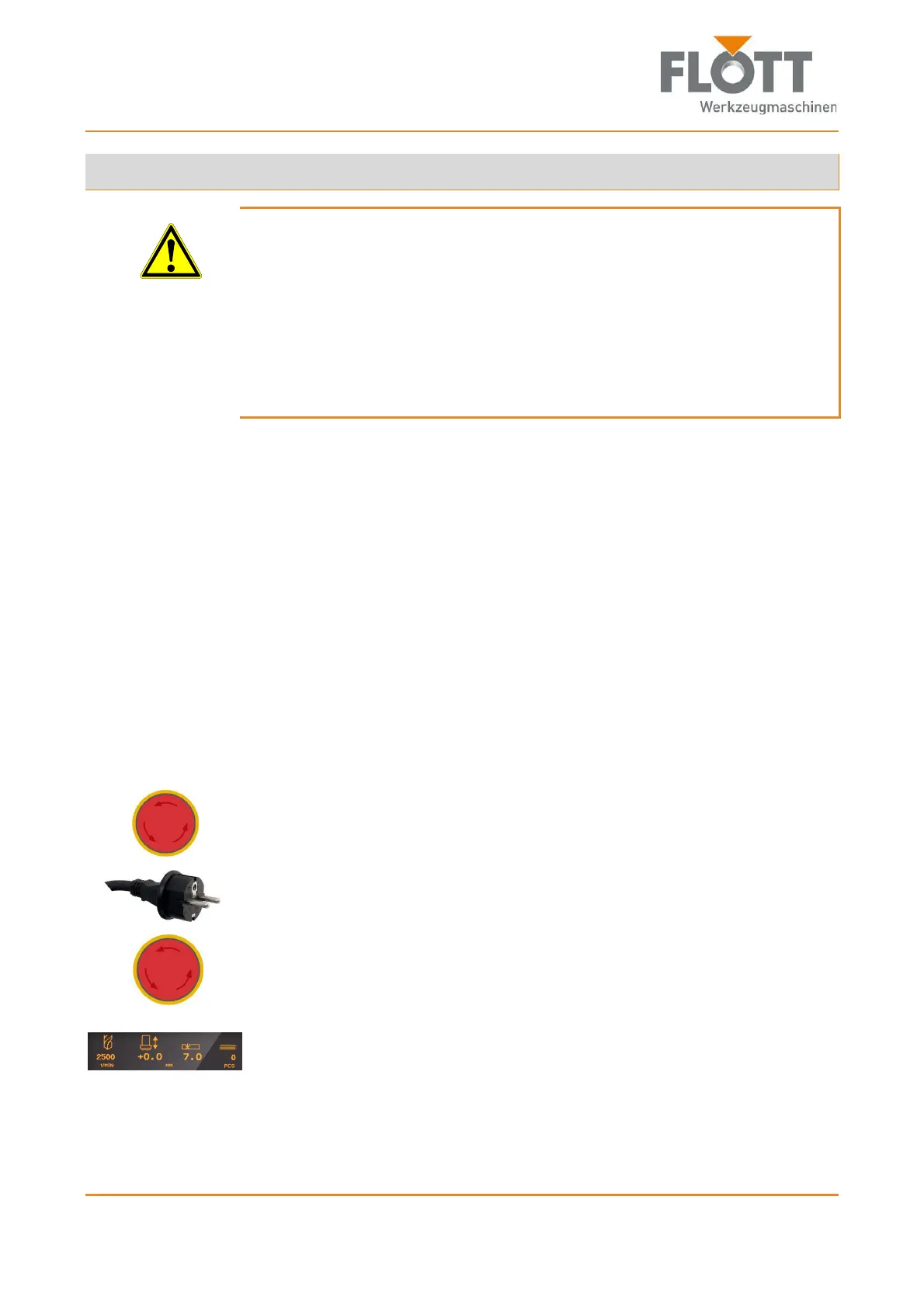

5.3 Connecting the Machine Electrically
Warning
Danger due to faulty electrical connection.
Observe the electrical connection values in the operating manual and the rat-
ing plate when connecting the machine.
Excessive connection voltage may cause operator injury and damage to
the machine.
If the connection voltage is too low, the machine motor may be damaged.
The earthing contact plug has an earthing conductor and may only be re-
placed with an original component.
If local and national regulations prescribe upstream protection by a residual-
current protective device (RCD), you must use a type A device for single-
phase converters and a type B device for three-phase converters according
to IEC 60755. This device must have the following characteristics:
Filtering high-frequency currents,
A time delay which prevents tripping caused by loading capacitance and
stray capacitance on power-up. This delay is not possible with 30 mA de-
vices. In this case, select devices that are insensitive to unintentional trip-
ping.
1. Make sure, that
A protective conductor terminal is present
There is a mains fuse of 16 A
The differential current (leakage current) is <7.5 mA.
Note: Due to the construction the leakage current is > 3.5 mA, caused by
an EMC filter. See also the following points from DIN VDE 0701-0702:
5.5 Measurement of the protective conductor current and Annex D:
Of 5.5 Measurement of the protective conductor current.
2. Before connecting the machine to the power supply, as a precaution press
the emergency stop button to prevent undesired start-up of the machine.
3. Insert the earthing contact plug into a suitable socket of the mains supply.
4. Unlock the emergency stop button by turning it counter clockwise.
As soon as the emergency stop button is unlocked,
The machine control system reboots
The display and the drill light are switched on and
The control system is started. There is no rotational movement and the
display is turned on. The machine is now correctly connected to the
power supply and can be used.
