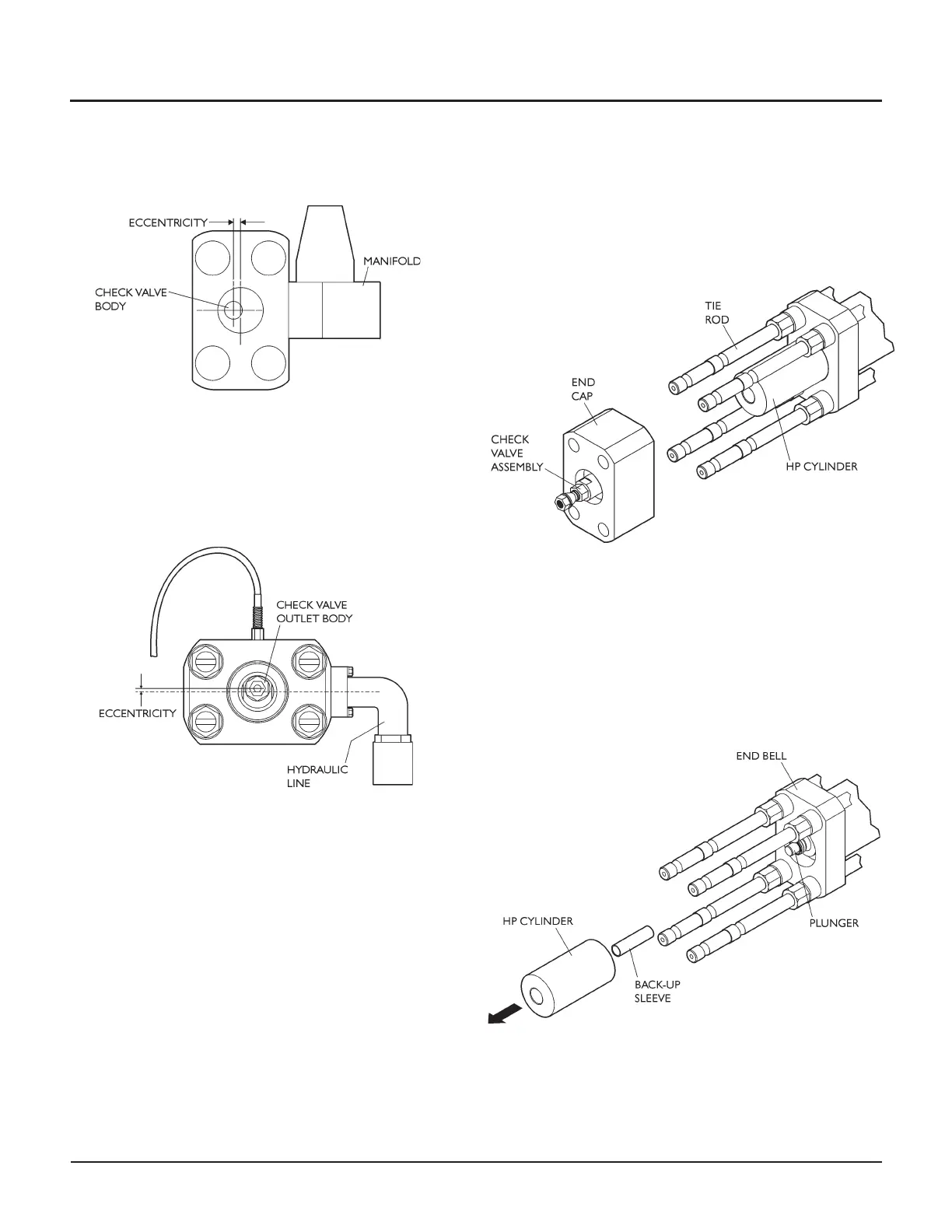

6. At one end of the intensifier, remove the end cap from
the tie rods. The check valve assembly will remain in
the end cap due to the compression of the o-ring on
the check valve body.
Note: Unless check valve maintenance is necessary
(Maintenance Procedure D) it is not necessary to re
-
move the check valve assembly from the end cap.
7. Remove the high-pressure cylinder and filler tube from
the intensifier end bell. Rocking the cylinder gently
while pulling outward is helpful in separating the cylin-
der from the end bell. When the cylinder is clear of
the end bell pull it straight out to avoid the ceramic
plunger.
