Maintenance Procedure A
Using the Pressure Loading Tool to Assemble and
Disassemble the Intensifier
Tools required
Pressure loading tool kit (042512-3)
½in.drivetorquewrench
½in.driveratchet
1
5
8
in. crow’s foot wrench (½ in. drive)
1
5
8
in. socket (½ in. drive)
1½ in. socket (½ in. drive)
1 in. open-end wrench
7
8
in. open-end wrench
13
16
in. open-end wrench
Food grade grease (A-4689)
Blue Lubricant (A-2185)
Anti-seize (A-10039)

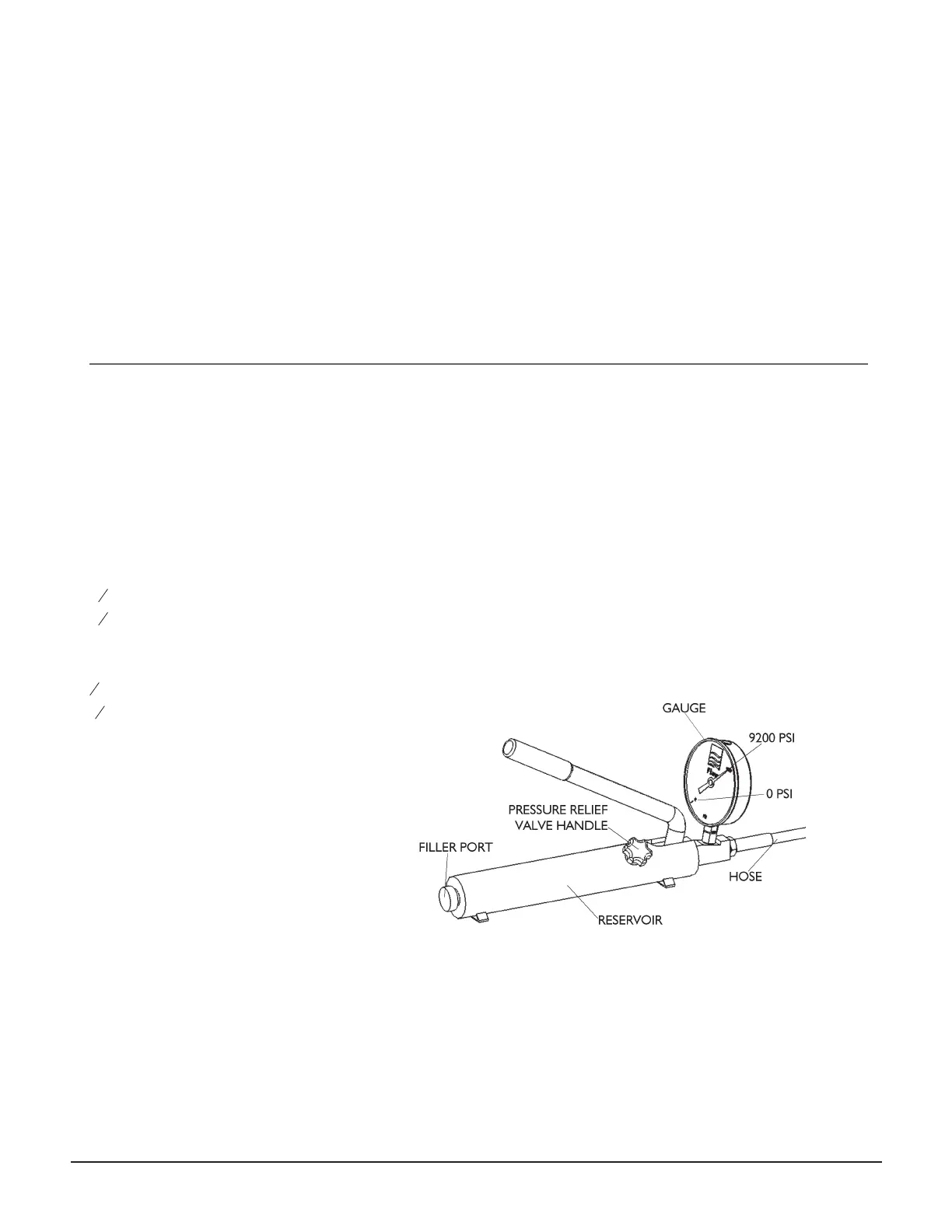

The pressure loading tool
The following procedures use a special tool created especially for the
94K HyperPressure intensifier. You must read and understand these
usage notes before attempting any maintenance procedure that re-
quires the use of this tool. Failure to do so could damage the tool
and/or the component being serviced. Such damage is not covered
by warranty.
© Flow International Corporation M-376 | 17
