12. Securely bolt the fixture plate (014030-1) to a sturdy
workbench.
WARNING
Failure to properly mount the intensifier assembly
fixture or secure the intensifier to the intensifier
fixture could allow the parts to unexpectedly
tip and fall, causing serious bodily injury.

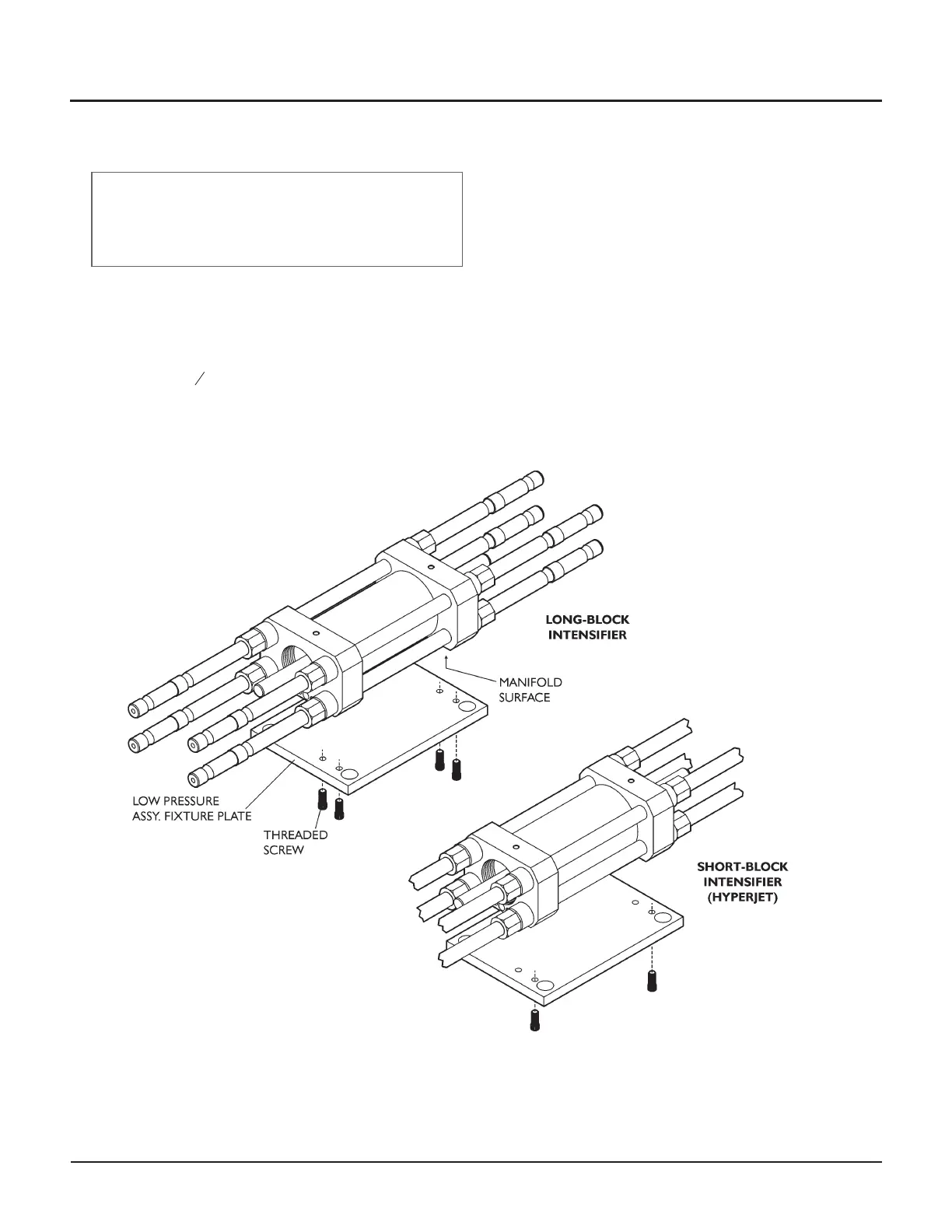

Place the intensifier on the low-pressure assembly
fixture plate with the manifold surface facing down.
Secure the intensifier to the fixture from below:
•
For the long-block intensifier (StoneCrafter),
use four
3
8
-16 UNC threaded screws.
•
For the short-block intensifier (HyperPressure),
use two 5/8-18 UNF bolts
© Flow International Corporation M-376 | 51
CHAPTER 3
Maintenance Procedures
