STRADA GENERATION3 – S5 - INSTALLATION MANUAL
27/66
For a secure installation, respect the positioning of the nuts (6 cm +/- 0.5cm away from
the ends of the anchoring rods in order to prevent the rods to interfere with battery or
electrical equipment.).
F. Inject the chemical anchoring resin in the 4 holes.
G. Install the base equipped with the threaded rods into the holes, and check the
horizontal alignment of the base with a spirit level.
H. Check that the threaded rods are 10 +/-0.5cm above the floor.
I. Let dry according to the user guide of the chemical anchoring kit.

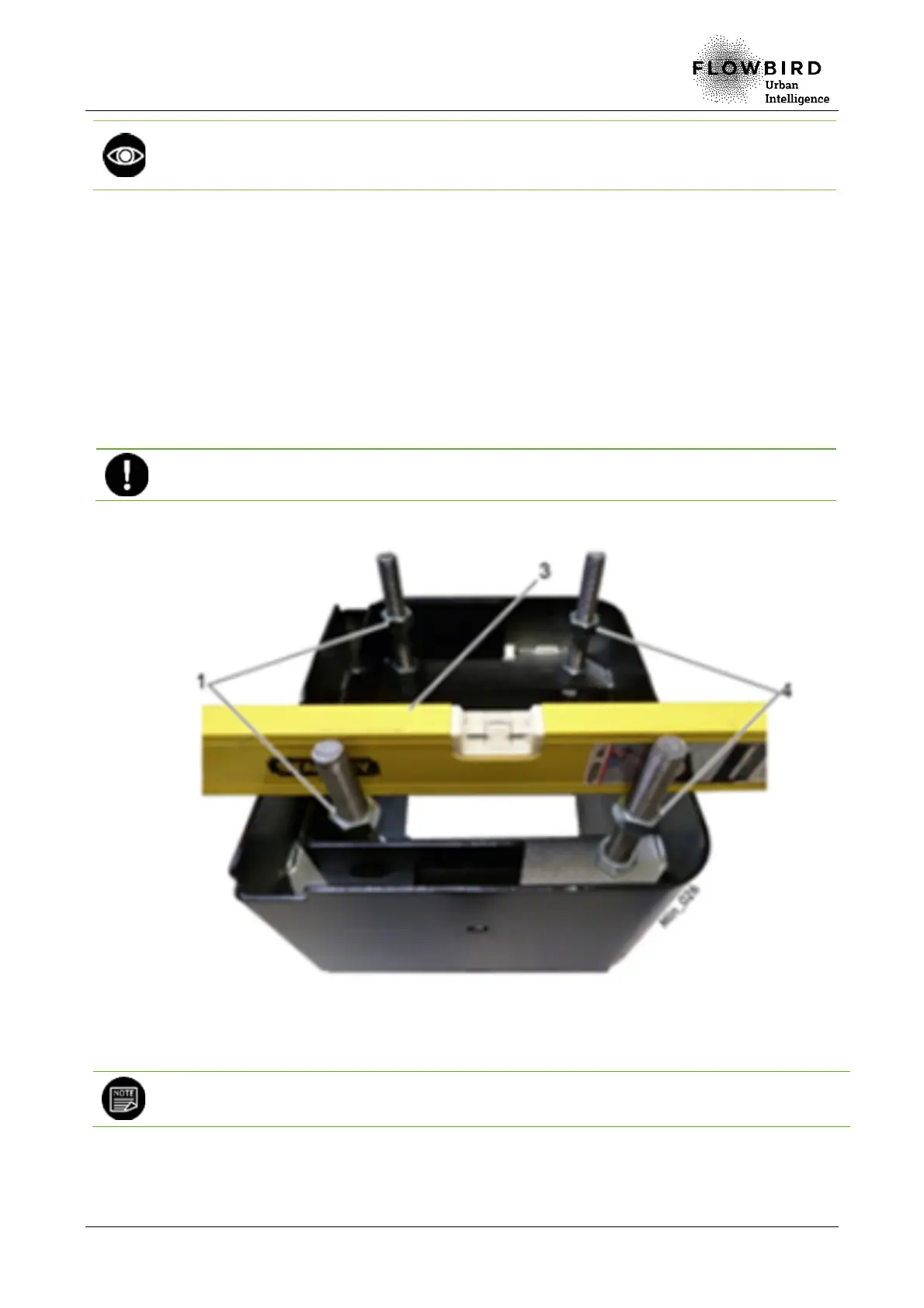

J. When the chemical anchoring is dry, screw 4 M16 nuts (1/4) on the threaded rods
aligned with the base top and check the horizontal alignment with a spirit level (3).
The terminal is installed on the nuts, not on the base.
Installation of the lower nuts
These 4 nuts that allow the alignment of the terminal are called "lower nuts" in the rest of
this document.
