STRADA GENERATION3 – S5 - INSTALLATION MANUAL
39/66
6.3.5 In-hole anchoring (sloping ground)
This type of installation allows the installation of the terminal on a sloping ground up to 25°
= 46%.
For installation on a sloping ground:
The formwork is mandatory.
The protective plate on the anchoring is mandatory.

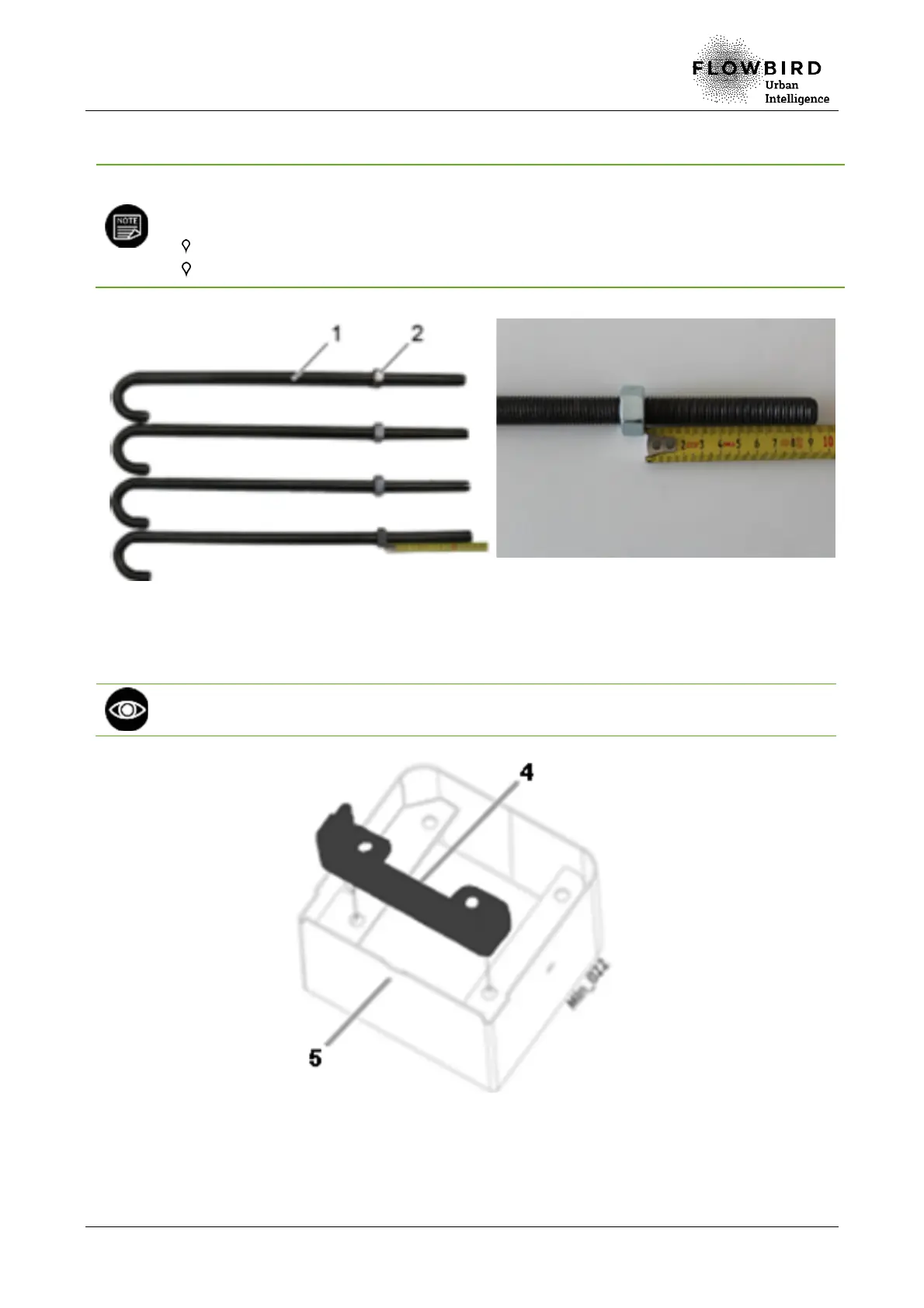

A. Screw a M16 nut (2) up to 9 cm from the end of each anchor rod (1).
Preparation of the anchor rods
B. Install the protective plate (4) in the base (5), against the front side.
When placing the protective plate, respect the orientation shown in the illustration below.
Protective of anchoring
