STRADA GENERATION3 – S5 - INSTALLATION MANUAL
40/66
C. Insert the anchor rods (1) in the base (5) through the anchoring protective plate (4)
and fix the rods with 4 M16 nuts (2) so that the ends of the rods are 9 cm +/-1 away
from the anchoring brackets (3).

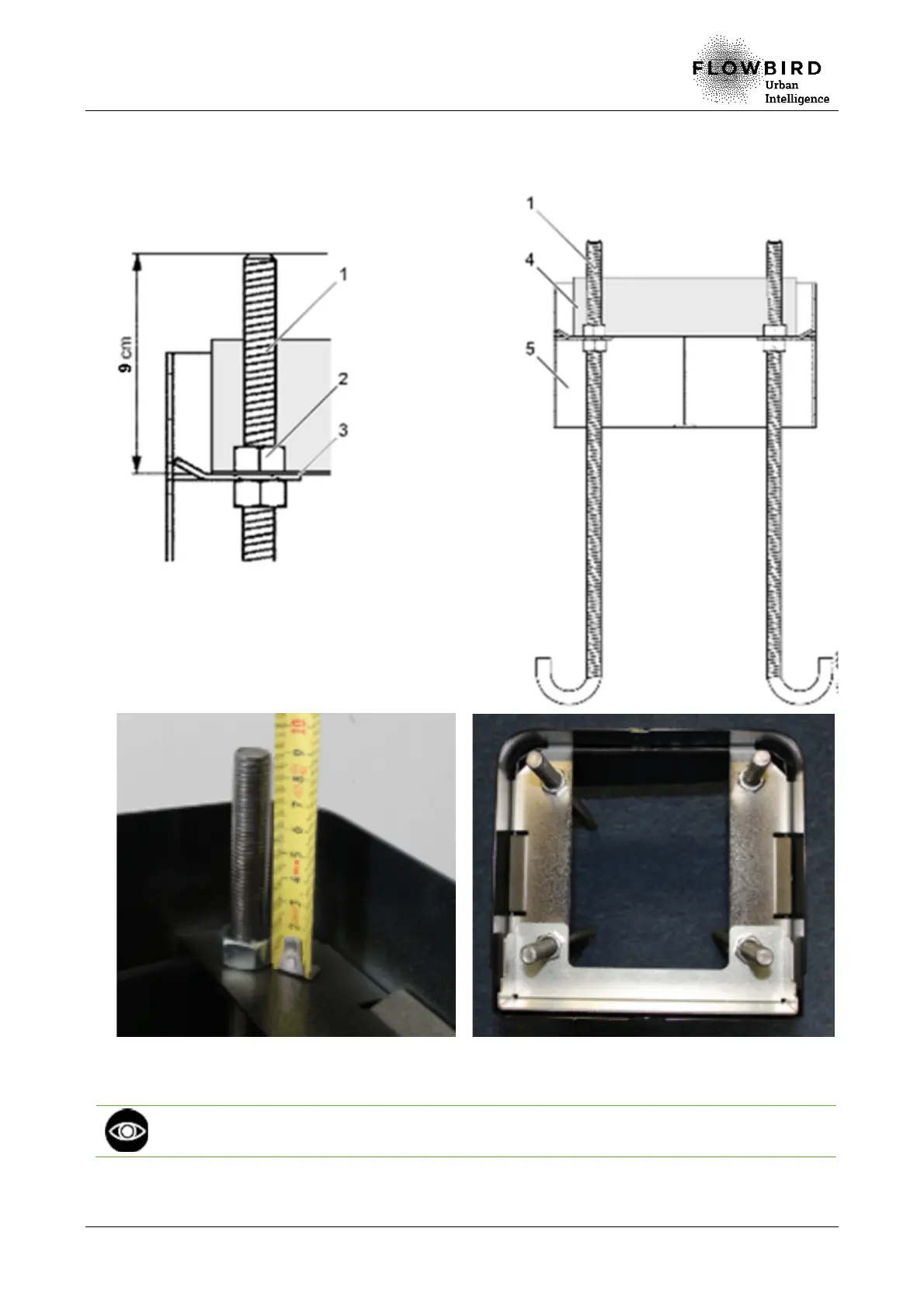

Fixing the threaded rods to the base
For a secure installation, respect the positioning of the nuts (9cm +/- 1 away from the end
of the anchoring rods).
