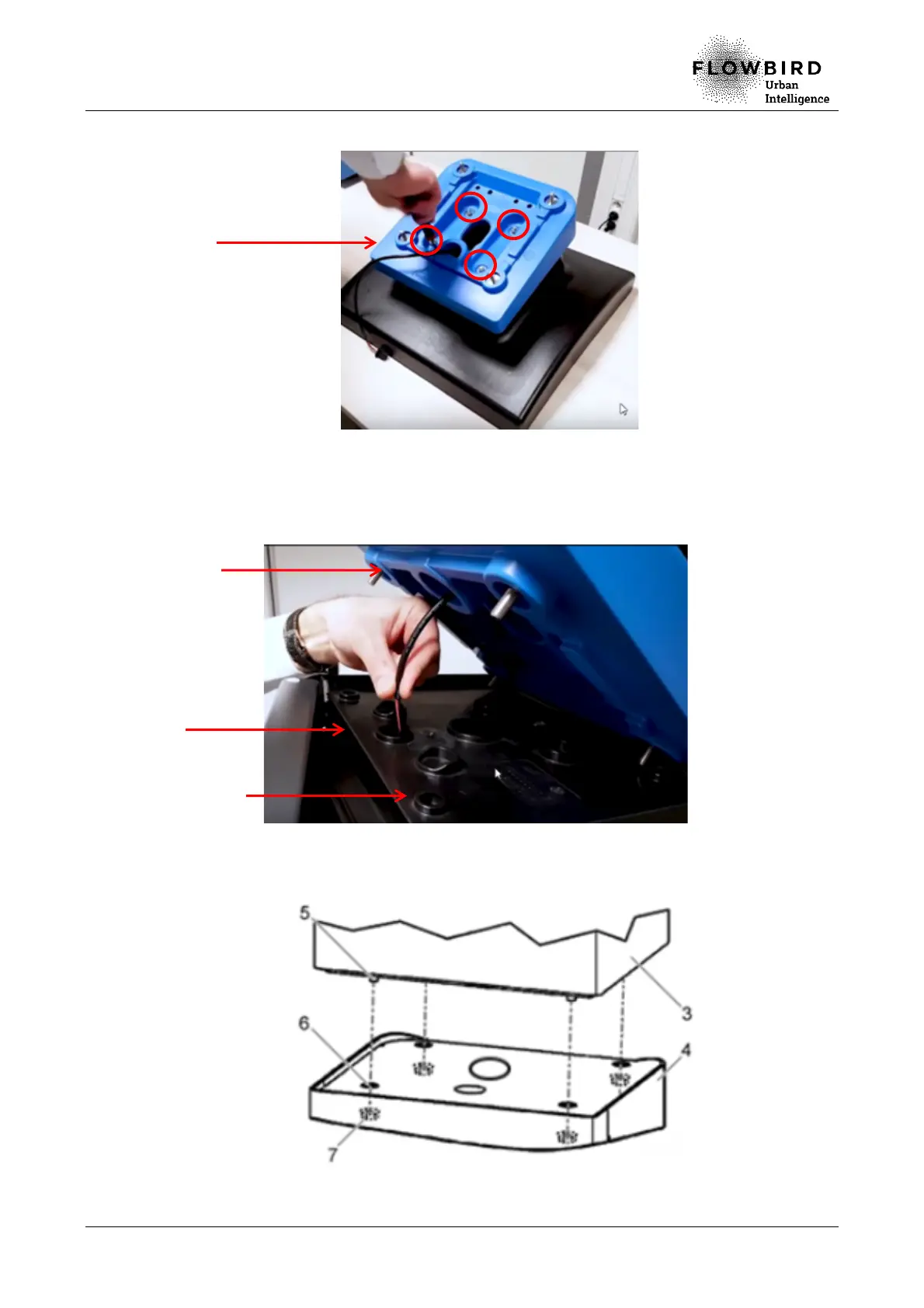

C. Install the solar top on the base (3) and fix it with 4 nuts and 4 washers.
D. Install the solar top with the base (3) on the housing (4) by inserting the 4 threaded
rods (5) in the 4 dedicated apertures (6) in the housing.
E. Insert the solar panel strand in the dedicated aperture in the housing (or in the
optional zone indicator)
F. Use a wrench 13 to tighten softly the 4 nuts (7) to the base from the underside of the
housing.
