STRADA GENERATION3 – S5 - INSTALLATION MANUAL
59/66

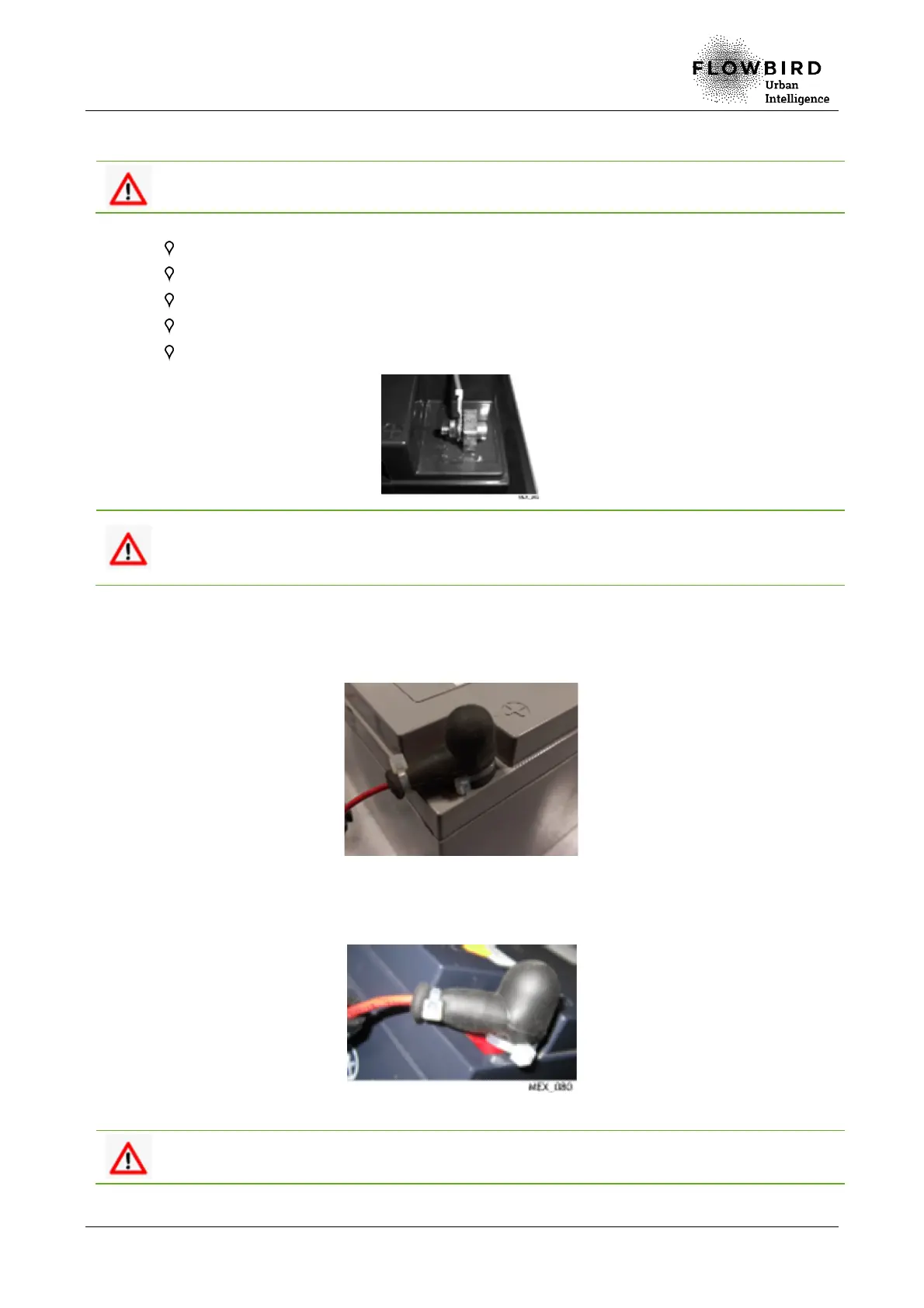

7.8.2.3 Preparing the batteries
This procedure must be carried out in a workshop.
A. To connect the 2 terminals, stack as follows (from the outside of the battery):
screw,
battery terminal,
serrated washer,
strand terminal,
nut with serrated base.
The cap is a safety part, it isolates the battery terminals from the conductive parts
of the housing. Before installing the battery in a machine, it is imperative that the
cap(s) on the terminals are correctly installed.
B. The cap should completely cover the battery terminal.
C. Put caps on the two terminals.
D. Put a tie to waterproof the connection (as indicated on the figure below).
E. Check that it is fixed correctly.
F. Put a third tie at the base of the red terminal protection of the 42 Ah battery (as
indicated on the figure below).
G. Cut the ties and slightly curve the terminals toward the inside of the battery.
Both material and human damage resulting from non-compliance with these safety
measures cannot be attributable to Flowbird.
