LR, LRV, LLR and LR-S USER INSTRUCTIONS ENGLISH 71569088 08-10
Page 36 of 48 flowserve.com
8 PARTS LISTS AND DRAWINGS

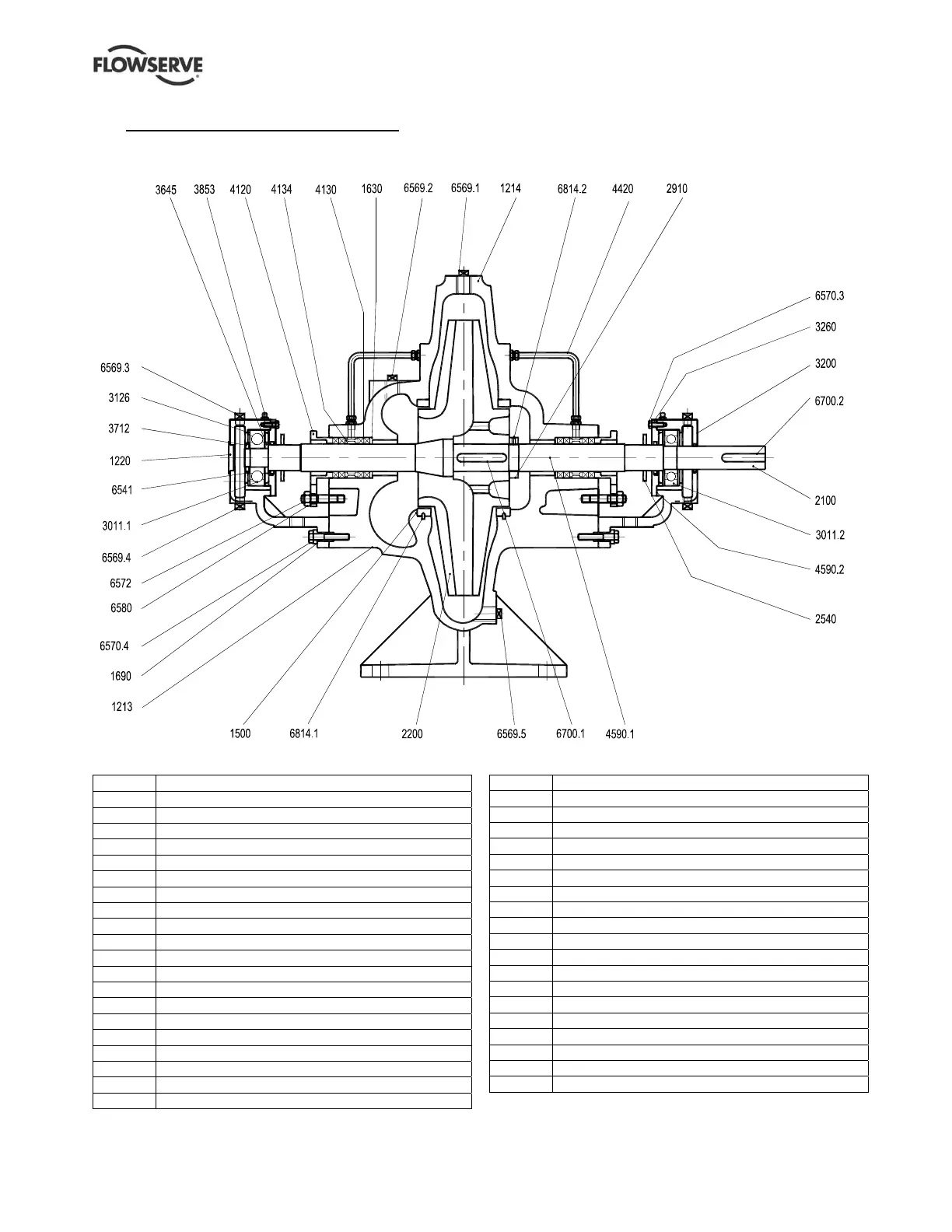

8.1 Sectional drawings – LR single entry impeller, grease lubricated, gland packed
(Drawing taken from A336/044, sheet 1, rev -)
8.1.1 Parts list – LR single entry impeller
Ref. no. Description
1213 Casing half - lower
1214 Casing half - upper
1220 Cover
1500 Casing wear ring
1630 Throttling bush
1690 Bush (dowel)
2100 Shaft
2200 Impeller
2540 Flinger (liquid)
2910 Shaft nut
3011.1 Ball bearing
3011.2 Ball bearing
3126 Shim
3200 Bearing housing
3260 Bearing cover
3645 Disc spacer *
3712 Bearing nut
3853 Grease nipple
4120 Gland
4130 Gland packing
4134 Lantern ring
4420 Sealing pipe
4590.1 Gasket
4590.2 Gasket
6541 Lockwasher
6569.1 Plug
6569.2 Plug
6569.3 Plug
6569.4 Plug
6569.5 Plug
6570.1 Screw
6570.2 Screw
6570.3 Screw
6570.4 Screw
6572 Stud
6580 Nut
6700.1 Key
6700.2 Key
6814.1 Grub screw
6814.2 Grub screw
* Fitted on 2.1/2LR13 pump size only
