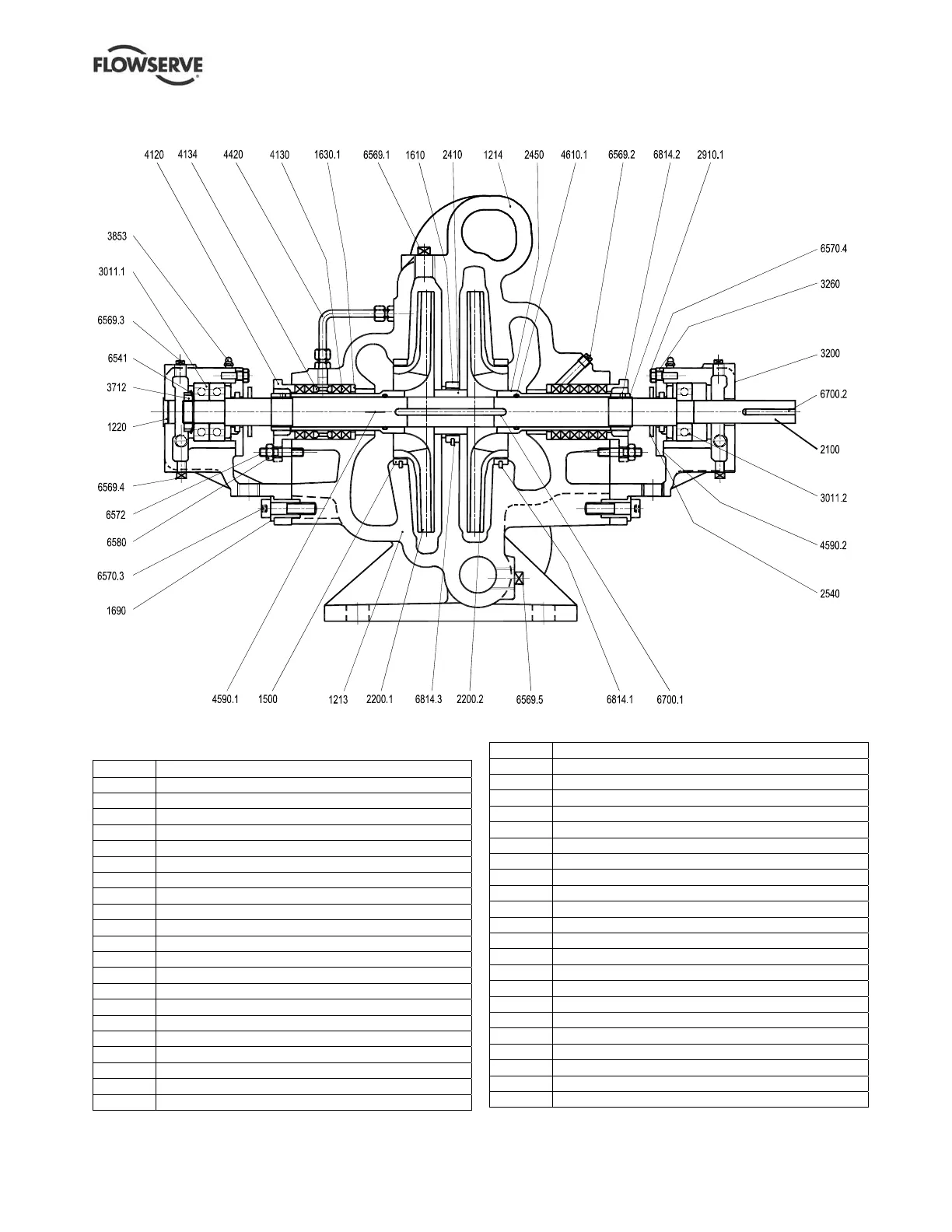

8.3 Sectional drawings – LLR grease lubricated, gland packed
(Drawing taken from A336/042, sheet 1, rev -)
8.3.1 Parts list – LLR
Ref. no. Description
1213 Casing half - lower
1214 Casing half - upper
1220 Cover
1500 Casing wear ring
1610 Interstage bush
1630.1 Throttling bush
1690 Bush (dowel)
2100 Shaft
2200.1 Impeller (first stage)
2200.2 Impeller (second stage)
2410 Interstage sleeve
2450 Shaft sleeve
2540 Flinger (liquid)
2910.1 Shaft nut
3011.1 Ball bearing
3011.2 Ball bearing
3200 Bearing housing
3260 Bearing cover
3712 Bearing nut
3853 Grease nipple
4120 Gland
4130 Gland packing
4134 Lantern ring
4420 Sealing pipe
4590.1 Gasket
4590.2 Gasket
4610.1 O-ring
6541 Lockwasher
6569.1 Plug
6569.2 Plug
6569.3 Plug
6569.4 Plug
6569.5 Plug
6570.1 Screw
6570.2 Screw
6570.3 Screw
6570.4 Screw
6572 Stud
6580 Nut
6700.1 Key
6700.2 Key
6814.1 Grub screw
6814.2 Grub screw
6814.3 Grub screw
