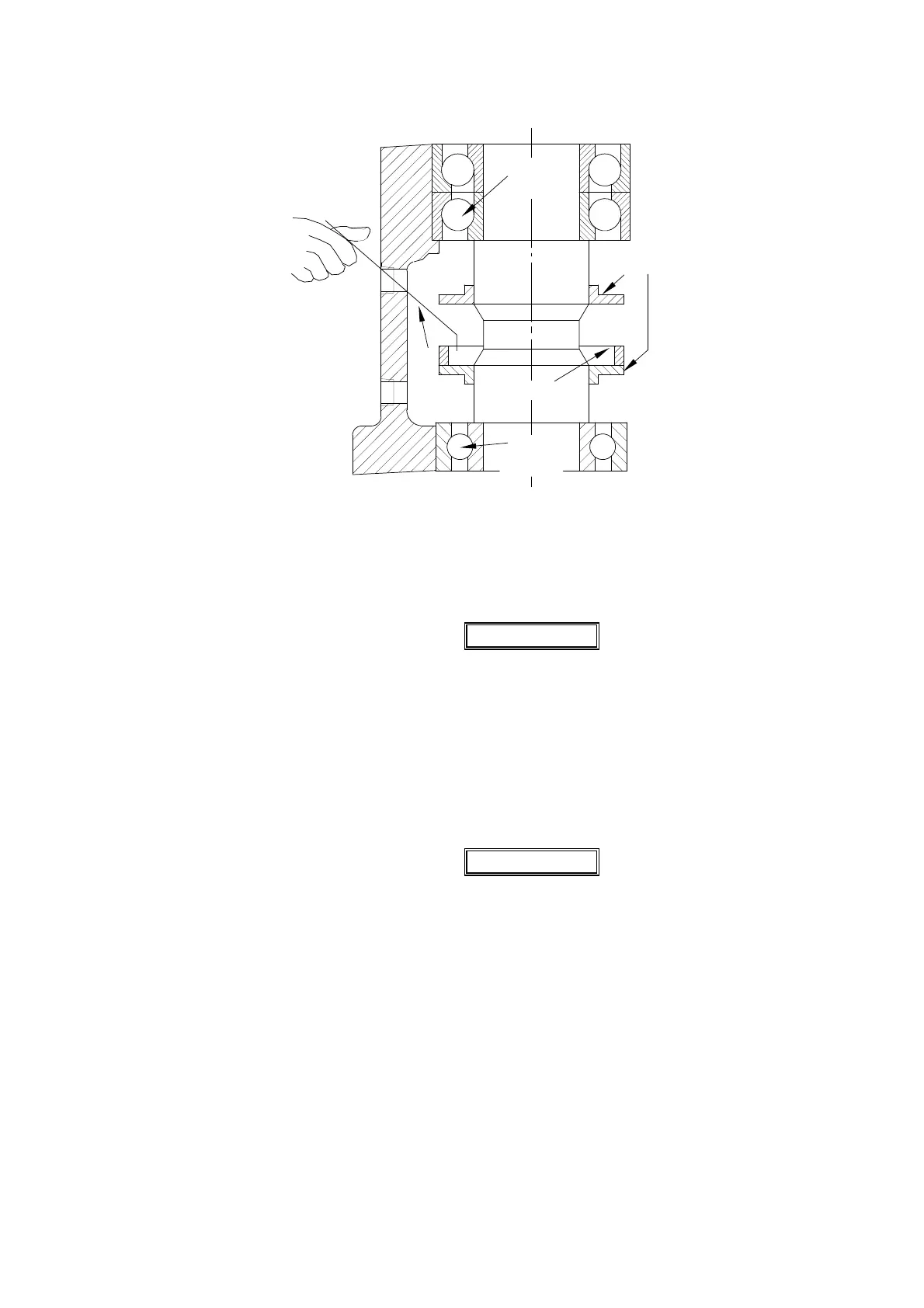

Oil

23. Remove the shaft assembly from coupling end of bearing housing.

Remove labyrinth from seal end of bearing housing.

Remove o-ring from labyrinth.

CAUTION

Take care not to damage the oil rings.

24. Release locking tab of lock washer. Remove locknut and lock washer.

25. Bearings can be removed by the use of a press or puller. Bearing must be installed in the

same manner as removed. It is suggested that each bearing be marked for sequence and

direction.

NOTE

When removing bearings exert pressure on inner race only. Do not exert any pressure on outer

bearing race. (See Section 7.6).

26. Remove oil rings and oil throwers from the shaft as appropriate.

This completes disassembly.
