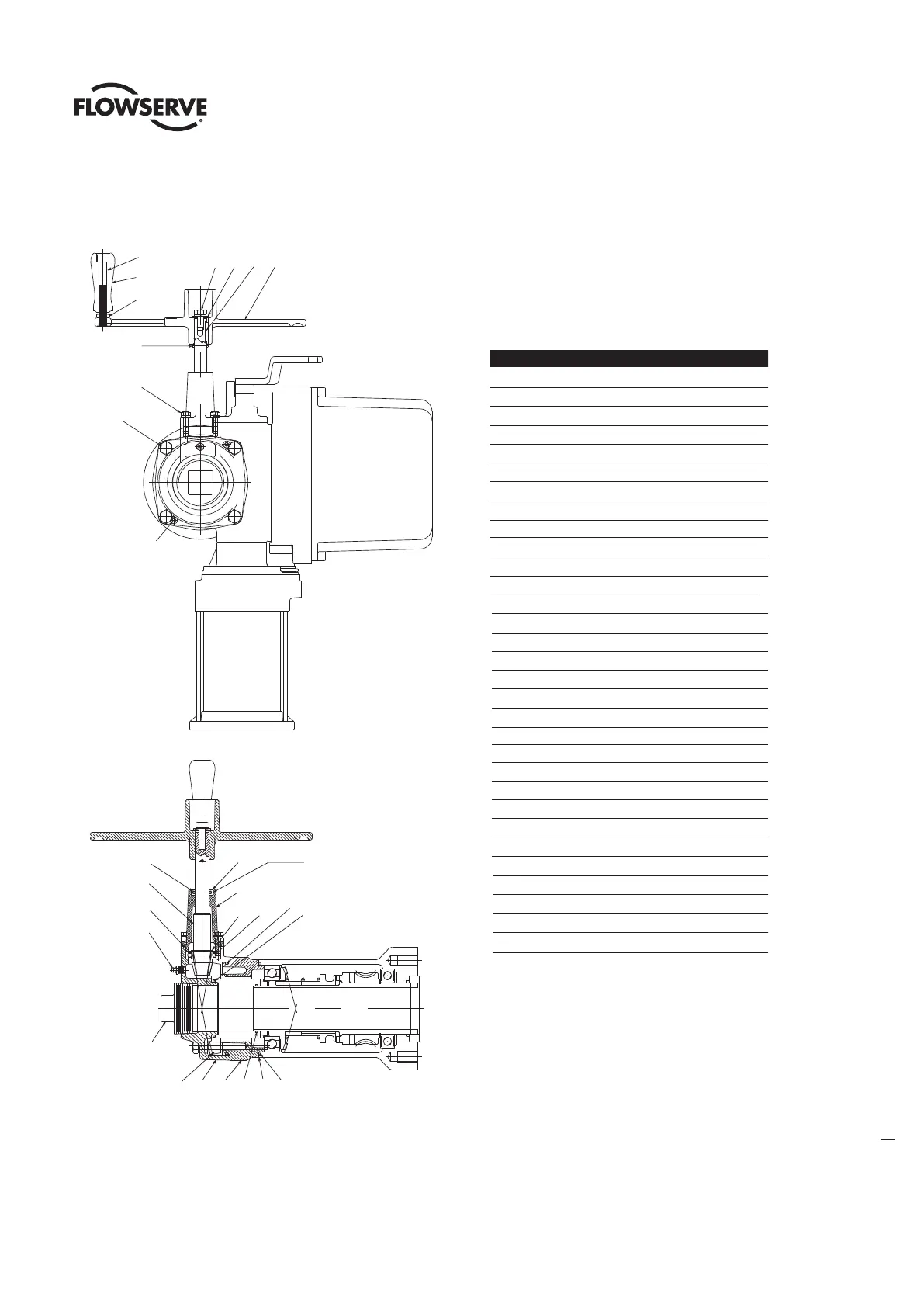

Figure 4.6 – L120-20 with side-mounted handwheel and parts list, attachment ratio 5.7:1
154
150
151
45
153
6
42-11
158-4
158-2
Note: Apply Loctite 601/609
to ID of Bearing Cap
152
169
161
158-1
158-3
160
171
44
182-2
182-1
182-3
179
&
178
181
180
157-5
157-3
&
157-4
157-6
177
157-1
&
157-2
Piece Quantity Description
6 1 Housing Cover Shim
42-11 1 O-Ring / Handwheel Mounting
44 1 Quad Ring
45 1 Pipe Plug
150 1 Bevel Housing
151 1 Bevel Housing Adapter
152 1 Bearing Cap
153 1 Bevel Gear
154 1 Bevel Pinion Shaft
157-1 4 Hex Head Cap Screw
157-2 4 Lockwasher
157-3 4 Hex Head Cap Screw
157-4 4 Lockwasher
157-5 1 Roll Pin
157-6 2 Socket Head Cap Screw
158-1 1 Quad-Ring
158-2 1 O-Ring
158-3 1 O-Ring
158-4 1 Quad Ring
160 1 Ball Bearing
161 1 Seal Insert
169 1 Retaining Ring
171 1 Grease Fitting
177 1 Handwheel
178 1 Hex Head Cap Screw
179 1 Lockwasher
180 1 Key
181 1 Retaining Washer
182-1 1 Handwheel Spinner
182-2 1 Socket Head Cap Screw
182-3 1 Hex Jam Nut
