Flowserve Limitorque L120-40 - Optional Side-Mounted Handwheel

Limitorque Actuation Systems L120 Series FCD LMENIM1201-05-A4 – 03/18
16
4.7 Optional Side-Mounted Handwheel
For actuator sizes L120-10, 20, and 40, the handwheel can be mounted on the side as shown in the
following figures.

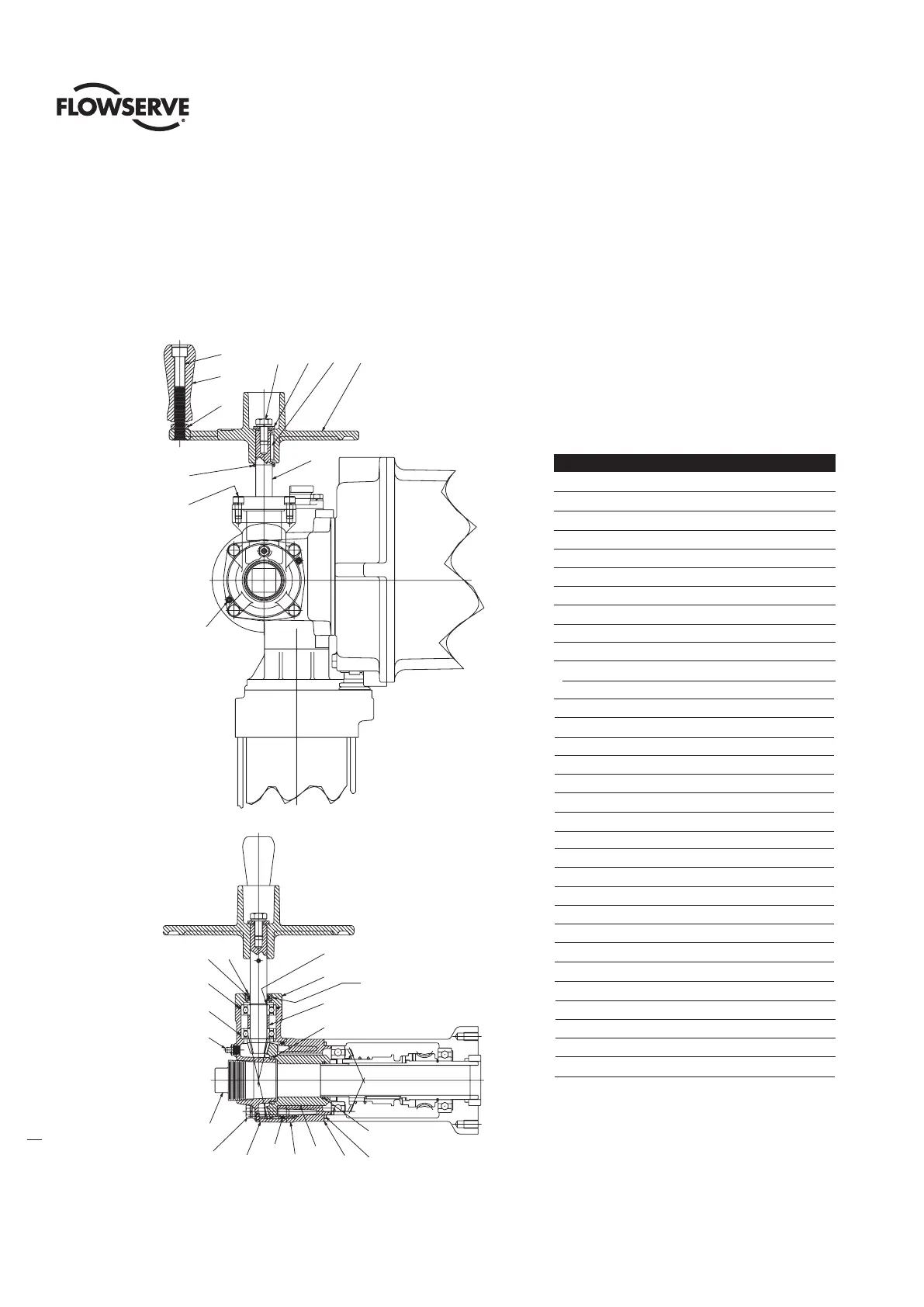

Figure 4.5 – L120-10 parts list, attachment ratio 4.2:1
Piece Quantity Description
61Housing Cover Shim
42-11 1 O-Ring / Handwheel Mounting
44 1 Quad Ring
45 1 Pipe Plug
1501Bevel Housing
1511Bevel Housing Adapter
1521Bearing Cap
1531Bevel Gear
1541Bevel Pinion Shaft
157-1 4 Hex Head Cap Screw
157-2 4 Lockwasher
157-3 2 Socket Head Cap Screw
157-4 1 Roll Pin
157-5 2 Socket Head Cap Screw
157-6 2 Lockwasher
158-1 1 Quad Ring
158-2 1 O-Ring
158-3 1 O-Ring
158-4 1 Quad-Ring
160 2 Ball Bearing
161 1 Seal Insert
164 1 Spacer
169 1 Retaining Ring
171 1 Grease Fitting
177 1 Handwheel
178 1 Hex Head Cap Screw
179 1 Lockwasher
180 1 Key
181 1 Retaining Washer
182-1 1 Handwheel Spinner
182-2 1 Socket Head Cap Screw
182-3 1 Hex Jam Nut
157-1
&
157-2
150
158-2
151
45
153
6
42-11
44
158-4
164
Note: Apply Loctite 601/609
to ID of Bearing Cap
152
169
161
158-1
158-3
160
171
182-2
182-1
182-3
178 &
179
181
180
177
154
157-4
157-3
&
157-6
157-5
