Logix 3200IQ Digital Positioner FCD LGENTB0059-01 – 10/09
2
Superior Performance and Reliability
Introducing the Flowserve Logix™ 3000MD Series Digital Positioner
The Flowserve ® Logix™ 3000MD series high-performance digital positioners utilize state-of-the-art piezo technology to
provide superior performance and reliability. This is accomplished through the use of a powerful 32-bit microprocessor and
a proprietary two-stage electronic relay (patent pending). Among the Logix 3000MD series more attractive features are the
on-board QUICK-CAL™ button, DIP switches, Jog buttons, and variable gain selector. These features allow the user to complete
setup and calibration of either diaphragm or piston operated valves in a couple of minutes, without the need of additional
handheld devices or software.
The Logix 3000MD series positioners offer valve status updates at a glance using the highly visible LEDs. Users can easily
determine if a valve or actuator is functioning properly, and quickly diagnose any problems using the smart LED blink codes.
This means that maintenance personnel can provide a visual check of the valve status without having to remove the cover or
connect a HART handheld device or maintenance PC/laptop.
Predictive diagnostics is available using the ValveSight software available through FDT/DTM technology. ValveSight is a
diagnostic solution for control valves that can be seamlessly integrated into most host control and/or plant asset management
systems. The power of ValveSight is in the intelligent diagnostic engine which is constantly monitoring the valve, actuator,
positioner and control signal for patterns of behavior that may indicate a problem and provides actional advice proactively.
All Blink
Codes Listed
Large QUICK-CAL
Button
Jog
Buttons
DIP Switches for
Fast and Easy Setup
Gain Selector
Switch
No Exposed
Electronics
Inside the Logix 3200MD

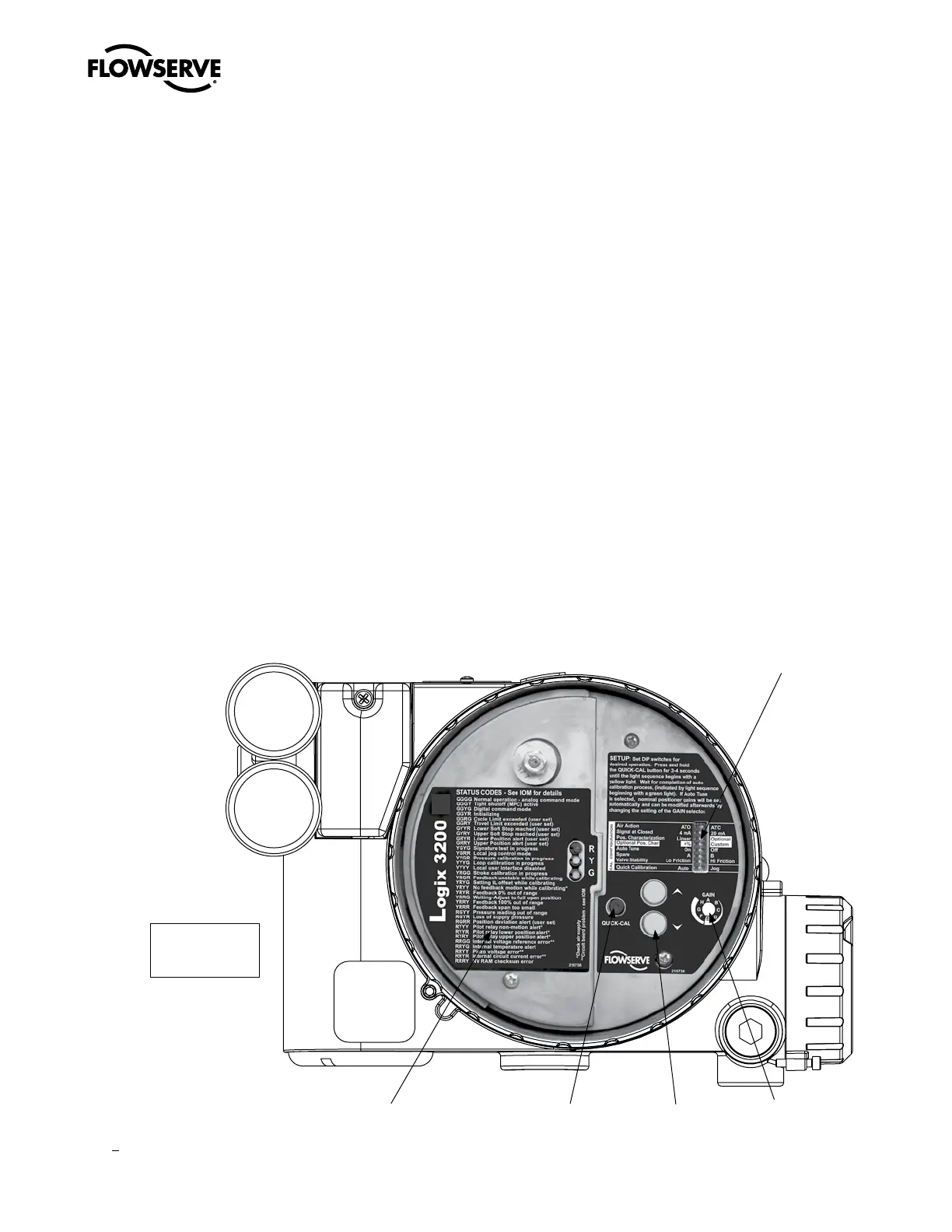

Figure 1 – Logix 3200MD Controls
