Flowserve Logix 3400MD User Manual

Logix 3400MD Digital Positioner FCD LGENIM3404-00 – 9/09
44

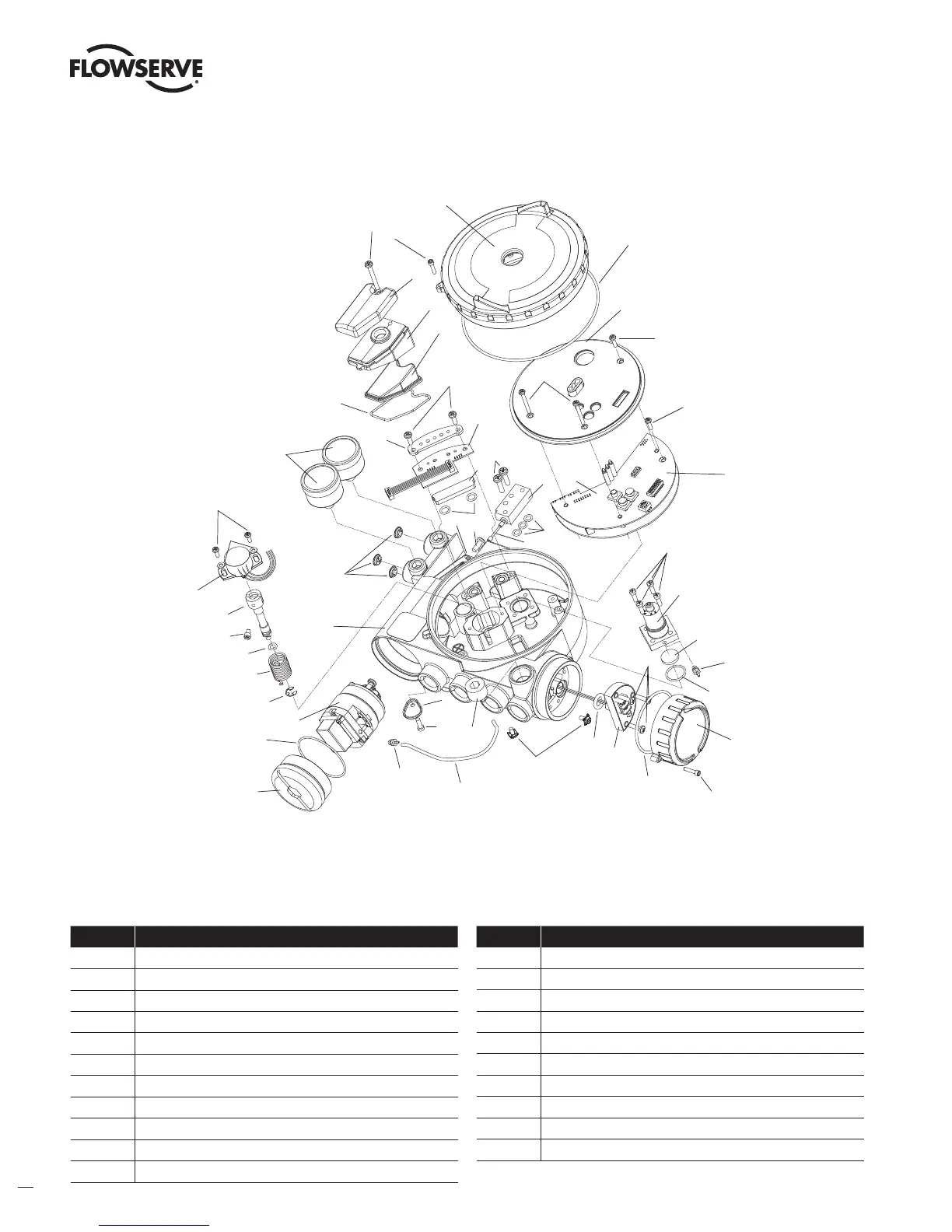

Figure 22: Exploded Drawing
2
4
3
5
6
9
8
16
17
18
19
20
21
23
22
24
25
26
27
28
29
30
34
35
31
32
33
56
55
54
53
52
51
49
50
47
48
37
36
38
39
40
41
46
45
44
43
42
11
12
13
14
15
7
1
10
Item No. Part
1 Housing Logix 3000MD Positioner
2 Main Housing Cover
3 O-ring, Main Housing Cover
4 Screw, Anti-rotation
5 Plastic Main PCB Cover
6 Screw, Main PCB Cover Short (2)
7 Screw, Main PCB Cover Long
8 Main PCB Assembly
9 Screw, Main PCB Assembly Retaining
11 Screw, Pressure Sensor Board (2)
12 Pressure Sensor Board Stiffener
Item No. Part
13 Pressure Sensor Board (Advanced Only)
14 Pressure Sensor Plug Plate (Standard Only)
15 O-ring, Pressure Sensor to Housing (2)
16 Pressure Regulator, 5 to 30 psig (Includes 2 O-rings)
17 Screw, Regulator Plate to Housing (4)
18 Hex Barbed Fitting with Captive O-ring
19 Internal Filter
20 O-ring, Interface Plate to Housing Seal
21 Customer Interface Cover
22 O-ring, Customer Interface Cover
Continued on Page 45
10 Parts List
Table XI: Parts
