User Instructions Logix 520MD - LGENIM0520-01 11/09
8.51
216.18
3.94
100.00
1/4" NPT
SINGLE PRESSURE GAUGE
AUXILIARY OPTIONS - “GA” (GAUGE ADAPTER)
3.94
100.00
8.54
216.87
TWO PRESSURE GAUGES
1/4" NPT
AUXILIARY OPTIONS - “GM” (GAUGE MANIFOLD)
3.94
100.00
2.50
63.50
1.88
47.63
6.83
173.50
5.03
127.69
DOMED
INDICATOR
POSITION INDICATOR - “D” (DOMED INDICATOR)

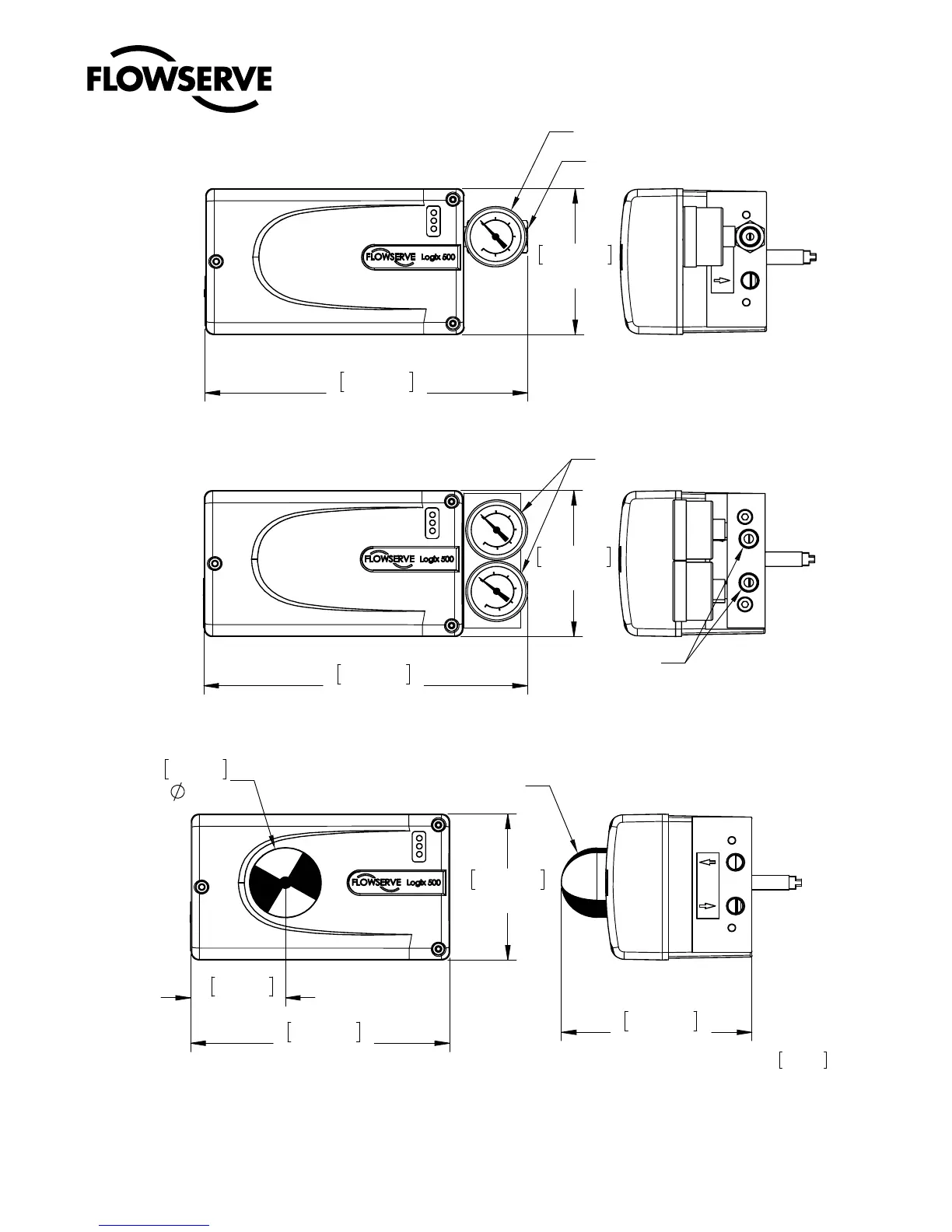

FIG. 6 - DIMENSIONAL DRAWING FOR OPTIONS
INCH
MM
Figure 11: Dimensional Drawing for the Logix 520MD with options
