Attach handle lever to tank and hand-
tighten lever lock-nut.
Note: Nut is reverse threaded. Make sure
tabs on collar are oriented vertically.
Line up tabs on lever into the slots on
lever mounting base (B) and snap into
base. Tabs on lever shank need to be
installed vertically.
(1) Reconnect water supply line (V). Use
Step 3.1 chart (on pg. 13) to determine
the appropriate assembly parts required
to properly reconnect the water supply.
NOTE: Hand tighten only. DO NOT use
thread lubricants. Use of thread sealants
or lubricants can damage plastic nut
and result in ooding and property
damage.
If you need to adjust the
orientation of the ush
valve (A), release from
base by (1) turning
counterclockwise until
tabs unlock. (2) Lift
valve out and
adjust/orient as needed.
Turn on water supply. Check for leaks.
www.uidmaster.com
9

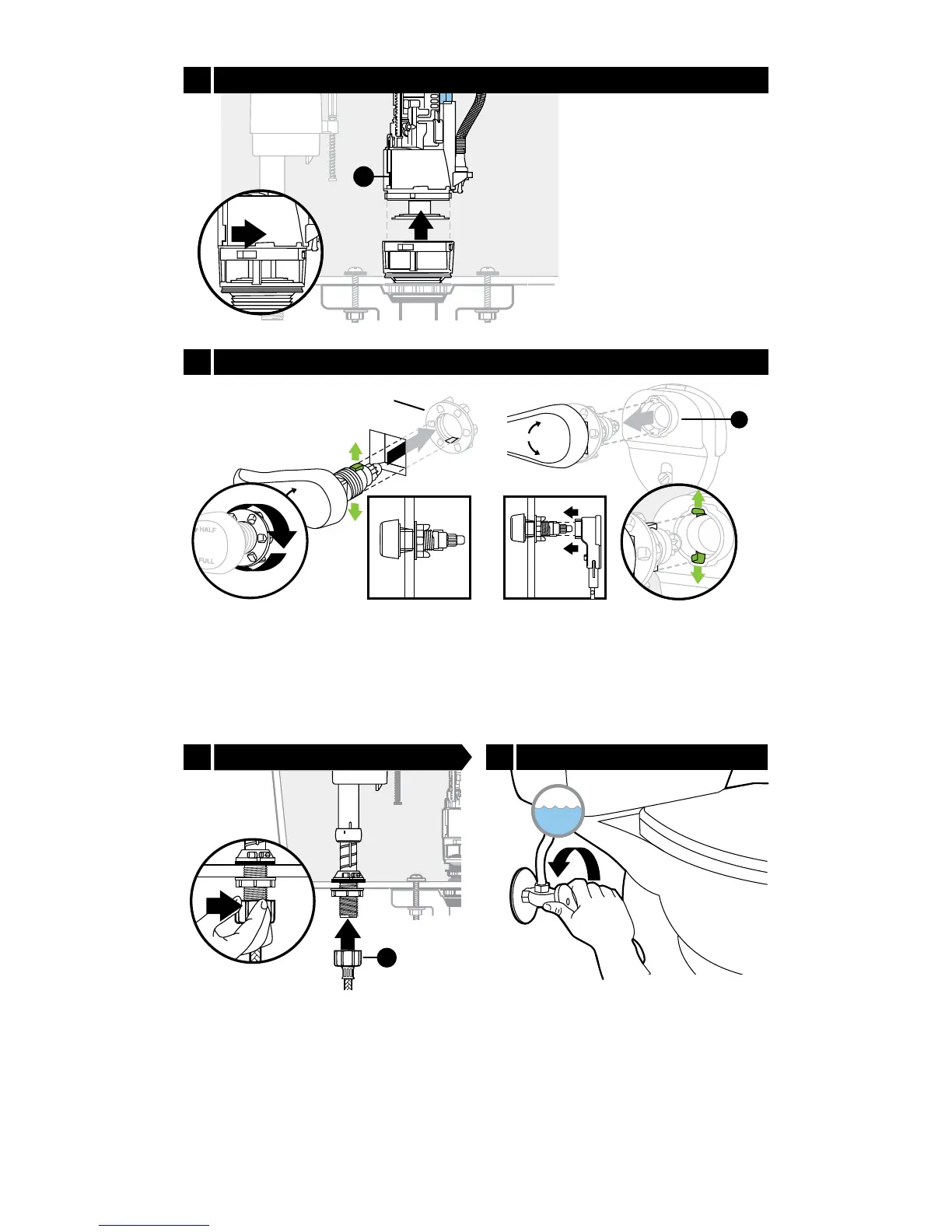

4.5 Install handle
4.4 Rotate (if necessary)
4.6 Reconnect 4.7 Turn on water supply
To Next Page
