110/113/114/115/117
Users Manual
10
Measuring Capacitance (113, 115, 117)
Measuring Frequency (115, 117)
XW Warning
To avoid electrical shock, disregard the bar graph for frequencies >1 kHz. If the frequency of the
measured signal is >1 kHz, the bar graph and Z are unspecified.
The Meter measures the frequency of a signal by counting the number of times the signal crosses a trigger level
each second. The trigger level is 0 V, 0 A for all ranges.
Press g to turn on or turn off the frequency measurement function on and off. Frequency works with ac
functions only.
In frequency, the bar graph and range annunciator indicate the ac voltage or current present.
Select progressively lower ranges using manual ranging for a stable reading.
113 115,117
AC for AC Voltage
DC for DC Voltage
60 V6 V 600 V
RANGE
AC for AC Voltage
DC for DC Voltage

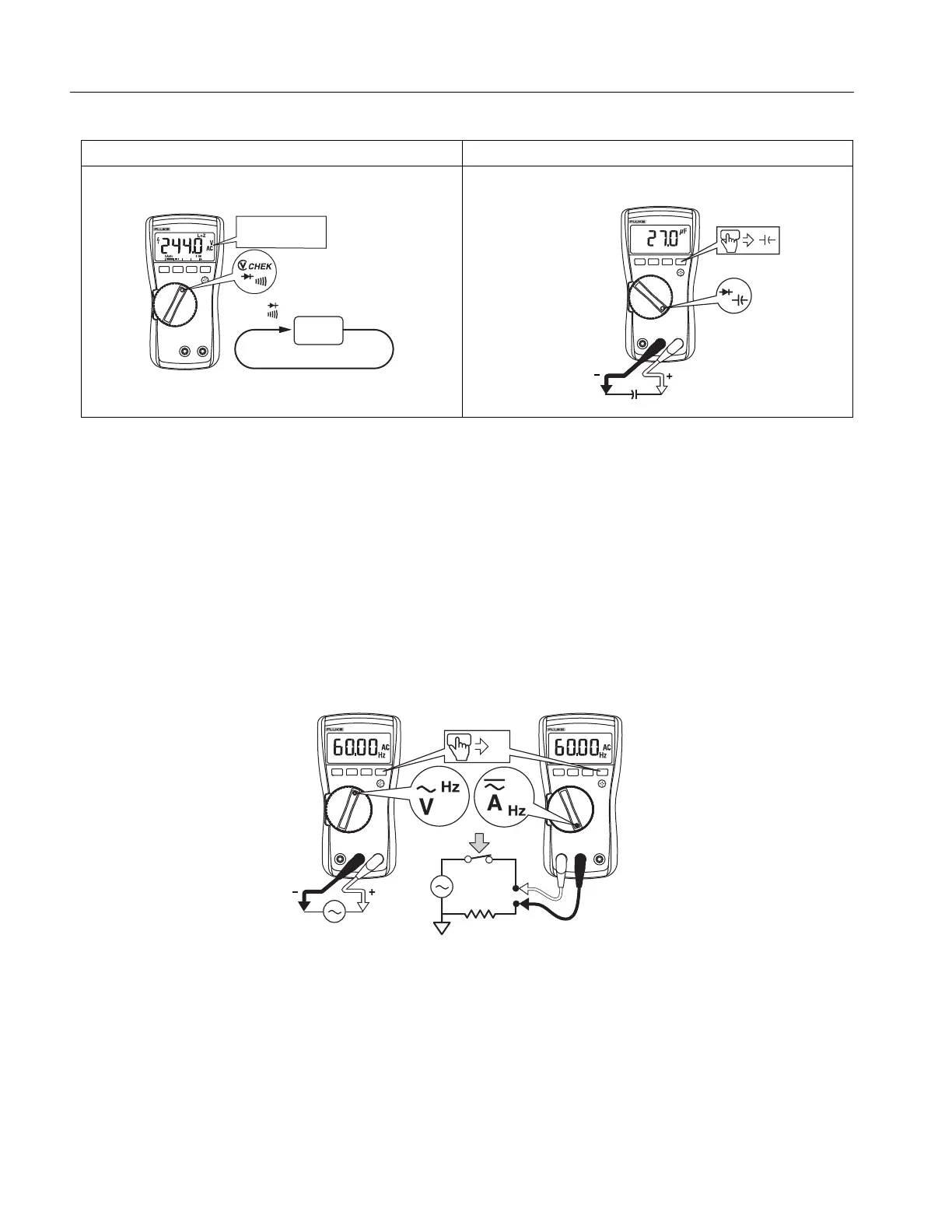

AC Voltage Frequency
AC Current Frequency
