Fluke 1630 User Manual

1630
Users Manual
4
Getting Acquainted with the Clamp
Refer to Figures 1 and 2 and Tables 1 and 2 to become more familiar with the
Clamp’s features.
1630
EARTH GROUND CLAMP
300 V
CAT
mA
A
OFF
HOLD
FUNC REC
1
2
3
4
59
68
7
eht01f.eps

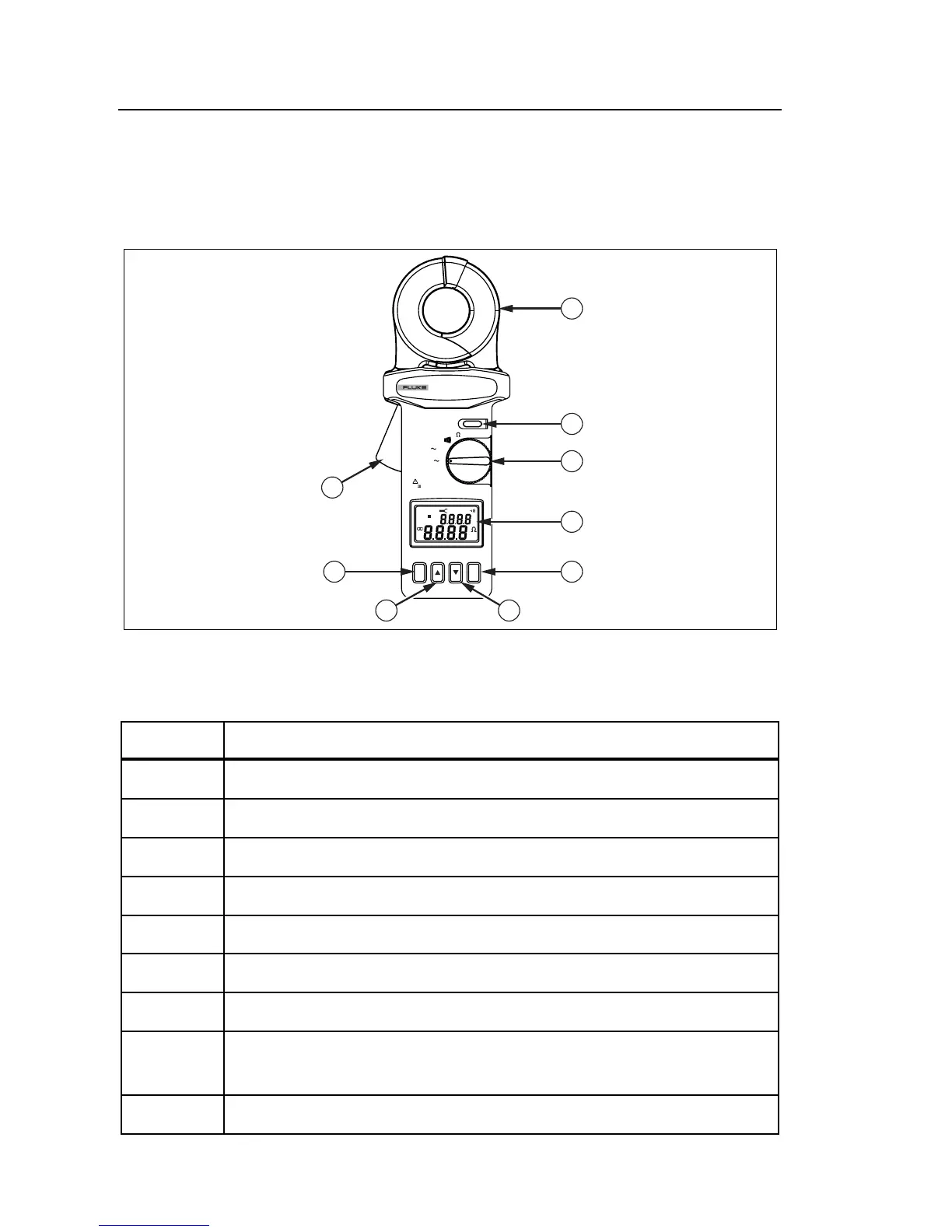

Figure 1. 1630 Earth Ground Clamp Features
Table 1. 1630 Earth Ground Clamp Features
Number Description
A Jaws. Used to enclose electrode or ground wire.
B HOLD button. Press to hold the displayed value.
C Rotary Switch for power on and function selection.
D LCD
E REC button. Press to start data logging.
F Down arrow used to decrement value.
G Up arrow used to increment value.
H FUNC button. Press to select HI (high alarm), LO (low alarm),
SEC (seconds), or stored memory locations.
I Jaw release.

Fluke 1630 Specifications

General

Control type	Buttons
Housing color	Red, Black, Yellow
Maximum voltage	1000 V
Built-in display	Yes
Display technology	LCD
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	-10 - 50 °C
Battery size	AA
Battery technology	Alkaline
Battery life (measurements)	15
Number of batteries supported	4

Weight and Dimensions

Depth	48 mm
Width	105 mm
Height	283 mm
Weight	880 g
