Fluke 1630 User Manual

1630
Users Manual
8
Ground Leakage Current Measurement
To perform a ground leakage current measurement test:
1. Open the jaws and make sure the surfaces fit together properly and
are free of dust, dirt, or any foreign substances.
2. Turn the Clamp on by moving the rotary switch to the
M or
A function.
3. Attach the Clamp to the electrode or ground rod to be measured.
Figure 4 shows a connection for a ground leakage current
measurement.
4. Read the value of the leakage current on the display.
1
6
3
0
E
A
R
T
H
G
R
O
U
N
D
C
L
A
M
P
3
0
0
V
C
A
T
m
A
A
O
F
F
H
O
L
D
F
UN
C
RE
C
eht05f.eps

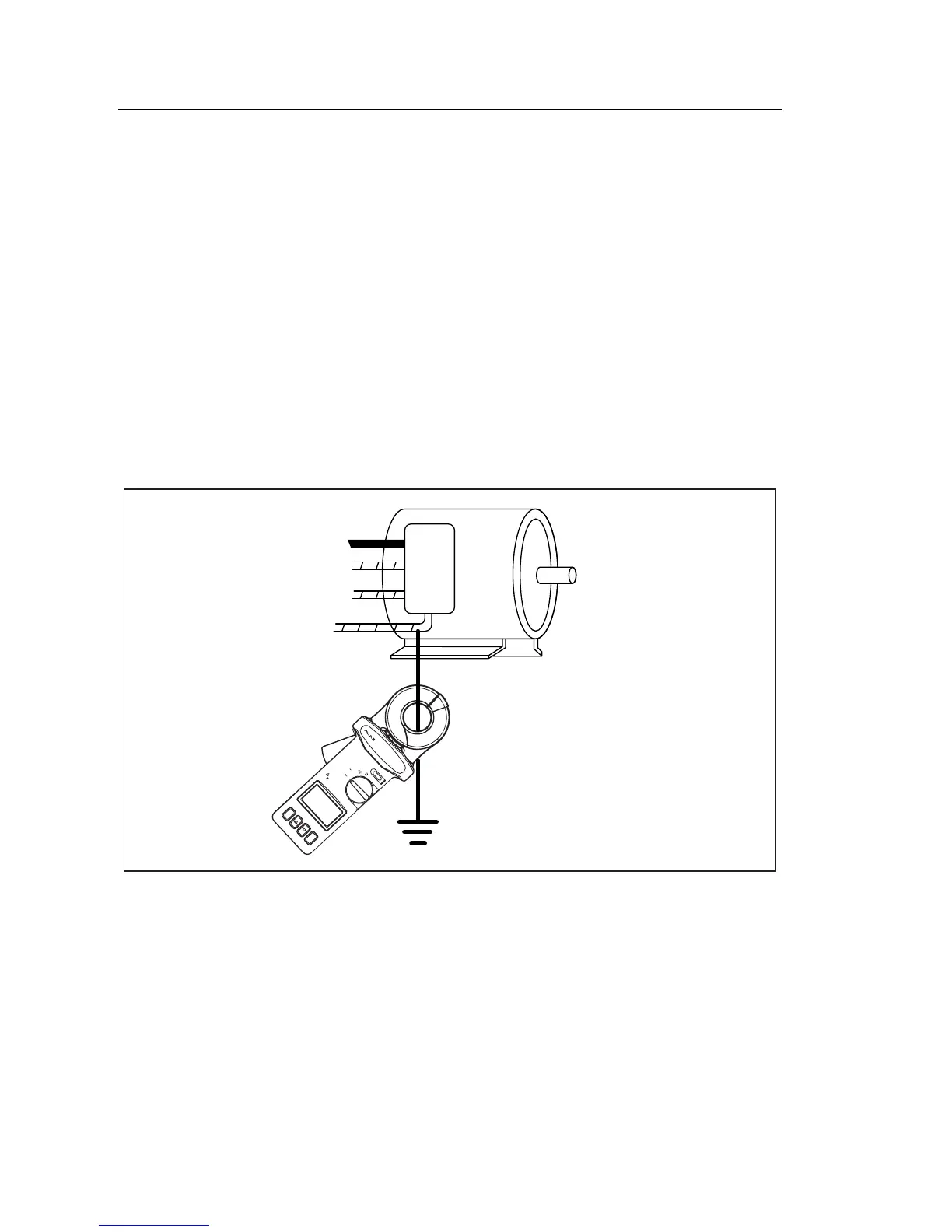

Figure 4. Ground Leakage Current Measurement

Fluke 1630 Specifications

General

Control type	Buttons
Housing color	Red, Black, Yellow
Maximum voltage	1000 V
Built-in display	Yes
Display technology	LCD
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	-10 - 50 °C
Battery size	AA
Battery technology	Alkaline
Battery life (measurements)	15
Number of batteries supported	4

Weight and Dimensions

Depth	48 mm
Width	105 mm
Height	283 mm
Weight	880 g
