Power Logger
Storage
11
Storage
When not in use, keep the Logger in the protective storage
bag/case. The bag/case has sufficient space for the
Logger and all the accessories.
If the Logger is stored for an extended period of time or is
not in use for a long time, you should charge the battery at
least once every six months.
Tilt Stand
The power supply includes a tilt stand. When used, the tilt
stand positions the display at a good angle for use on a
tabletop surface. To use, attach the power supply to the
Logger and open the tilt stand.
Power Supply
The Logger includes a removable power supply, see
Figure 6. The power supply is either attached to the
Logger or used externally with a dc power cable. The
configuration with the externally connected power supply is
preferred in locations where the Logger with the power
supply attached is too big to fit in a cabinet between the
door and panel.
When the power supply is connected with the Logger and
connected to line power, it:
• converts line power to dc power and is used directly by
the Logger
• automatically turns on the Logger and continuously
powers the Logger from the external source (after
initial power on, the power button turns on and turns
off the Logger)
• recharges the battery
The power cord/measurement line cover slides to select
the input source.
Warning
To prevent possible electrical shock, fire, or
personal injury, do not use the power supply if
the mains power cable/measurement line slide-
cover is missing.

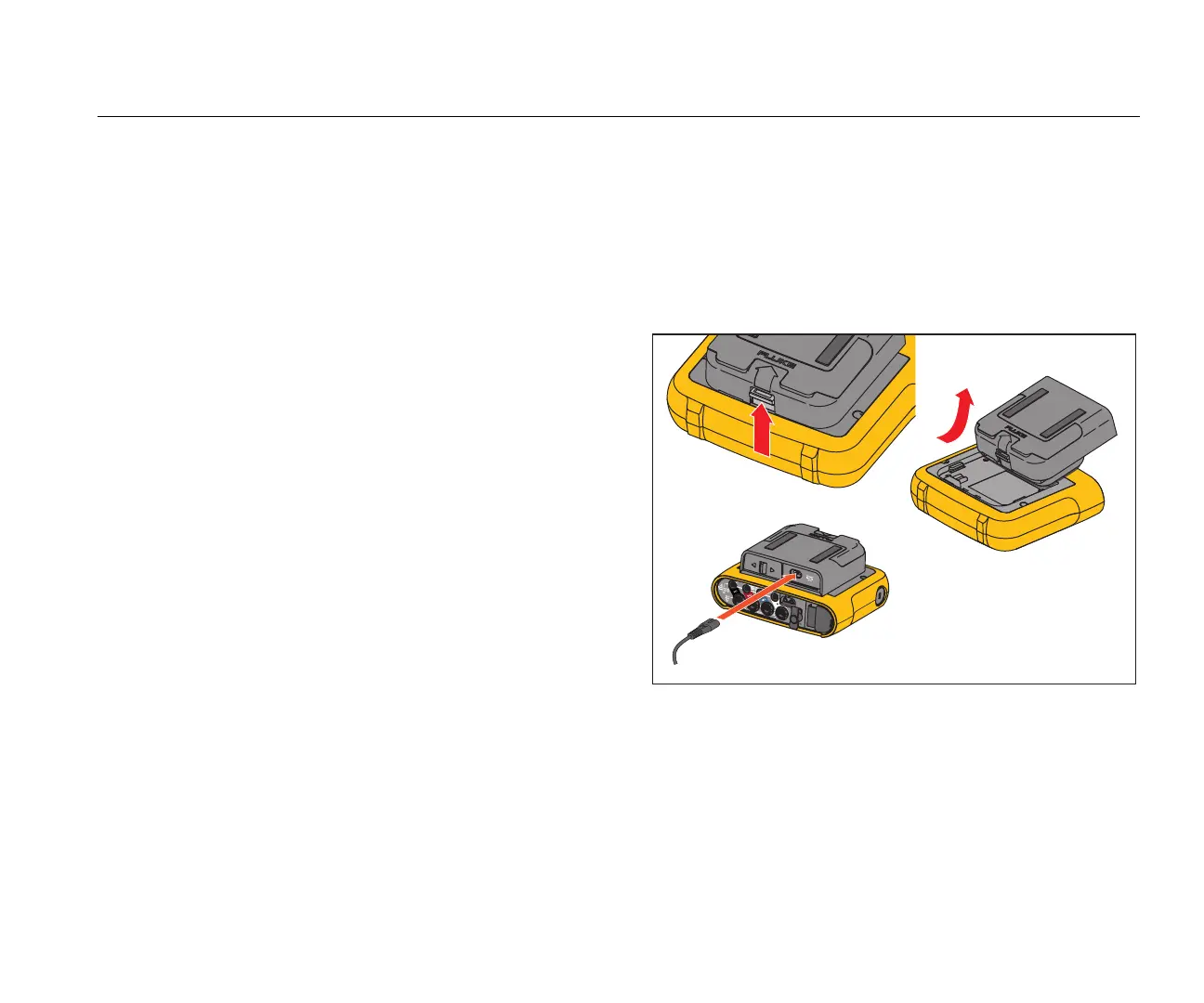

hcf031.eps
Figure 6. Power Supply and Battery
