Fluke 1736 User Manual

1736/1738
Users Manual
6
WiFi and WiFi/BLE-to-USB Adapter
The USB adapter enables the wireless connectivity of the
Logger:
• Connection to the Fluke Connect™ smartphone app
for easy asset management and data sharing.
• Data transfer to "Energy Analyze Plus" PC software.
• Remote control via Virtual Network Computing (VNC).
See Remote Control for more information about VNC.
• Display and store data of up to 2 modules of the Fluke
FC 3000 series together with the instrument data into
logging sessions (requires WiFi/BLE adapter feature,
available with firmware version 2.0).
To install the adapter (see Figure 2) in the Logger:
1. Remove the Power Supply.
2. Unscrew the four screws and remove the battery door.
3. Remove the battery.
4. Insert the WiFi/BLE adapter in the compartment with
the serial number pointing upwards.
5. Connect the WiFi/BLE adapter to the USB port by
sliding it gently to the right until the adapter snaps into
the USB socket of the Logger. About 3.5 mm (0.14 in.)
of the metal shield should be visible.
6. Insert the battery.
7. Fasten the battery door.
hcf069.eps

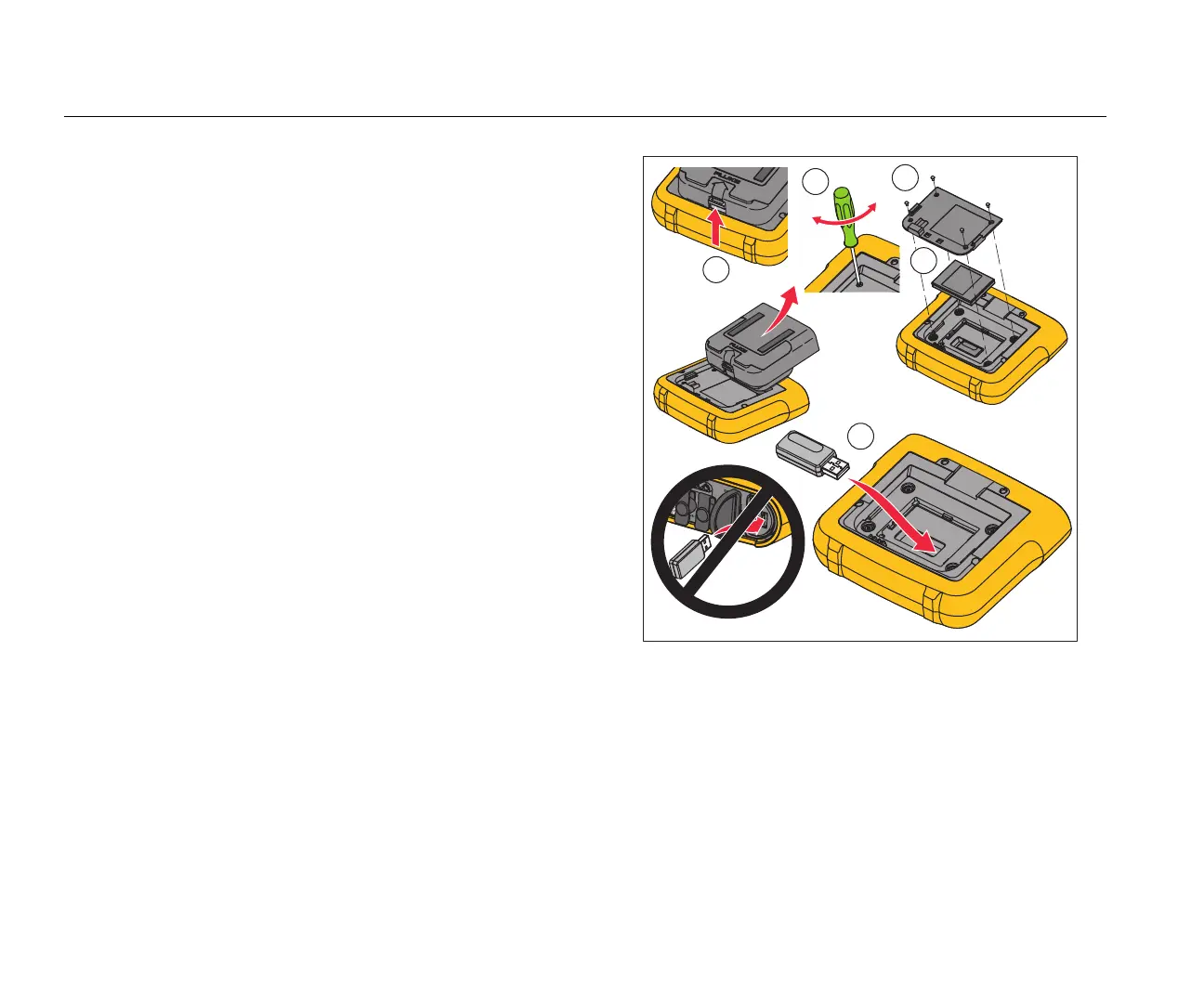

Figure 2. Adapter Installation
2
1
3
4
5

Fluke 1736 Specifications

General

Product type	Three phase power measurement logger
Cable lock slot type	Kensington
International Protection (IP) code	IP50
Operating altitude	0 - 4000 m
Non-operating altitude	0 - 12000 m
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %
Built-in display	Yes
Display diagonal	4.3 \
Touchscreen type	Resistive
Display resolution	480 x 272 pixels
Display technology	TFT
Efficiency	68.2 %
Battery life	4 h
Charging time	6 h
Battery voltage	3.7 V
Input frequency	50/60 Hz
Battery capacity	9.25 Wh
Power consumption (max)	50 VA
Battery life (power save mode)	5.5 h

Weight and Dimensions

Depth	55 mm
Width	198 mm
Height	167 mm
Weight	1100 g
Power adapter weight	400 g
Power supply dimensions (WxDxH)	130 x 45 x 130 mm
