Fluke 1736 User Manual

Power Logger
Navigation and User Interface
15
Applying the Connector Panel Decal
Self-adhesive decals are supplied with the Logger. The
decals correspond to the wiring color codes used in the
USA, Europe and UK, UK (old), Canada, and China. Apply
the decal appropriate for your local wiring codes around
the current and voltage inputs on the connector panel as
shown in Figure 7.
hcf022.eps

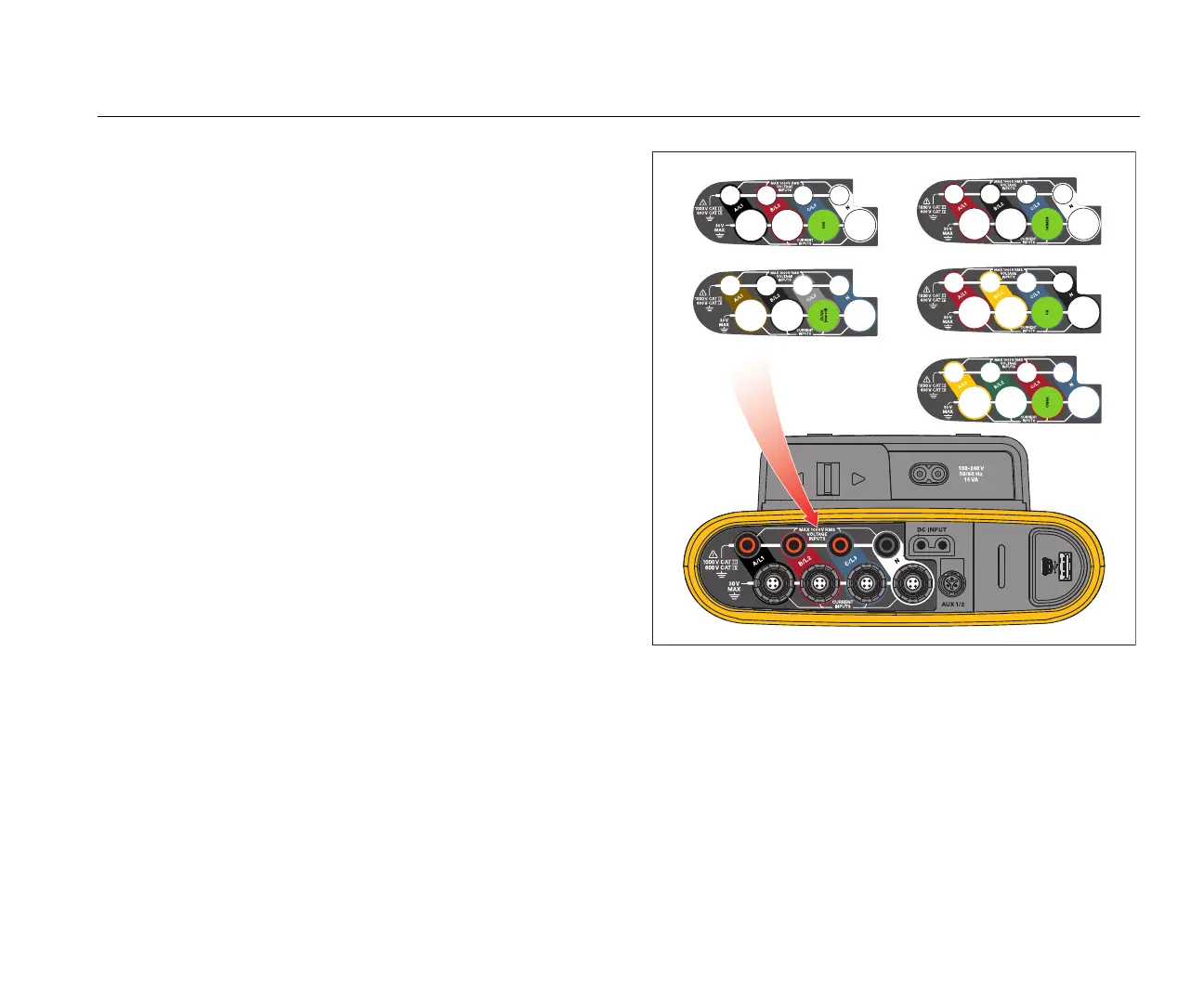

Figure 7. Decal for Connector Panel
Canada (4280546)
Europe/UK (New STD 4280531) UK (4280554)
China (4280568)
USA (4275029)

Fluke 1736 Specifications

General

Product type	Three phase power measurement logger
Cable lock slot type	Kensington
International Protection (IP) code	IP50
Operating altitude	0 - 4000 m
Non-operating altitude	0 - 12000 m
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %
Built-in display	Yes
Display diagonal	4.3 \
Touchscreen type	Resistive
Display resolution	480 x 272 pixels
Display technology	TFT
Efficiency	68.2 %
Battery life	4 h
Charging time	6 h
Battery voltage	3.7 V
Input frequency	50/60 Hz
Battery capacity	9.25 Wh
Power consumption (max)	50 VA
Battery life (power save mode)	5.5 h

Weight and Dimensions

Depth	55 mm
Width	198 mm
Height	167 mm
Weight	1100 g
Power adapter weight	400 g
Power supply dimensions (WxDxH)	130 x 45 x 130 mm
