Power Logger
Before You Start
7
Magnet Hanger Kit
The accessory shown in Figure 3 is used to:
• Hang the Logger with power supply attached (use two
magnets)
• Hang the Logger separately (use two magnets)
• Hang the power supply separately (use one magnet)
Voltage Test Leads
Voltage test leads are four-core, flat, test leads that do not
tangle and can be installed in tight spaces. On installations
where the access to Neutral is out of reach with the three-
phase test lead, use the black test lead to extend the
Neutral lead.
For single phase measurements use the red and black test
leads.
hcf058.eps

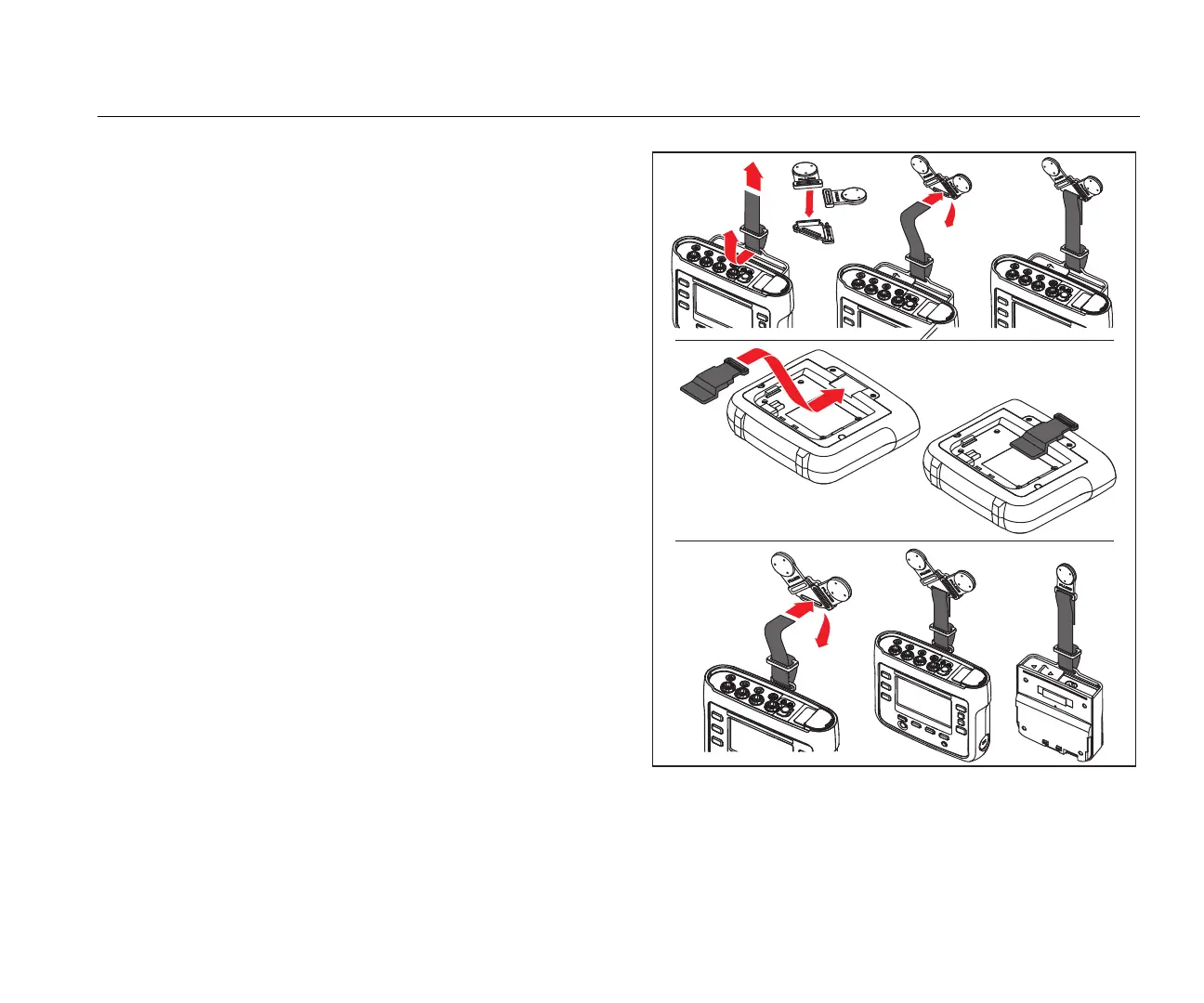

Figure 3. Magnet Hanger Kit
