Power Logger
Function Selection Buttons
25

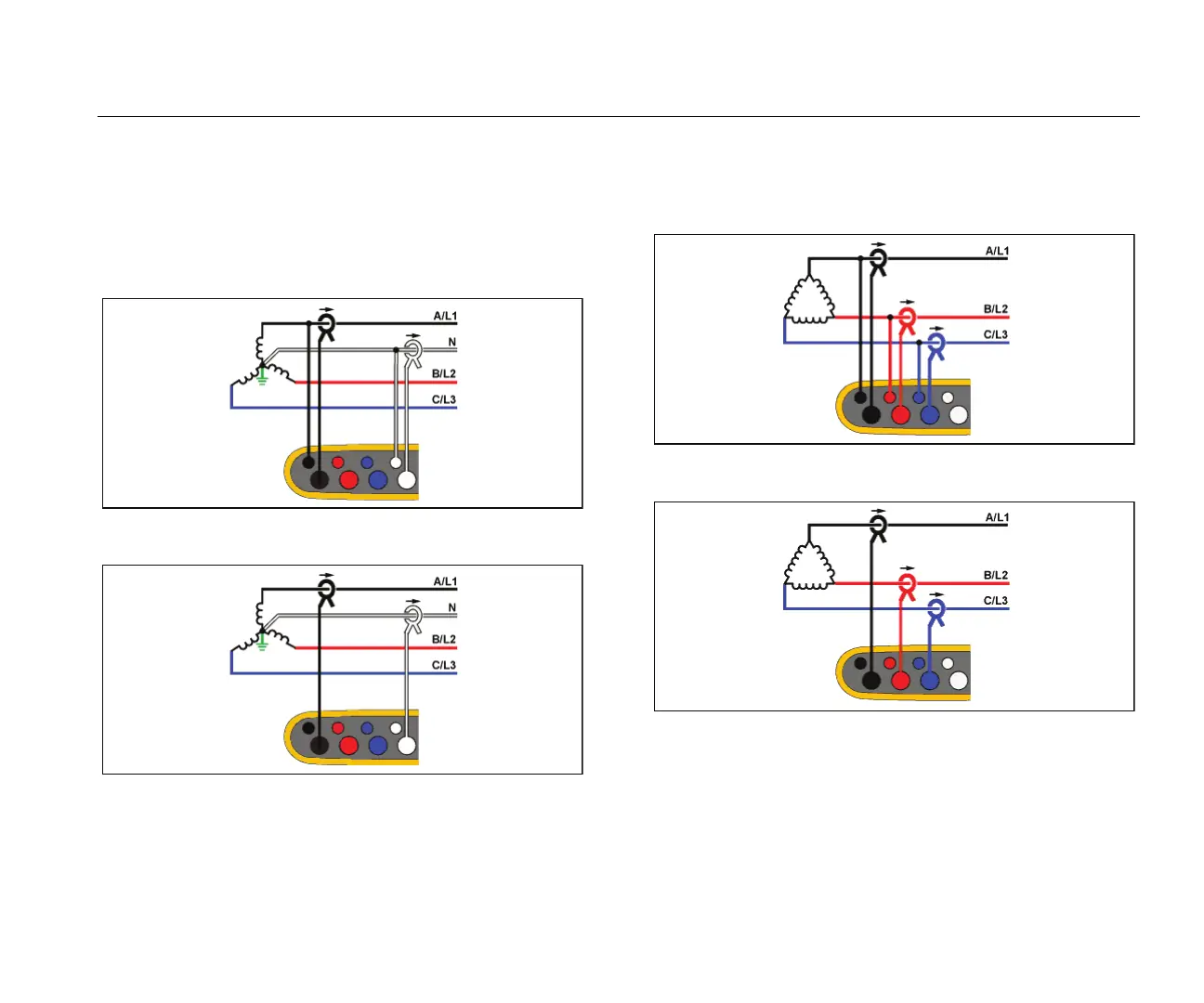

3-Ф Wye Balanced
Example: For symmetrical loads like motors the
connection can be simplified by measuring only one phase
and assuming the same voltages/currents on the other
phases. As an option, you can measure harmonics with a
current probe on the neutral line.
hcf049.eps
Energy Study
hcf050.eps
Load Study (no voltage measurement)
3-Ф Delta
Example: Often found in industrial settings where electric
motors are used.
hcf051.eps
Energy Study
hcf052.eps
Load Study (no voltage measurement)
