Fluke 27 Service Manual

List of Replaceable Parts
Parts Lists
4
4-11
Table 4-3. A2 Digital PCA
Reference
Designator
Description Fluke Stock Number Total
Qty
C 12, 13, 44-47 CAP,CER,0.22 UF,+80-20%,50 V,Z5U 733386 6
J 8 SOCKET,1 ROW,PWB,0.100 CTR,18 POS 707026 1
LS 1 AF TRANSD,PIEZO,24 MM 602490 1
U 2 * IC,CMOS,4 BIT MICROCOMPUTER 685628 1
An * in ’S’ column indicates a static-sensitive part.

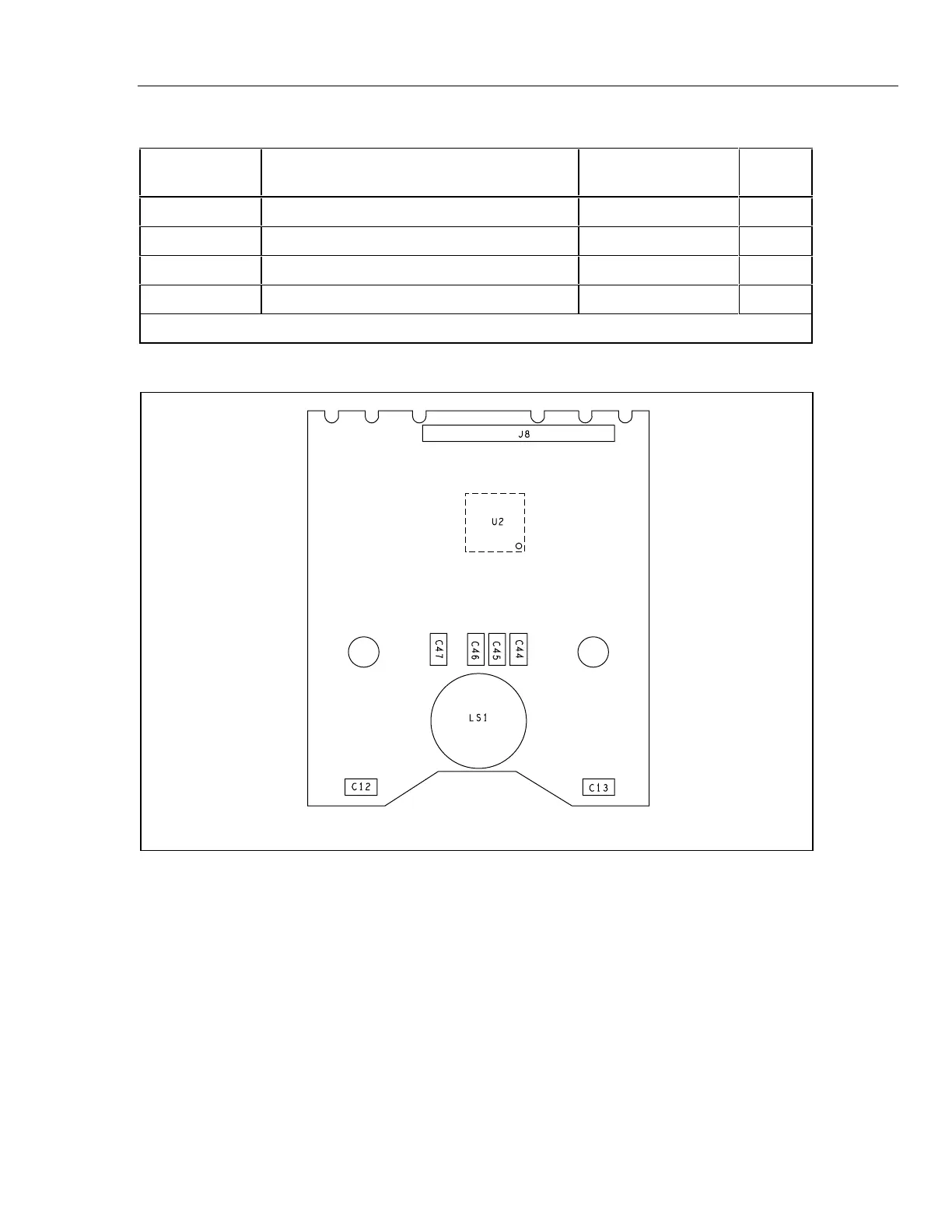

Fluke 27-4002
aac09f.eps
Figure 4-3. A2 Digital PCA
