Fluke 27 - Page 54

27
Service Manual
4-12
Table 4-4. A4 Digital PCA
Reference
Designator
Description Fluke Stock Number Total
Qty
C 52-59 CAP,CER,0.1 UF,+/-10%,25 V,X7R,0805 942529 8
J 48 SOCKET,1 ROW,PWB,0.100 CTR,18 POS 707026 1
LS 1 AF TRANSD,PIEZO,24 MM 602490 1
R 42-46,48,49,
51,54-57
RES,CERM,100K,+/-1%,.063W,100PPM 643863 12
R 58 RES,CERM,10K,+/-1%,.063W,100PPM 605052 1
R 61,62 RES,CERMET,3.32M,+/-1%,0.1W,400PPM 943639 2
U 2 * IC, ,16 BIT MICROCOMPUTER 2095002 1
Y 2 CRYSTAL,32.768KHZ,30/105PPM,7PF,CLIP
CAN
1627036 1
An * in ’S’ column indicates a static-sensitive part.
Fluke 27-4004
aac13f.eps

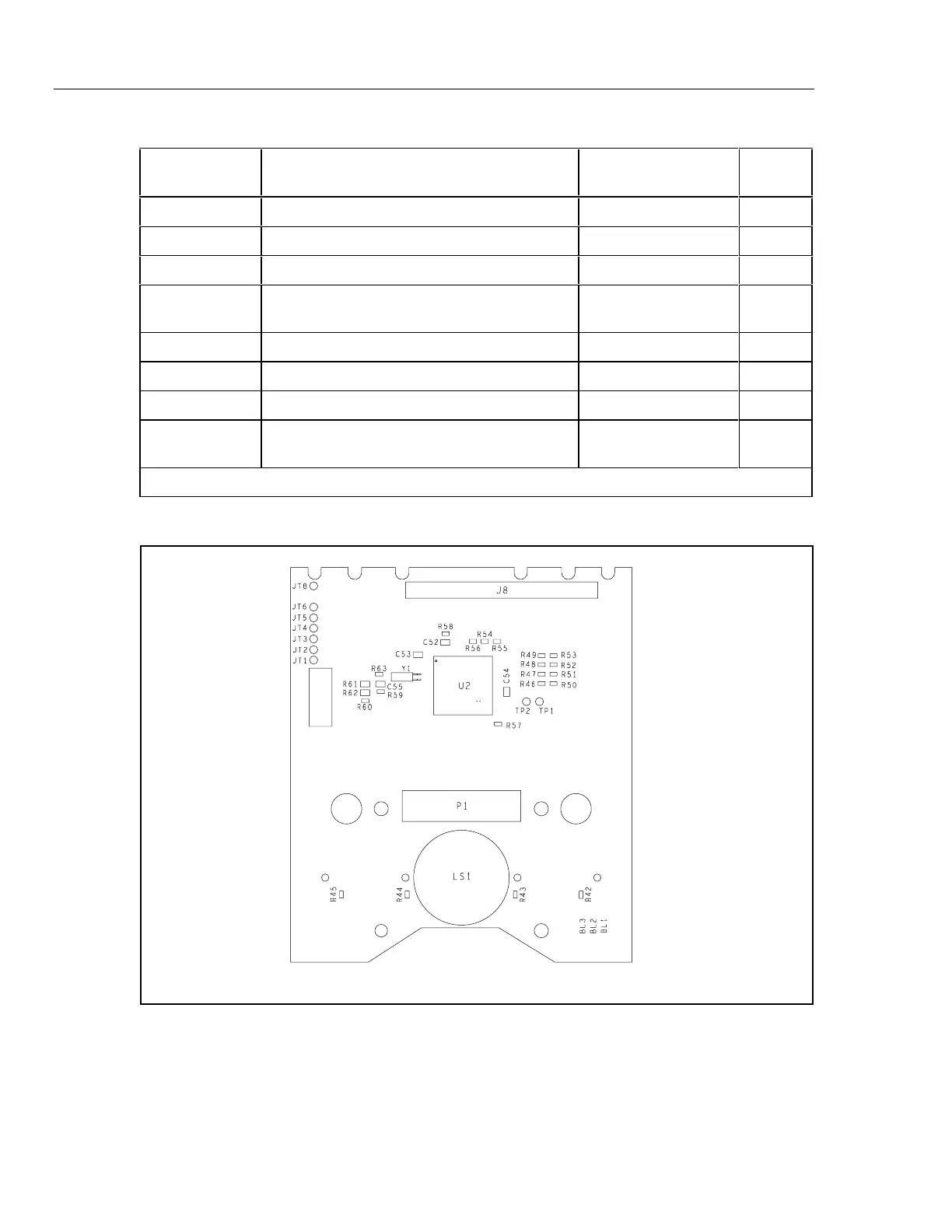

Figure 4-4. A4 Digital PCA
