Fluke 773 Instruction Sheet

772/773/773-II English Instruction Sheet
Page 8
Fjv04.emf
Number Description
A
Voltage measurement test lead input, also used for voltage
sourcing HI.
B Common test lead input, also used for voltage sourcing LO.
C -mA test lead input, also used for mA sourcing.
D +mA test lead input, also used for mA sourcing.
E
Common test lead input. -mA test lead input. Also used for mA
sourcing.

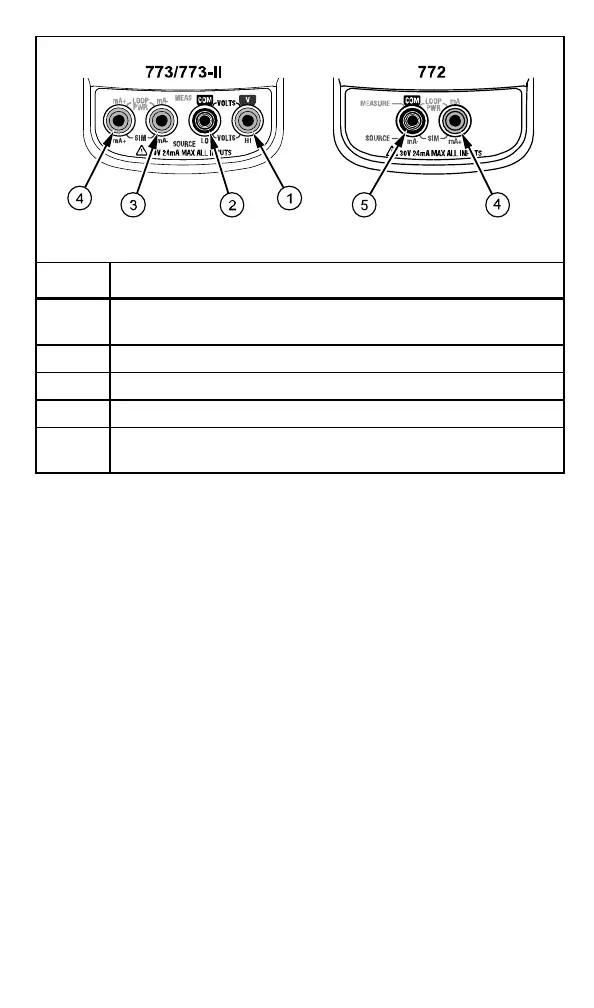

Figure 4. Input/Output Jacks
Features
The following sections give more detail about the Meter’s features.
Percentage Span
The Source and Simulate Percentage Span feature displays the span for
4 to 20 mA loops. Use G, F, E, and D to adjust the source
or simulated current (772) or dc voltage and current (773/773-II).
20 mA 100 % 8 mA 25 %
16 mA 75 % 4 mA 0 %
12 mA 50 % 0 mA -25 %
Zero Adjust
Before taking measurements with the clamp, push C to zero the
display by removing the offset. Make sure the clamp jaws are closed and
no current is flowing through them before zeroing.
Backlight
Press Q to turn the backlight on and off. The backlight automatically
turns off after 2 minutes.

Fluke 773 Specifications

General

Operating altitude	0 - 2000 m
Storage temperature (T-T)	-25 - 60 °C
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	0 - 90 %
Battery type	AA
Power source	Battery
Battery voltage	1.5 V
Battery technology	Alkaline
Number of batteries supported	4
Product type	Digital multimeter
Product color	Grey, Red, Yellow
DC current range	0 - 0.024 A
DC voltage range	0 - 30 V
Placement supported	Handheld multimeter
Basic accuracy (DC current)	0.2% + 2 counts

Weight and Dimensions

Depth	44 mm
Width	70 mm
Height	246 mm
Weight	410 g
