Fluke 773 Instruction Sheet

772/773/773-II English Instruction Sheet
Page 14
Maintenance
XW Warning
To prevent possible electric shock, fire, or personal injury:
• Remove the input signals before you clean the
Product.
• Repairs or servicing not covered in this manual
should be performed only by qualified personnel.
• Replace all batteries with fresh batteries of the same
manufacturer and type to prevent battery leakage.
Cleaning the Meter
Clean the instrument case with a damp cloth and mild detergent.
Battery Replacement
XW Warning
To avoid false readings, that could lead to possible electric
shock or personal injury, replace the batteries as soon as
the low battery indicator (B) appears.

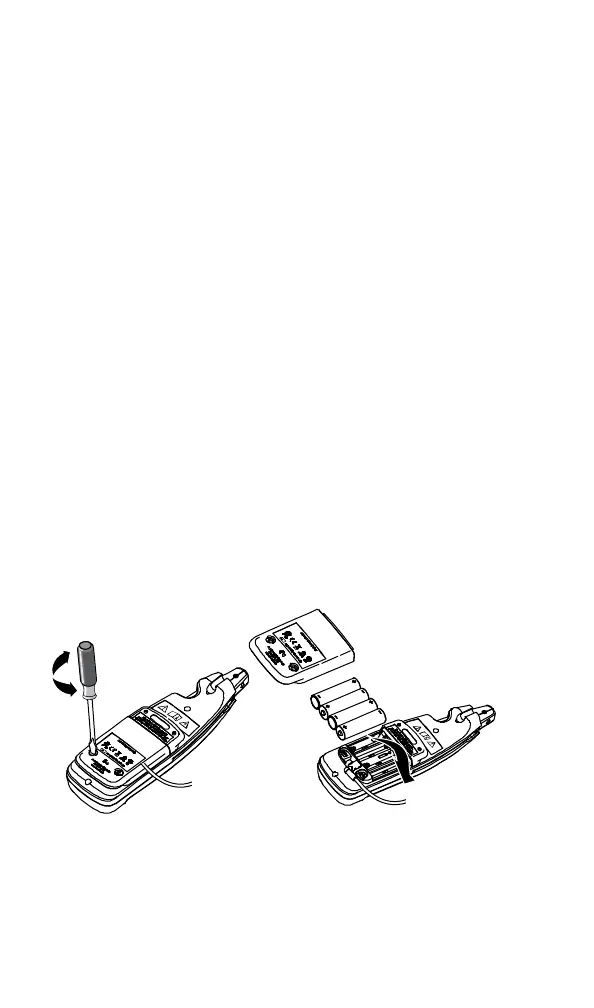

To replace the batteries, see Figure 11:
1. Turn the Meter off.
2. Use a flat head screwdriver to loosen the battery compartment door
screw, and remove the door from the case bottom.
3. Remove the batteries.
4. Replace the batteries with four new AA batteries.
5. Reattach the battery compartment door to the case bottom and tighten
the screw.
fjv02.emf
Figure 11. Changing the Batteries

Fluke 773 Specifications

General

Operating altitude	0 - 2000 m
Storage temperature (T-T)	-25 - 60 °C
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	0 - 90 %
Battery type	AA
Power source	Battery
Battery voltage	1.5 V
Battery technology	Alkaline
Number of batteries supported	4
Product type	Digital multimeter
Product color	Grey, Red, Yellow
DC current range	0 - 0.024 A
DC voltage range	0 - 30 V
Placement supported	Handheld multimeter
Basic accuracy (DC current)	0.2% + 2 counts

Weight and Dimensions

Depth	44 mm
Width	70 mm
Height	246 mm
Weight	410 g
