Getting Acquainted with the Meter
Figures 1-4 explain the Meter’s features, buttons, input/output jacks, and
display.
HA RT
mA SCALELOOP PWR
mA I N / OUT
Fjv06.emf
Number Description
A
Turn on and off the Meter
B
Measurement spotlight LED button
C
Turns the display backlight on and off
D
Switches the Meter to Clamp Measure mode. Zeros the clamp
reading in Clamp mode. The Clamp modes includes clamp
measure, mA scale output, and mA IN/OUT.
Press N first to change to mA scale (773/773-II).
E
Cycles through source output ramping and 25 % stepping:
() Slow repeating 0 % - 100 % - 0 % ramp
() Fast repeating 0 % - 100 % - 0 % ramp
() Repeating 0 % - 100 % - 0 % ramp in 25 % steps
Press N first to activate mA IN/OUT (773/773-II).
F
Captures and holds the current reading. Pressing N first
activates the 250 Ω HART resistor.
G
N activates features listed above some buttons
H
0 %-100 %- sets voltage or mA sourcing output. Press N first to
activate U, V, X, and W to adjust the source output. Long press
G or D to set span range point.
I
Measure, Source, Simulate button
J
DC Volts selection (773/773-II)
K
mA selection. Press N first to activate Loop Power function.

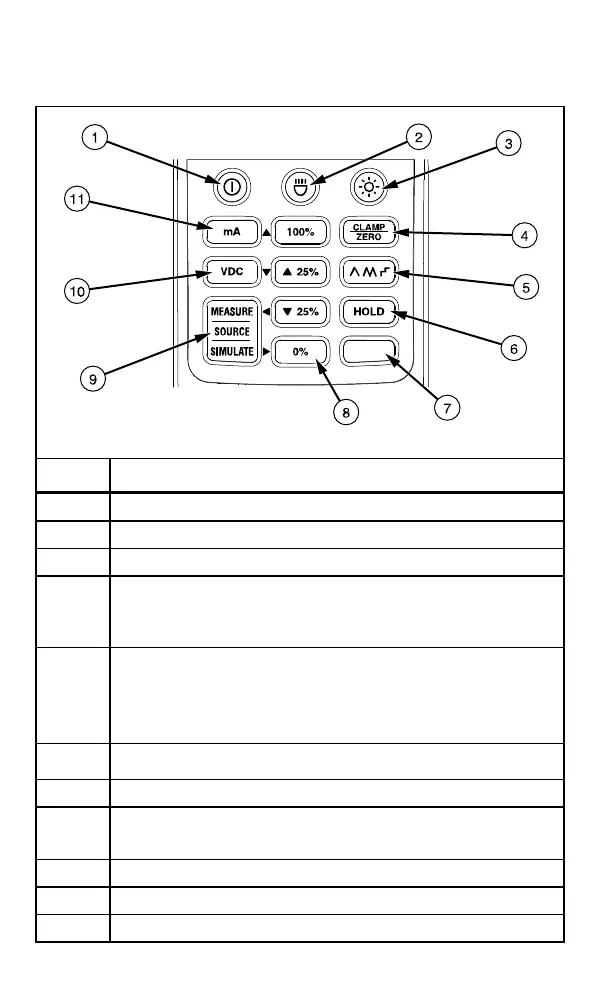

Figure 1. Buttons

Fluke 773 Specifications

General

Operating altitude	0 - 2000 m
Storage temperature (T-T)	-25 - 60 °C
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	0 - 90 %
Battery type	AA
Power source	Battery
Battery voltage	1.5 V
Battery technology	Alkaline
Number of batteries supported	4
Product type	Digital multimeter
Product color	Grey, Red, Yellow
DC current range	0 - 0.024 A
DC voltage range	0 - 30 V
Placement supported	Handheld multimeter
Basic accuracy (DC current)	0.2% + 2 counts

Weight and Dimensions

Depth	44 mm
Width	70 mm
Height	246 mm
Weight	410 g
