Digital Multimeter
How to Make Measurements
11
How to Make Measurements
The following sections describe how to make
measurements with the Meter.
AC and DC Voltage Measurements
The Meter features true-rms readings, which are accurate
for distorted sine waves and other waveforms (with no dc
offset) such as square waves, triangle waves, and
staircase waves.
The Meter’s voltage ranges are 600.0 mV, 6.000 V,
60.00 V, 600.0 V, and 1000 V. The select the 600.0 mV
dc range, turn the rotary switch to mV.
Refer to Figure 2 to measure ac or dc voltage.
Switch Box
V
V
mV
gaq102.emf

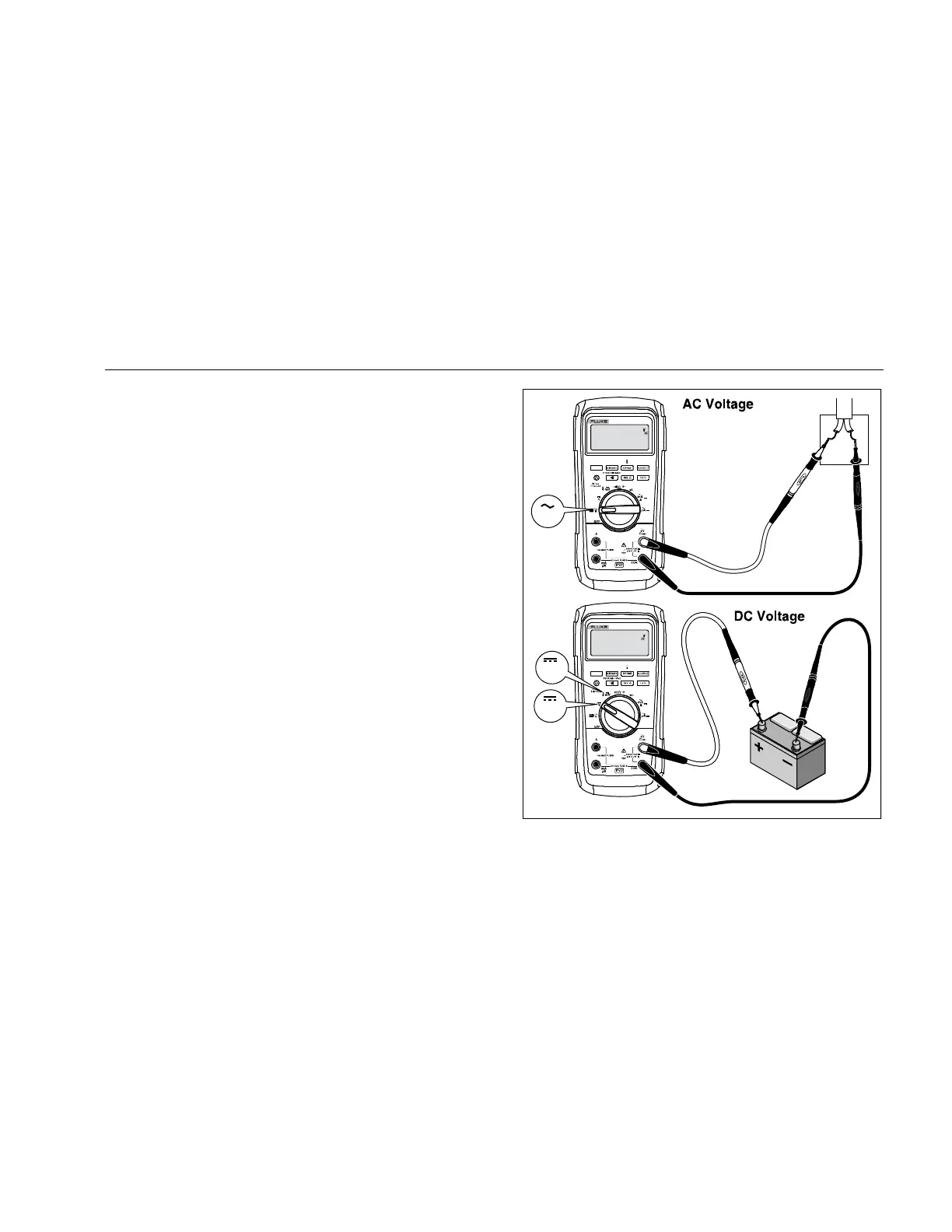

Figure 2. AC and DC Voltage Measurements
