Fluke 8846A User Manual

A-1
Appendix A
2X4 Test Leads
Introduction
The optional Fluke TL2X4W test leads simplify making 4-wire ohms measurements by
integrating the HI+HI Sense and LO+LO Sense test leads into one cable. The Meter’s
Input HI and LO jacks consist of two contacts. One contact is connected to HI or LO
input circuits and the other contact is connected to the Sense input circuits. Like the input
jacks, the 2x4 test lead also has two contacts that align with the input jack contacts to
provide a four wire connection.
Ground tab
caw061.eps

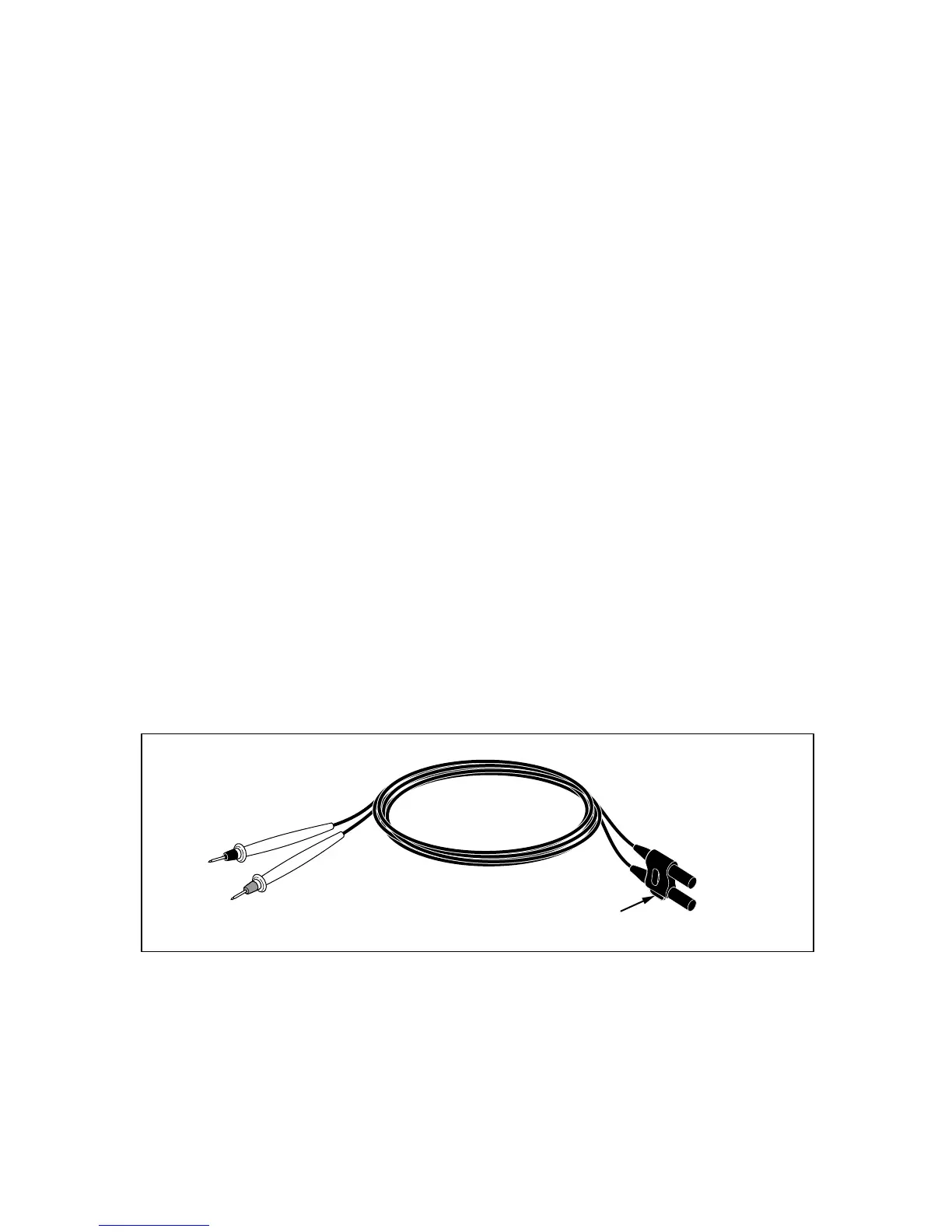

Figure A-1. 2X4 Wire Test Leads
XW Warning
To avoid electric shock and possible damage to the Meter, use
the 2X4 Wire test leads as specified in the instruction sheet that
comes with the probes. Inspect the test leads before use. Do
not use them if insulation is damaged or metal is exposed.
Check the test leads for continuity. Replace damaged test leads
before using the Meter.

Fluke 8846A Specifications

General

Frequency Range	3 Hz to 300 kHz
DC Voltage Range	100 mV to 1000 V
AC Voltage Range	100 mV to 750 V
Resistance Range	10 Ω to 1 GΩ
Continuity	Yes
Diode Test	Yes
Temperature Measurement	Yes
Display	5.5 digit
Connectivity	USB, RS-232, GPIB
DC Current Range	100 µA to 10 A
AC Current Range	100 µA to 10 A
Frequency Accuracy	0.01 %
Capacitance Range	1 nF to 100 µF
Display Type	VFD
Power Supply	100 V to 240 V
AC Voltage Accuracy	±(0.06% + 0.03% of reading)
Resistance Accuracy	±(0.01% + 0.001% of reading)
