Fluke 9062 User Manual

9062
Users Manual
8
bby01f.eps

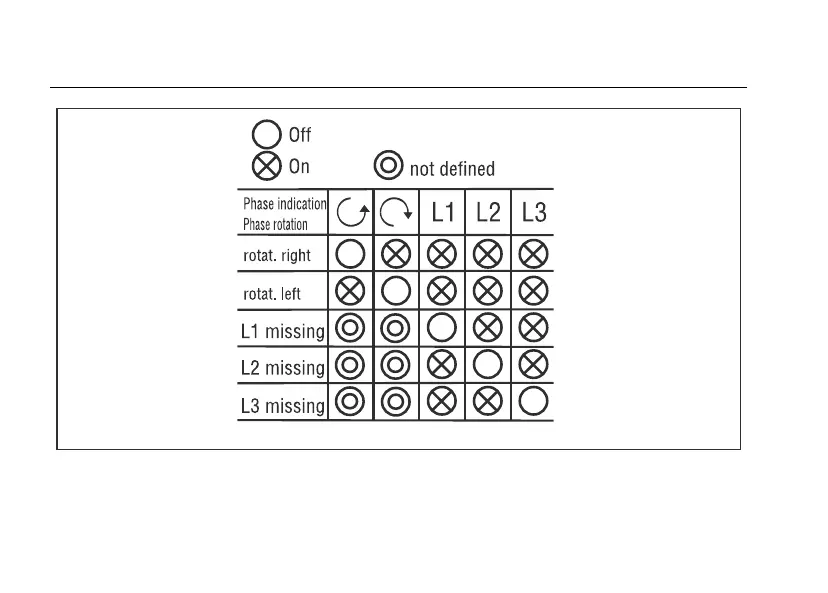

Figure 2. Phase Indication Table (shown on the rear of the 9062)

Fluke 9062 Specifications

General

Housing color	Black, Yellow
Frequency range	2 - 400 Hz
3 phase indication	Yes
Operating altitude	0 - 2000 m
Phase display range	120 - 400 V
Operating voltage (max)	400 V
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	15 - 80 %
International Protection (IP) code	IP40
Battery voltage	9 V
Number of batteries supported	1

Weight and Dimensions

Depth	27 mm
Width	61 mm
Height	124 mm
