Fluke CableAnalyzer DSX-602 - Plot Screen for a Frequency-Domain Test

DSX-602 CableAnalyzer
Users Manual
48
BA71.EPS

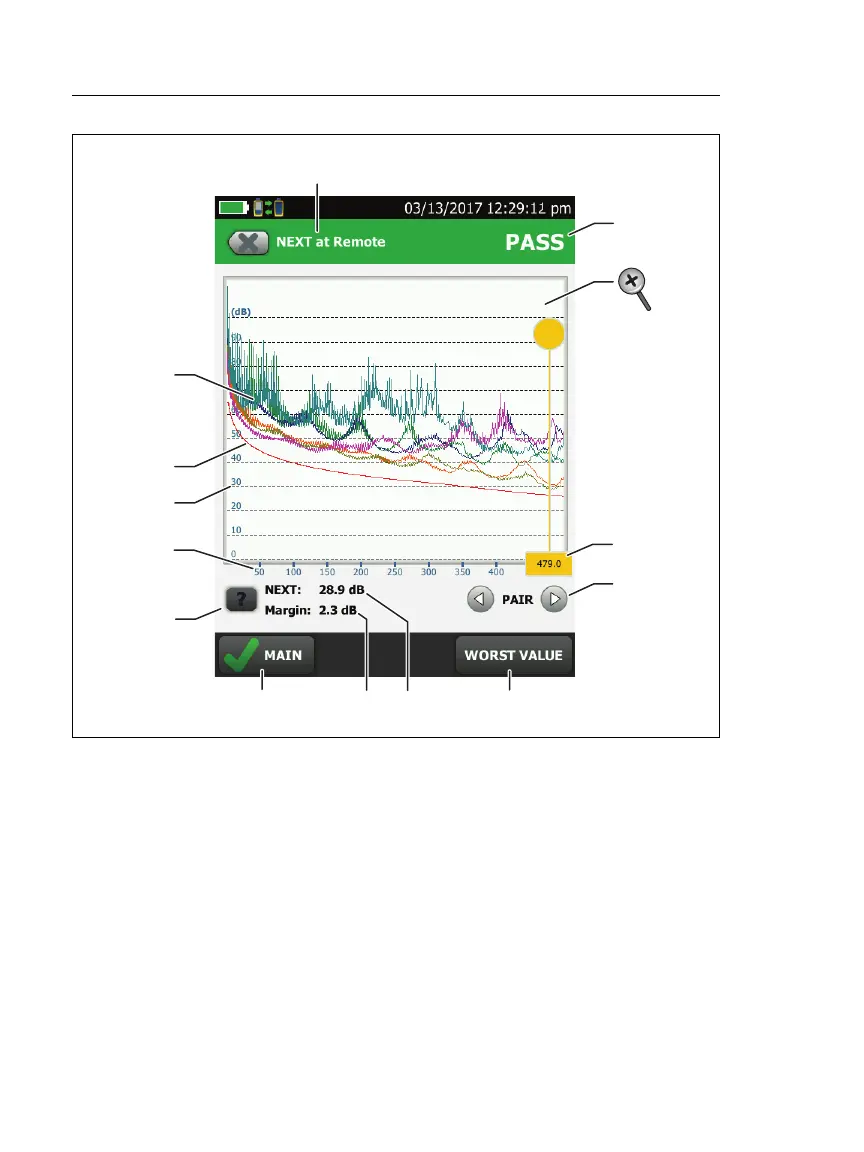

Figure 19. Plot Screen for a Frequency-Domain Test
 The location of the measurements. To switch between results
for the main and remote, tap REMOTE or MAIN (
).
 Measured values for the wire pairs.
 The limit line (in red) for the measurement.
Note
If the limit line is black, the tester does not
evaluate the measurement at those frequencies
because a dB rule applies. See the Technical
Reference Handbook.
