DSP-4000 Series
Users Manual
2-24
Permanent Link Interface Adapters (DSP-4000PL/4300)
Caution
To avoid damaging the adapter and to ensure maximum
accuracy of test results, never pinch, kink, or crush the
adapter’s cable. Never use the cable as a handle to pick
up the DSP test tool. Follow the handling guidelines given
in Figure 2-11.
For the best accuracy, keep the adapter’s cable as straight
as possible during testing.
To avoid latent or immediate damage due to electrostatic
discharge:
• Before handling a module or an adapter with no
module attached, ground yourself when possible by
touching a grounded, conductive surface.
• Always remove the adapter from the DSP test tool
before changing the personality module.
• Always keep a personality module attached to the
adapter cable.
• Always store the personality module in its original,
static protection bag when not in use.
4" (10 cm)
minimum bend
Storage
360˚ twist maximum
oy85f.eps

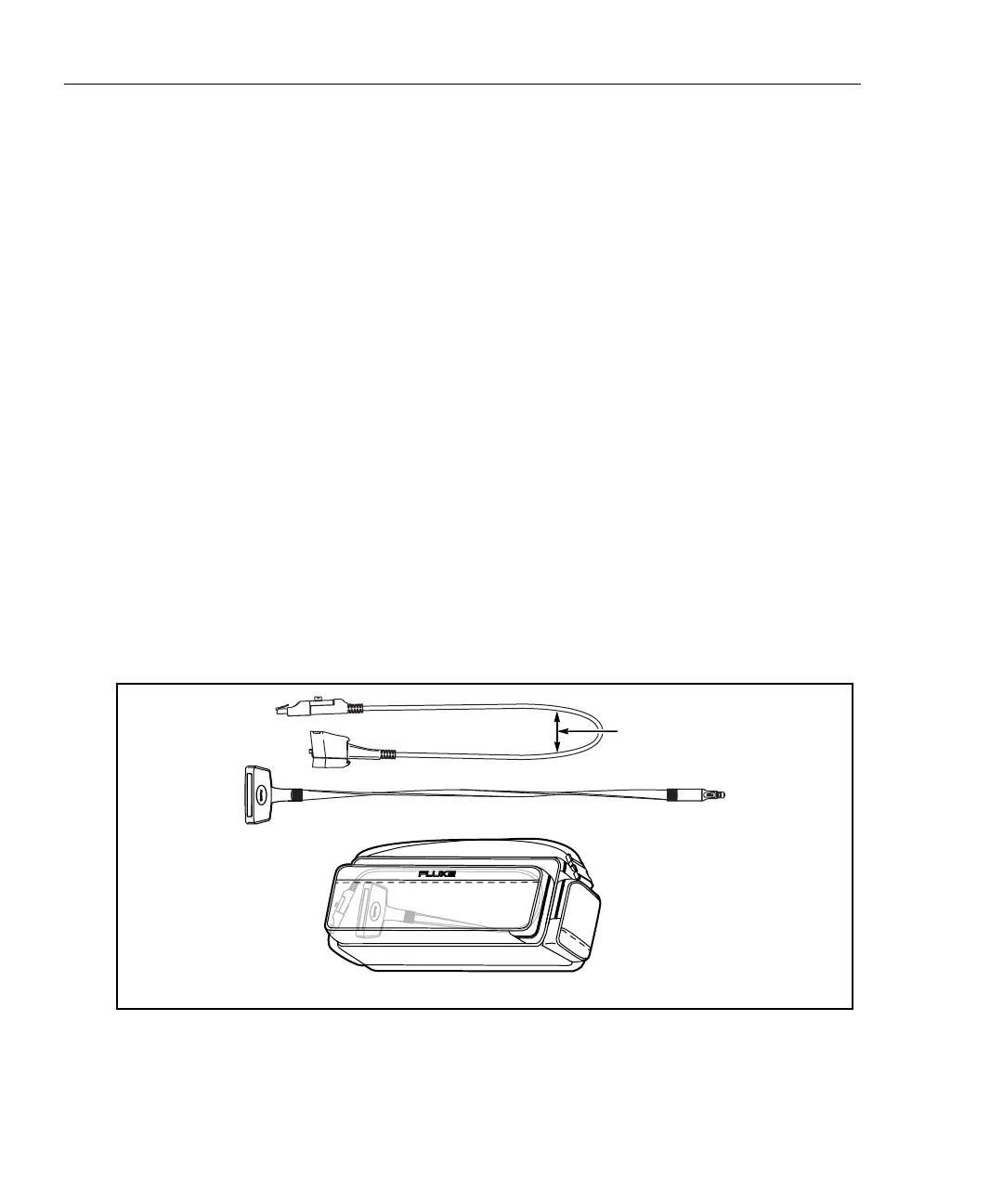

Figure 2-11. Permanent Link Adapter Handling Guidelines
