Configuring a Channel Off
Perform the procedure in Figure 2-10 to configure a channel for off (no measurement).
In preparation, the instrument must be in the inactive mode (not scanning or monitoring)
and the desired channel must be selected (see Figure 2-3). To exit at any time (changes
not saved), press the C key. When a channel is OFF, it cannot be scanned or
monitored. When a channel function is changed, alarm limits and scaling (Mx+B) for
that channel are changed to their default conditions.
FUNC
ENTER
SET FUNC
OFF
°F [°C]*
Hz
Ω
VAC
V DC
Typical
Required

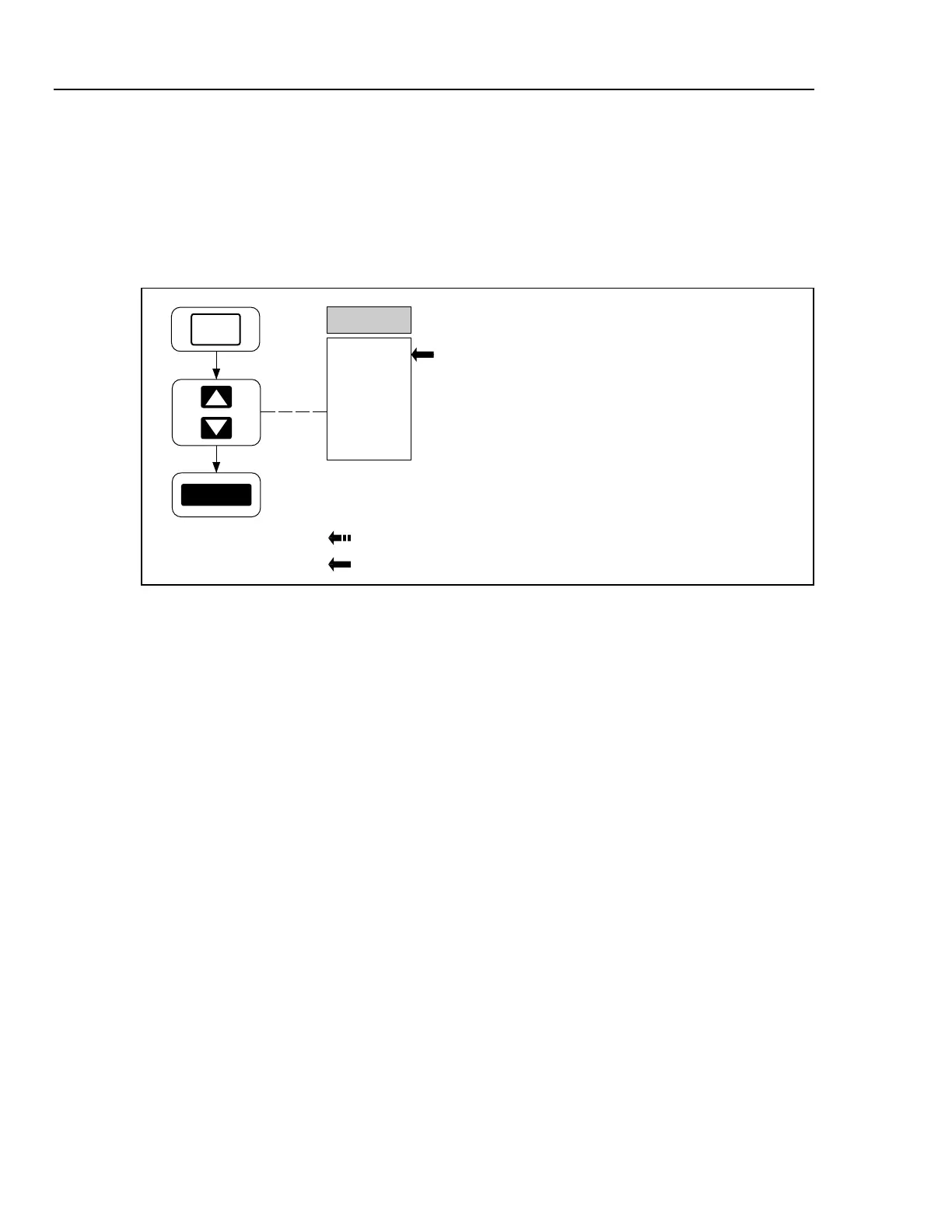

Selecting the OFF Mode. Press the FUNC key
to access the SET FUNC (Set Function) menu.
Press the up/down arrow keys until OFF is
displayed, then press the ENTER key.
* Depends on
temperature scale.
op22f.eps
Figure 2-10. Configuring a Channel Off
Setting Operating Conditions
After the channels are configured for the desired measurement parameter, set the
following operating conditions to support the intended instrument function:
• Setting the Scan Interval [Default - 0:00:00 (Continuous)] (Figure 2-11)
• Setting the Measurement Rate [Default - Slow] (Figure 2-12)
• Setting the Alarms [Default - Alarms off] (Figures 2-13)
• Setting the Mx+B Scaling [Default - 1x+0 (no scaling)] (Figure 2-14)
The instrument default settings for each of the above are shown.
