Set Up the Tester

PoE Configuration

Select Tools > PoE Configuration.

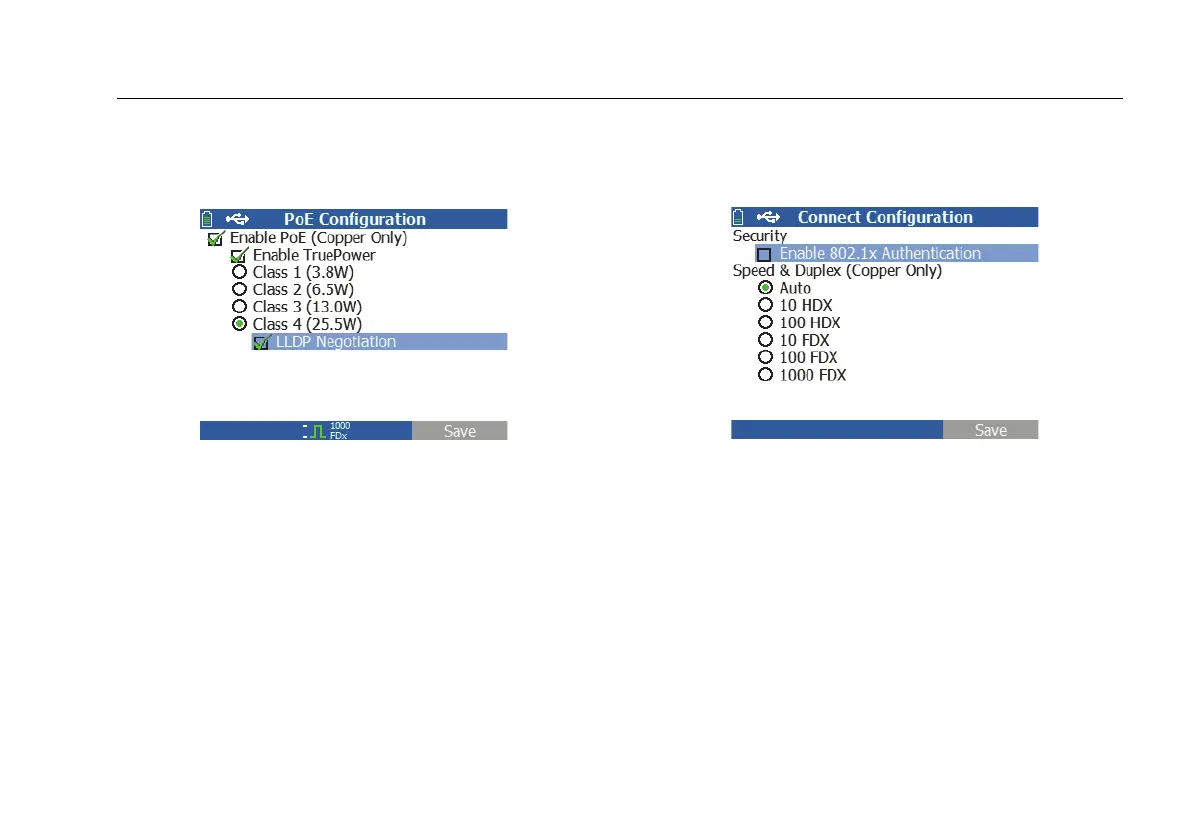

Figure 8. PoE Configuration Screen

By default, PoE is disabled. This screen allows you to enable/

disable PoE dete

ction, Enable TruePower

, and set the Class

for detection. If you enable PoE and select Class 4 (25.5W),

you can also enable LLDP Negotiation so that PoE is only

reported if that criteria is met.

PoE TruePower

is only available on the LR-AT 2000 model.

TruePower

puts a load on the PoE device and gives an

accurate measurement on whether the device supports the

Class selected.

Connect Configuration

Select Tools > Connect Configuration.


Figure 9. Connect Configuration Screen

This screen allows you to enable 802.1x Authentication and

set the speed/Duplex.

For 802.1x Authentication, if a certificate is required, you

must transfer it from your PC using the LinkRunner

Manager PC application provided with LR-AT. Only one

certificate can be installed on a LR-AT at a time.

For Speed & Duplex, Auto is the default and recommended

configuration. 10 HDX is 10 Mbps half duplex, 1000 FDX is

1000 Mbps full duplex.
