LinkRunner AT 1000/2000 Network Auto-Tester
Users Manual
12
VLAN/MAC Configuration
Select Tools > VLAN/MAC Configuration.

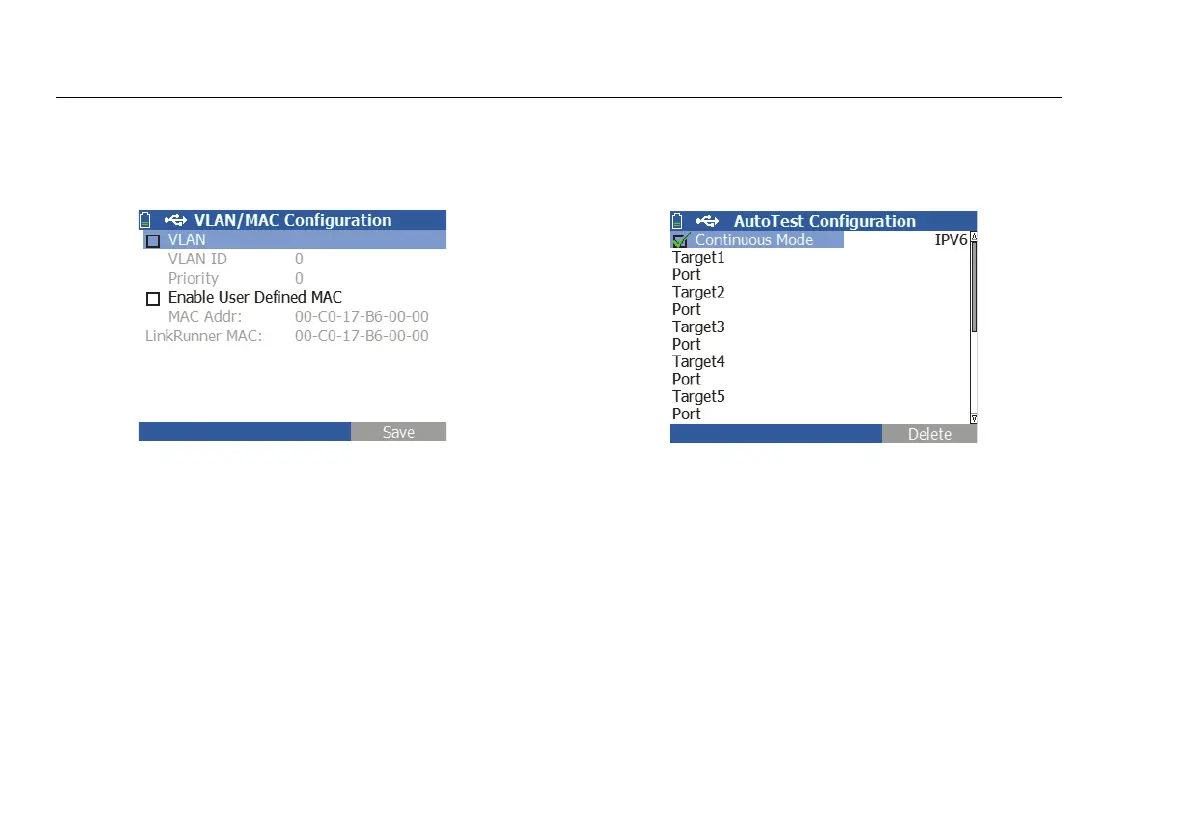

Figure 6. VLAN/MAC Configuration Screen
This screen allows you to enable and enter the VLAN IP and
its Priority level. By un-checking the VLAN check box, the
VLAN capability is disabled.
This screen also allows you to enable and enter a user
defined MAC address. By un-checking the Enable User
Defined MAC check box, the LR-AT reverts back to the
factory default MAC address.
AutoTest Configuration
Select Tools > AutoTest Configuration.
Figure 7. AutoTest Configuration Screen
This screen allows you to enter up to ten key device
addresses
(Targets) to test connectivity. You may enter an IP
address, URL, or DNS name. If no port is specified, AutoTest
will perform an ICMP Ping test to that address. If a port is
specified, AutoTest will perform a TCP Connectivity test
(SYN/ACK).
The Continuous Mode check box allows the test to run
continuously (checked) or one time (un-checked). When
you exit the AutoTest screen, the test is stopped.
