Workgroup Analyzer
Acccessing the Analyzer through the User Interface Software
13
Front Page Screen
xx

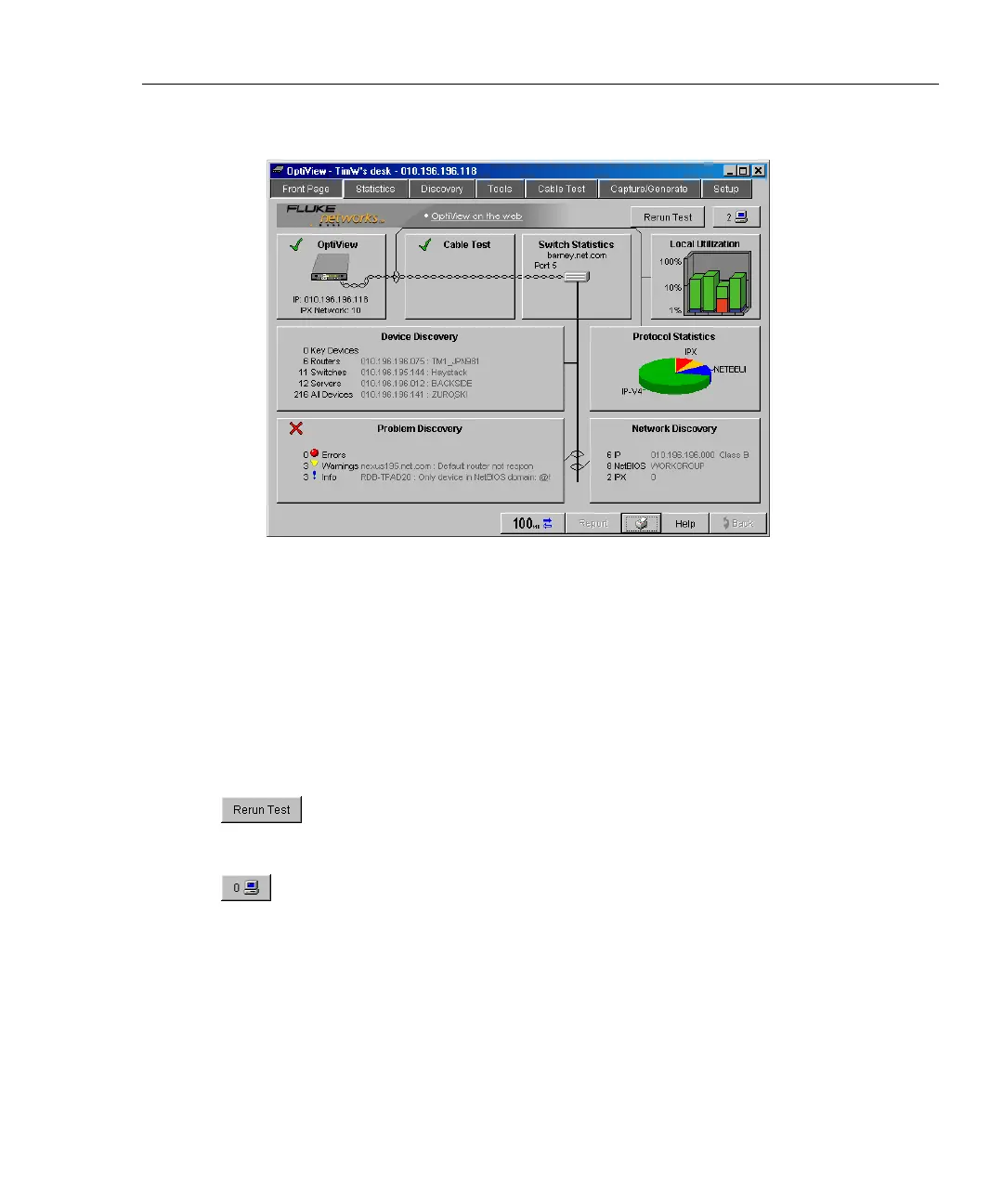

Figure 4. Front Page Screen
The Front Page screen is an overview and starting point to monitor and test your
network. This screen summarizes the current network by presenting the closest
switch (Switch Statistics button), any network problems (Problem Discovery
button), all connected devices (Device Discovery button) on the current broadcast
domain, and statistics (Protocol and Utilization Statistics buttons). The health
(e.g., state, condition, etc.) of the current network is discovered and problems are
displayed if they exist.
Rerun Test clears all statistics, discovery information, and
reinitiates network device discovery. Cable Test is not rerun.
Cable Test is rerun when a cable change is detected.
Remote Sessions displays the number of remote users connected
to the analyzer. See the Help Front Page topic for a complete
discription.
