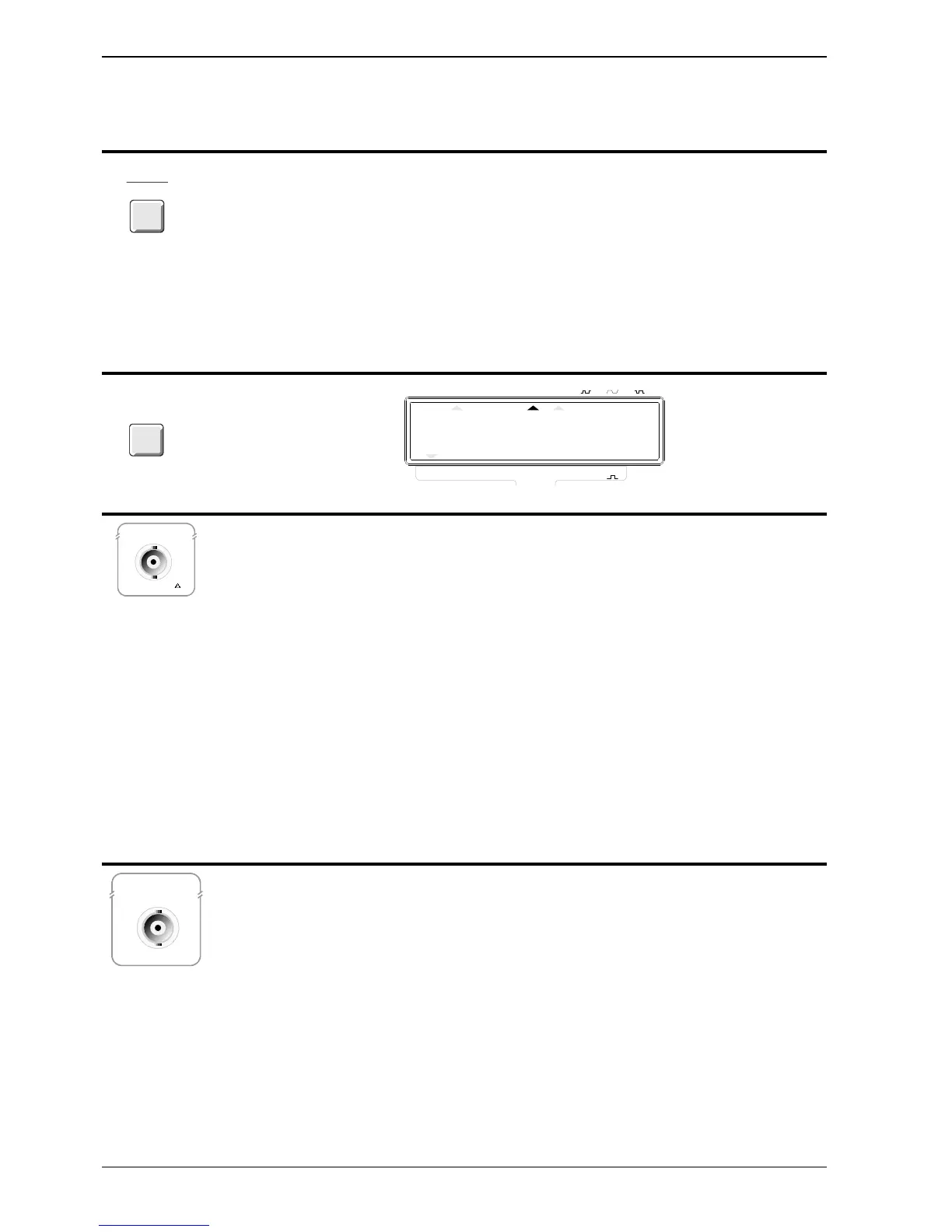

CONTROL OPERATING THE
CONTROL
DISPLAY GPIB-CODE
RESET/LOCAL, a short
press is enough for
Reset. When the remote
indicator is on, a press
will cause the counter to
switch back to LOCAL,
i.e. control from the front
panel.
TOTALIZE
START/STOP, one
press starts totalizing,
the next press stops.
X starts a new
measurement.
GATE OPEN
starts and
GATE CLOSE
stops Totalize
MAN.
Switches ’on’ or ’off’
DISPL HOLD when de-
pressed.
Not bus con-
trollable, but
Free-run OFF
will give a
similar function;
See GPIB-bus
operation.
Connect the signal to
INPUT-A via a BNC-
cable.
Connect the signal to
INPUT-B via a BNC-
cable.
LOCAL
RESET
START/STOP
TOTALIZE A
HOLD
DISPL
A
0
STORE
TRIGGER LEVEL A
HOLD
DISPLMEASURING TIME
10s1s0.2sSINGLE
REF
EXT
A
WIDTH
A
TOT
A
PER
A
RPM
A-A
0
FREQ
A/A
0
FREQ
B
FREQ
A
FREQ
FUNCTION
AUTO
kHz
ums
GATE
0.
M
10Hz-160MHz
MAX 350Vp
1M
Ω
30pF
INPUT A
OPTION
70MHz - 1.3GHz
MAX 12Vrms
50 Ω
INPUT B
