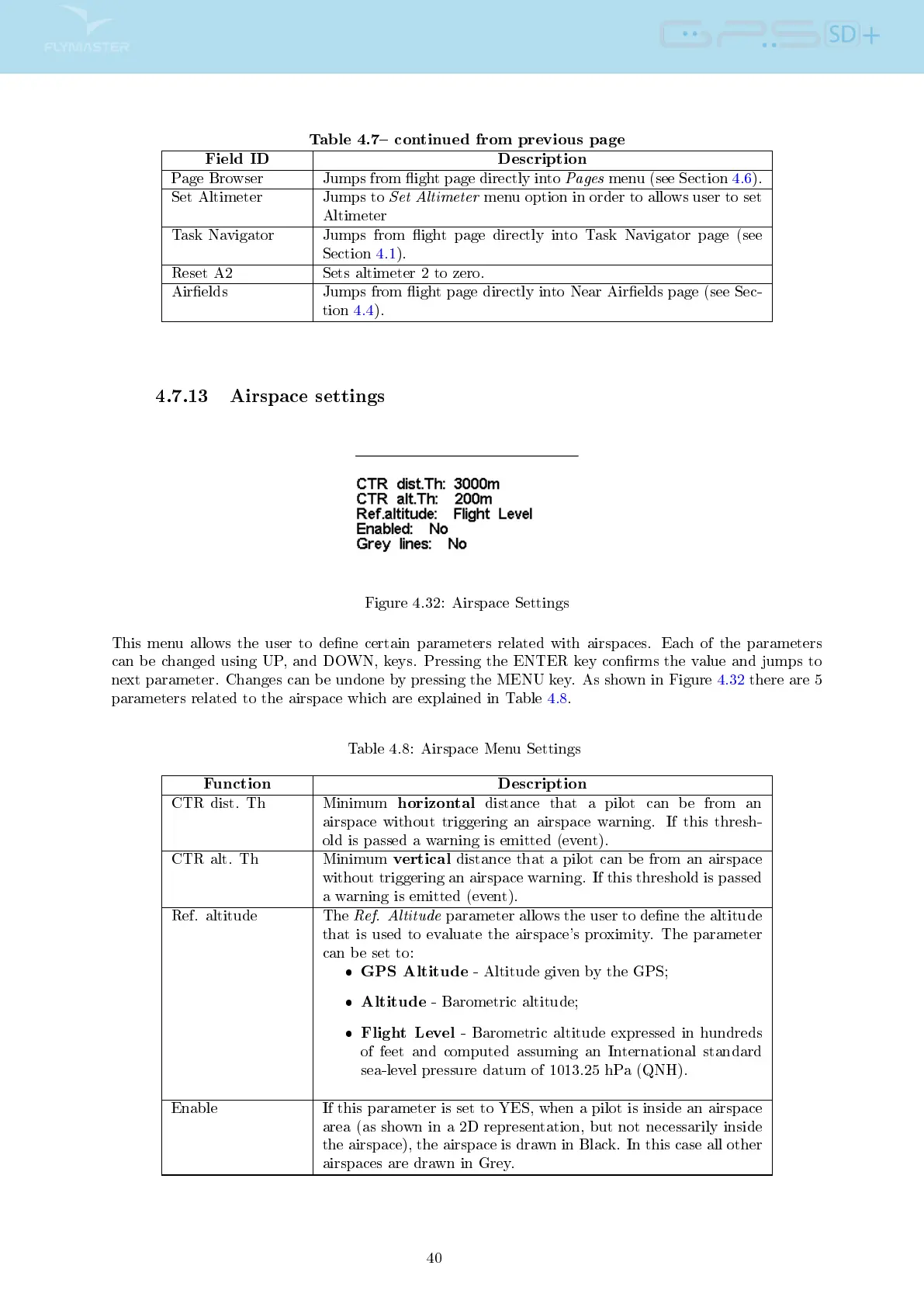

Flymaster SD+ - Page 41

Table 4.7 continued from previous page
Field ID Description
Page Browser Jumps from ight page directly into Pages menu (see Section 4.6).
Set Altimeter Jumps to Set Altimeter menu option in order to allows user to set
Altimeter
Task Navigator Jumps from ight page directly into Task Navigator page (see
Section 4.1).
Reset A2 Sets altimeter 2 to zero.
Airelds Jumps from ight page directly into Near Airelds page (see Sec-
tion 4.4).
4.7.13 Airspace settings
Figure 4.32: Airspace Settings
This menu allows the user to dene certain parameters related with airspaces. Each of the parameters
can be changed using UP, and DOWN, keys. Pressing the ENTER key conrms the value and jumps to
next parameter. Changes can be undone by pressing the MENU key. As shown in Figure 4.32 there are 5
parameters related to the airspace which are explained in Table 4.8.
Table 4.8: Airspace Menu Settings
Function Description
CTR dist. Th Minimum horizontal distance that a pilot can be from an
airspace without triggering an airspace warning. If this thresh-
old is passed a warning is emitted (event).
CTR alt. Th Minimum vertical distance that a pilot can be from an airspace
without triggering an airspace warning. If this threshold is passed
a warning is emitted (event).
Ref. altitude The Ref. Altitude parameter allows the user to dene the altitude
that is used to evaluate the airspace's proximity. The parameter
can be set to:
 GPS Altitude - Altitude given by the GPS;
 Altitude - Barometric altitude;
 Flight Level - Barometric altitude expressed in hundreds
of feet and computed assuming an International standard
sea-level pressure datum of 1013.25 hPa (QNH).
Enable If this parameter is set to YES, when a pilot is inside an airspace
area (as shown in a 2D representation, but not necessarily inside
the airspace), the airspace is drawn in Black. In this case all other
airspaces are drawn in Grey.
40
