FlyTech POS 360 Series - 5 System Disassembly; Replacing SATA HDD

29
5 System Disassembly

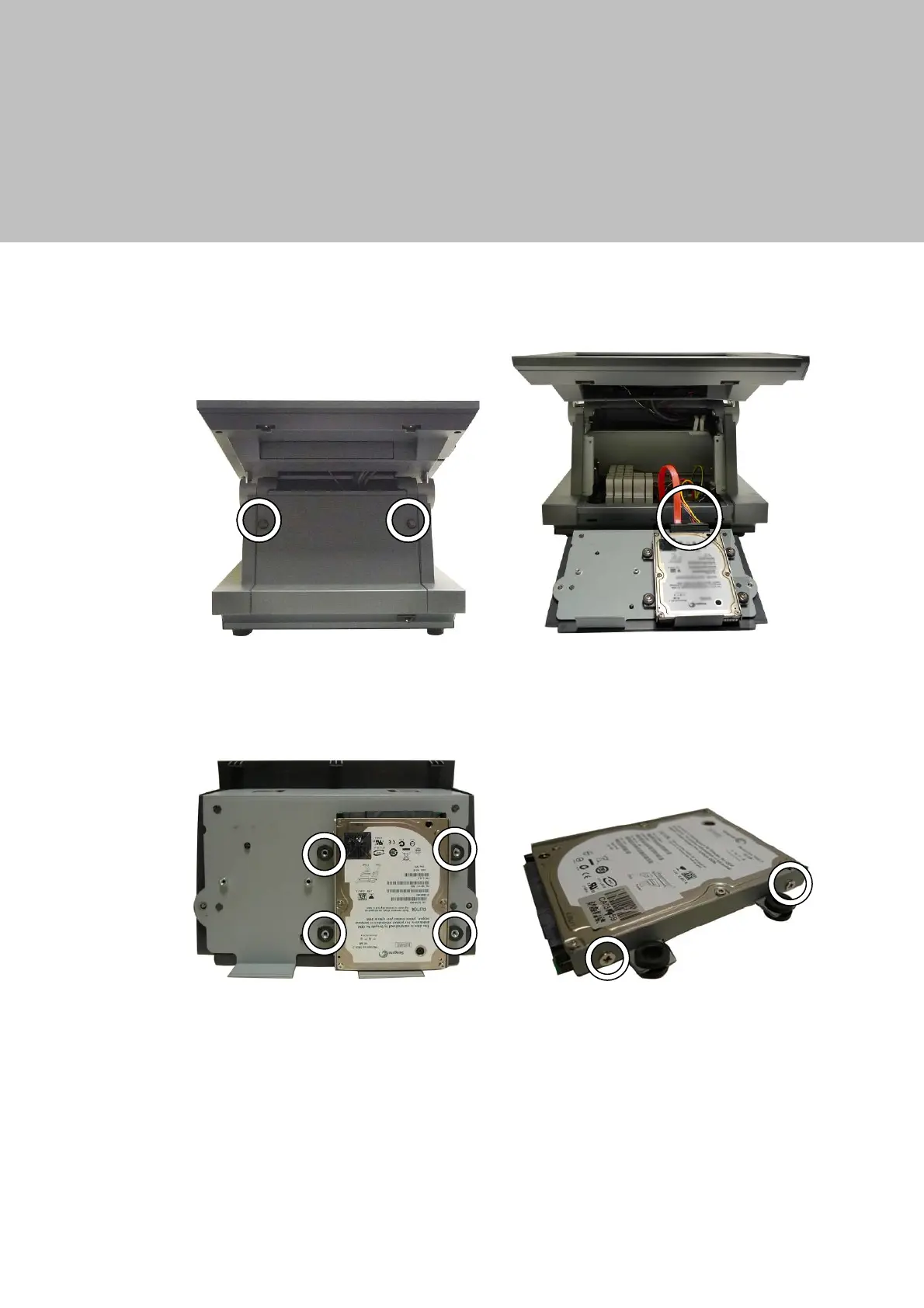

5-1 Replacing SATA HDD
a. Loosen the thumb screws (2) to remove the Motherboard cover.
b. Disconnect the SATA HDD Cable.
c. Remove the screws (4) and detach the SATA HDD from the sheet metal
chassis.
d. Loosen the screws (4) on the both sides of the HDD metal bracket and
replace the SATA HDD afterwards.
