FlyTech POS 360 Series - Cash Drawer Installation

27
4-6 Cash Drawer Installation
You can install a cash drawer through the cash drawer port. Please verify the
pin assignment before installation.

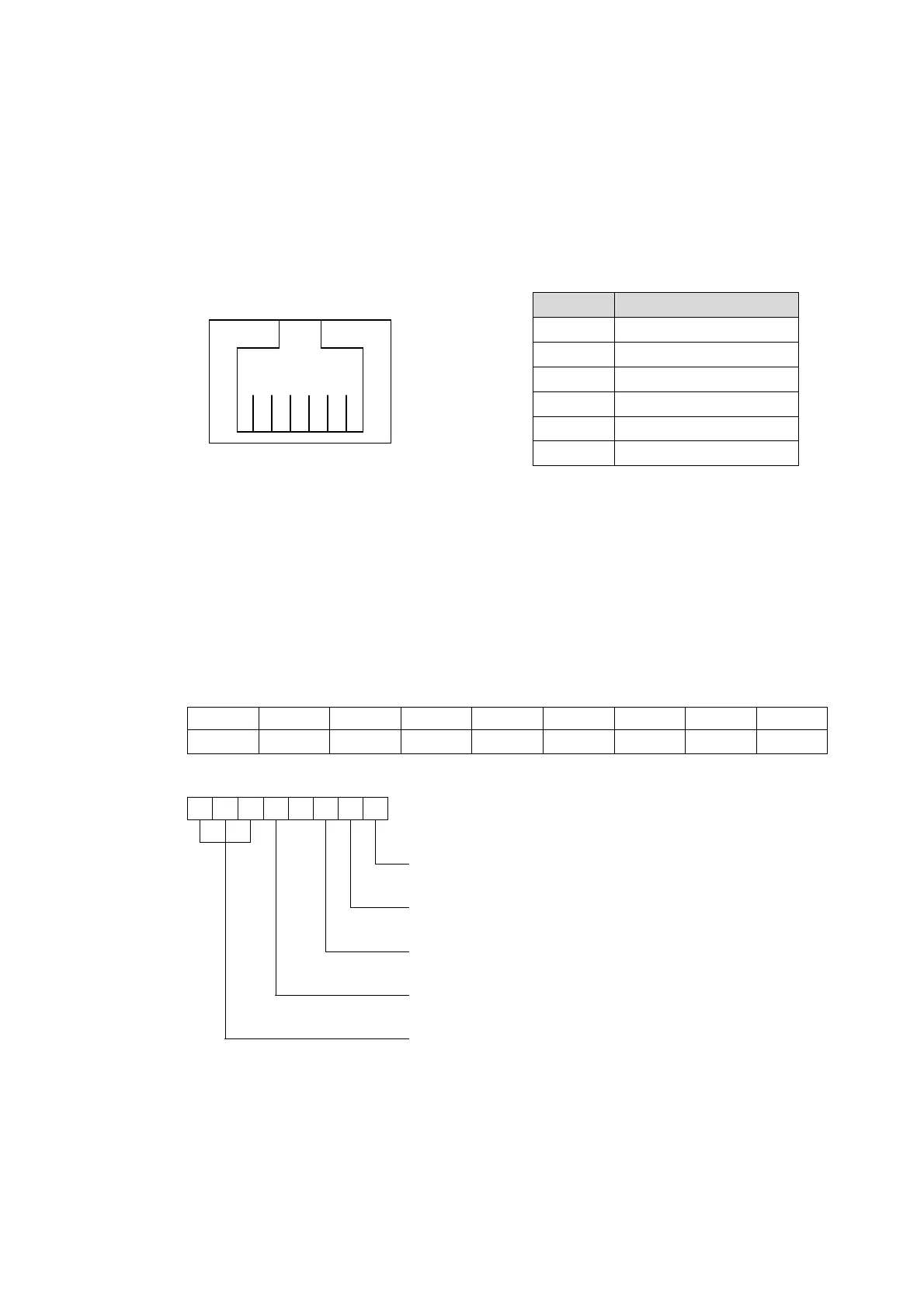

4-6-1 Cash Drawer Pin Assignment
4-6-2 Cash Drawer Controller Register
The Cash Drawer Controller use one I/O addresses to control the Cash Drawer.
Register Location:
4B8h
Attribute:
Read / Write
Size:
8bit
BIT
BIT7 BIT6 BIT5 BIT4 BIT3 BIT2 BIT1 BIT0
Attribute
Reserved Reserved Reserved
Read
Reserved Write Write
Reserved
7 6 5 4 3 2 1 0
X X X X X
Reserved
Cash Drawer “DOUT bit1” pin output control
Cash Drawer “DOUT bit0” pin output control
Cash Drawer “DIN bit0” pin input status
Reserved
Bit 7: Reserved.
Bit 6: Reserved.
Bit 5: Reserved.
Bit 4: Cash Drawer “DIN bit0” pin input status.
= 1: the Cash Drawer closed or no Cash Drawer.
= 0: the Cash Drawer opened.
6 1
Pin Signal
1 GND
2 DOUT bit0
3 DIN bit0
4 12V / 19V
5 DOUT bit1
6 GND
