41

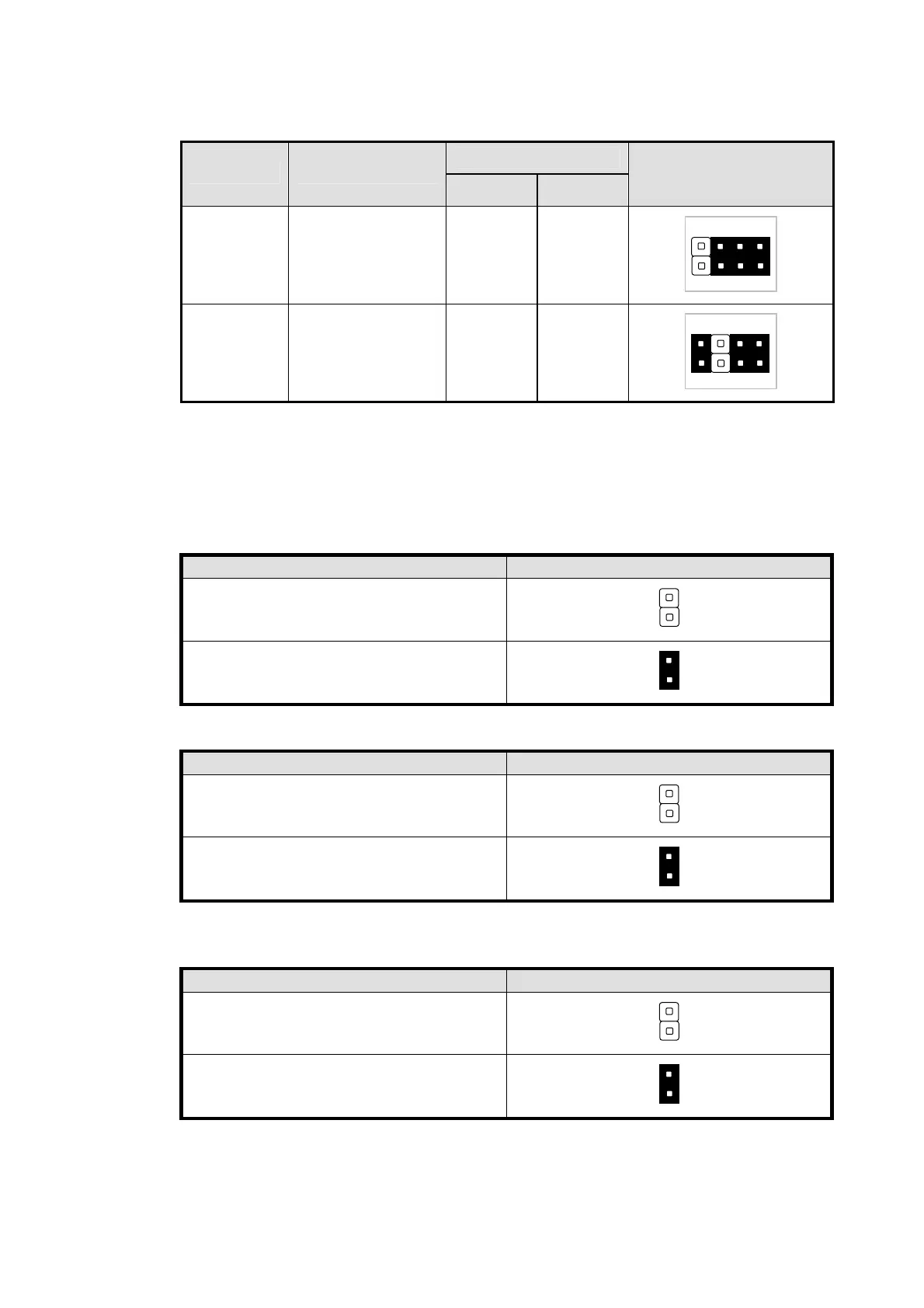

LCD ID Setting
LVDS
Panel # Resolution
Bits Channel
JP7
(1-2) (3-4) (5-6) (7-8)
1 1024 x 768 24 Single
2 1024 x 768 24 Single
Note:
Panel 1 Jumper Setting is for SVA-NEC panel
Panel 2 Jumper Setting is for other LCD Panel.
Power Mode Setting
Function JP6 (1-2)
◎ATX Power
AT Power
CMOS Operation Mode
Function JP8 (1-2)
◎CMOS Normal
CMOS Reset
USB Path Setting (do not change)
Function JP14 (1-2)
To Docking
◎To Motherboard
1 3 5 7
2 4 6 8
1 3 5 7
2 4 6 8
1 3 5 7
