FIREFRONT
This fire is supplied with a particular style of firefront. Use of the firefront will ensure an adequate airflow under
the firebed for the correct functioning of this appliance.
Compliance with safety standards cannot be guaranteed if another style of front is used.
CLEARANCES TTO CCOMBUSTIBLES
A combustible shelf may be fixed to the wall above the fire, providing that it complies with the dimensions given
below.
A non-combustible shelf may be fitted to within 10mm of the top edge of the fireframe.
Combustible materials, such as wood, may be fitted to within 100mm (4in) of either side of the frame of the
appliance, providing the forward projection does not exceed 100mm (4in).
Any combustible side walls must be at least 500mm to the side of the radiant heat source.
As with all heating appliances, any decorations, soft furnishings, and wall coverings (i.e. flock, blown vinyl and
embossed paper) positioned too close to the appliance may discolour or scorch.
VENTILATION
No ppurposse pprovided vventilation iiss nnormally rrequired ffor tthiss aappliancce.
The requirements of other appliances
operating in the same space or room, and the results of a spillage test must be taken into consideration when
assessing ventilation requirements, this will have been carried out by your CORGI registered installer.
For Republic of Ireland, ventilation may be required, see IS 813, ICP3, IS 327, and any other rules in force.

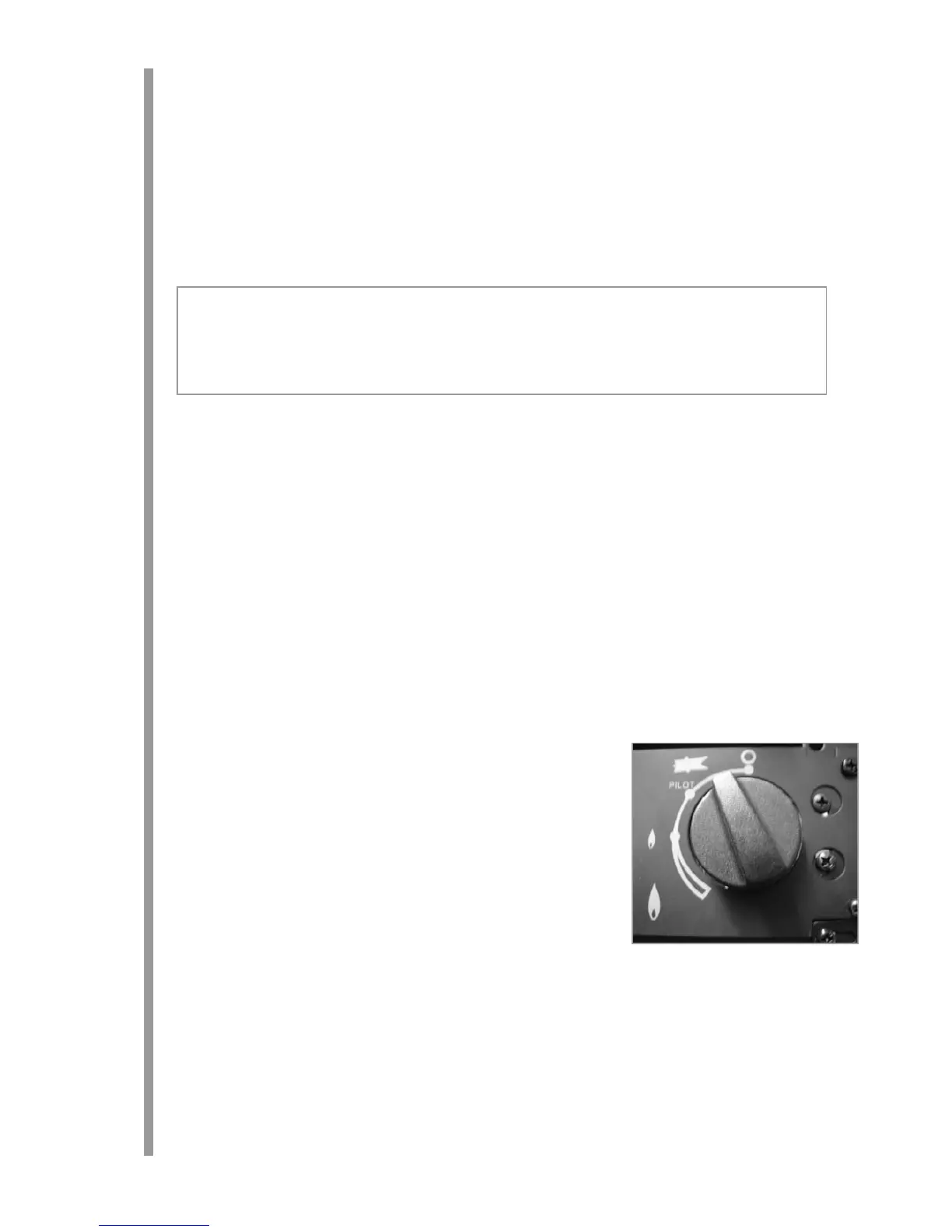

OPERATING IINSTRUCTIONS
Turn on the power supply and momentarily press the ON switch on the
control box. The fan should operate with the warning light illuminated.
After a very short time the fan will run at normal speed and a click may be
heard as the safety solenoid opens. The warning light should extinguish.
The pilot is visible through the underside of the left hand front coal strip.
Push in and turn the control knob to the SPARK position, and hold there
for a few seconds. Continue turning anti-clockwise through the spark
click to the PILOT light position, ensuring the pilot has lit. If not, return the
knob clockwise, and repeat.
When the pilot lights after the spark, keep the knob depressed for approximately ten seconds. Now release the
knob and the pilot should stay alight. If not, repeat ignition. If the pilot is extinguished
duringg uusse
, wait three
minutes before repeating the ignition procedure. To achieve the HIGH setting, push the control knob in slightly
and continue turning anti-clockwise to the high position. The main burner should light after a few seconds. To
decrease the setting to LOW, turn the control knob clockwise to the low setting. To turn to the PILOT position
from the HIGH or LOW positions, press the control knob in, and return to the pilot position and release.
To turn the fire OFF, keep the knob pressed in, return to the off position and release. Press the OFF button on the
control box to switch off the fan.
2
2.0
3.0
4.0
5.0
Maximum ddepth oof sshelf MMinimum ddisstancce ffrom ffinisshed hhearth
ssurfacce tto uundersside oof sshelf
100mm (4in) 745mm (29 1/4 in)
150mm (6in) 845mm (33 1/4 in)
203mm (8in) 895mm (35 1/4 in)
